Ahuja APZ-504LD Speaker Loop Detector

Ahuja APZ-504LD Speaker Loop Detector: Real-time Fault Detection for 100V/70V Lines

In critical public address (PA) systems, whether for emergency broadcasts, crucial announcements, or background music, silent speakers or distorted audio due to circuit faults can have serious consequences. Detecting and resolving these issues quickly is paramount. The Ahuja APZ-504LD Speaker Loop Detector is an indispensable tool designed to provide real-time, comprehensive monitoring of your speaker lines. This advanced unit allows for easy detection of faults like open circuits, short circuits, impedance mismatches, and overloading across up to 10 speaker lines, ensuring the continuous, reliable operation of your 100V or 70V line PA system.

Real-time Fault Detection for Uninterrupted Audio

The primary function of the APZ-504LD is to proactively identify and alert you to issues within your speaker circuits, preventing downtime and ensuring your messages are always heard.

• Key Benefits:

  • Instant Fault Detection: Quickly identifies critical speaker line faults such as open circuits, short circuits, and overloading.
  • Impedance Monitoring: Detects incorrect speaker line impedance, crucial for optimizing amplifier performance and preventing damage.
  • Proactive Maintenance: Enables technicians to address issues before they cause system failures, ensuring uninterrupted audio.

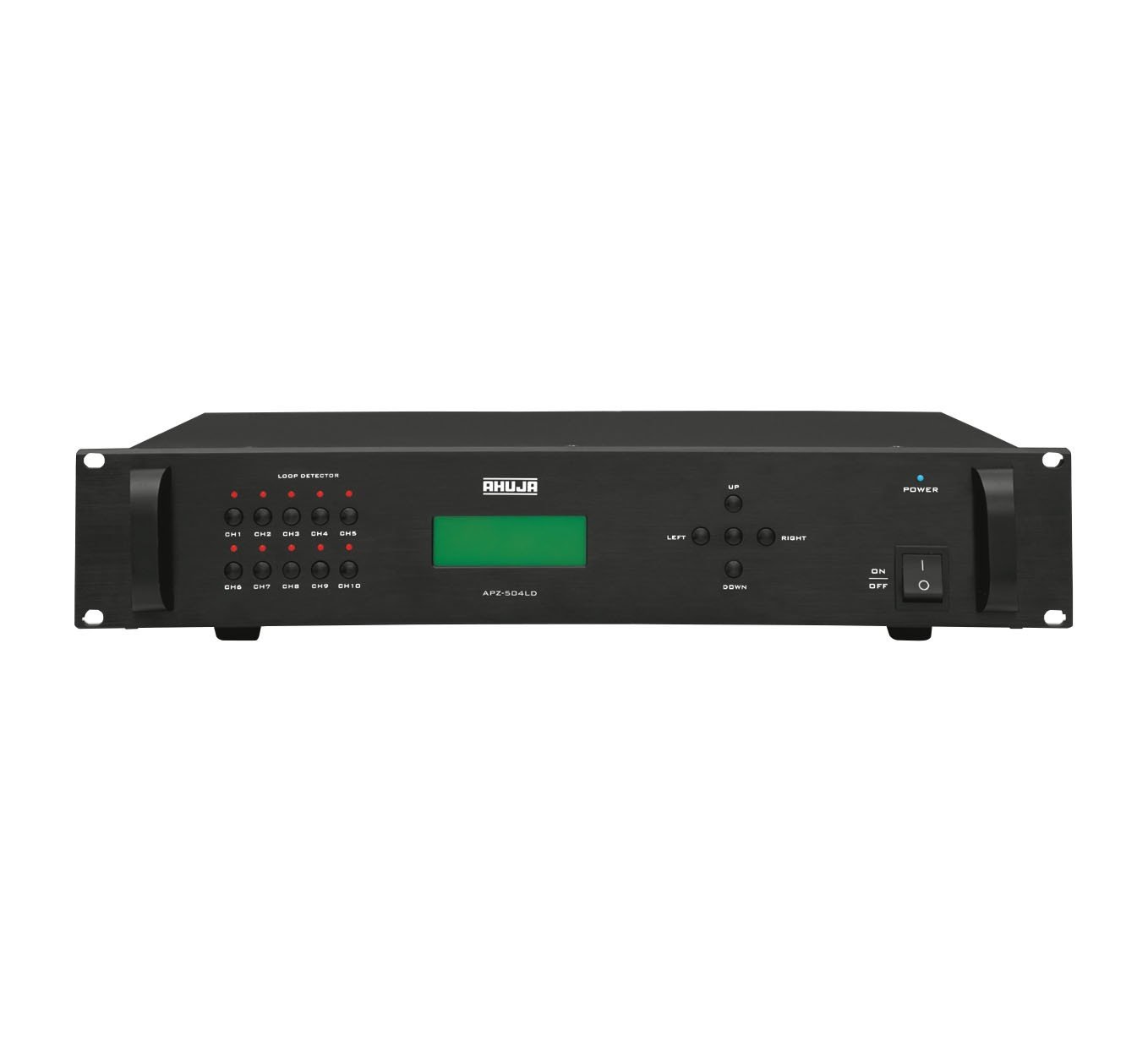

  • Clear Visual Indicators: Features dedicated LEDs (Loop Detector) for each channel (CH1-CH10) to provide immediate visual feedback on the status of each speaker line.

Versatile Compatibility with 100V and 70V Line Systems

The APZ-504LD is engineered to be compatible with the most common constant voltage PA systems.

• Suitable for 100V Line Speaker Systems: Ideal for large installations where long cable runs and multiple speakers are common.
• Suitable for 70V Line Speaker Systems: Also compatible with 70V constant voltage systems, widely used in various commercial applications.
• Benefit to You: Provides a universal solution for fault detection across different standard PA system configurations, making it a flexible addition to your audio infrastructure.

Comprehensive Monitoring for Up to 10 Speaker Lines

The unit’s capacity to monitor multiple lines makes it an efficient and comprehensive fault-detection solution for mid-to-large scale PA systems.

• Monitors Up to 10 Speaker Lines: Provides dedicated monitoring for 10 independent speaker zones or circuits from a single unit.

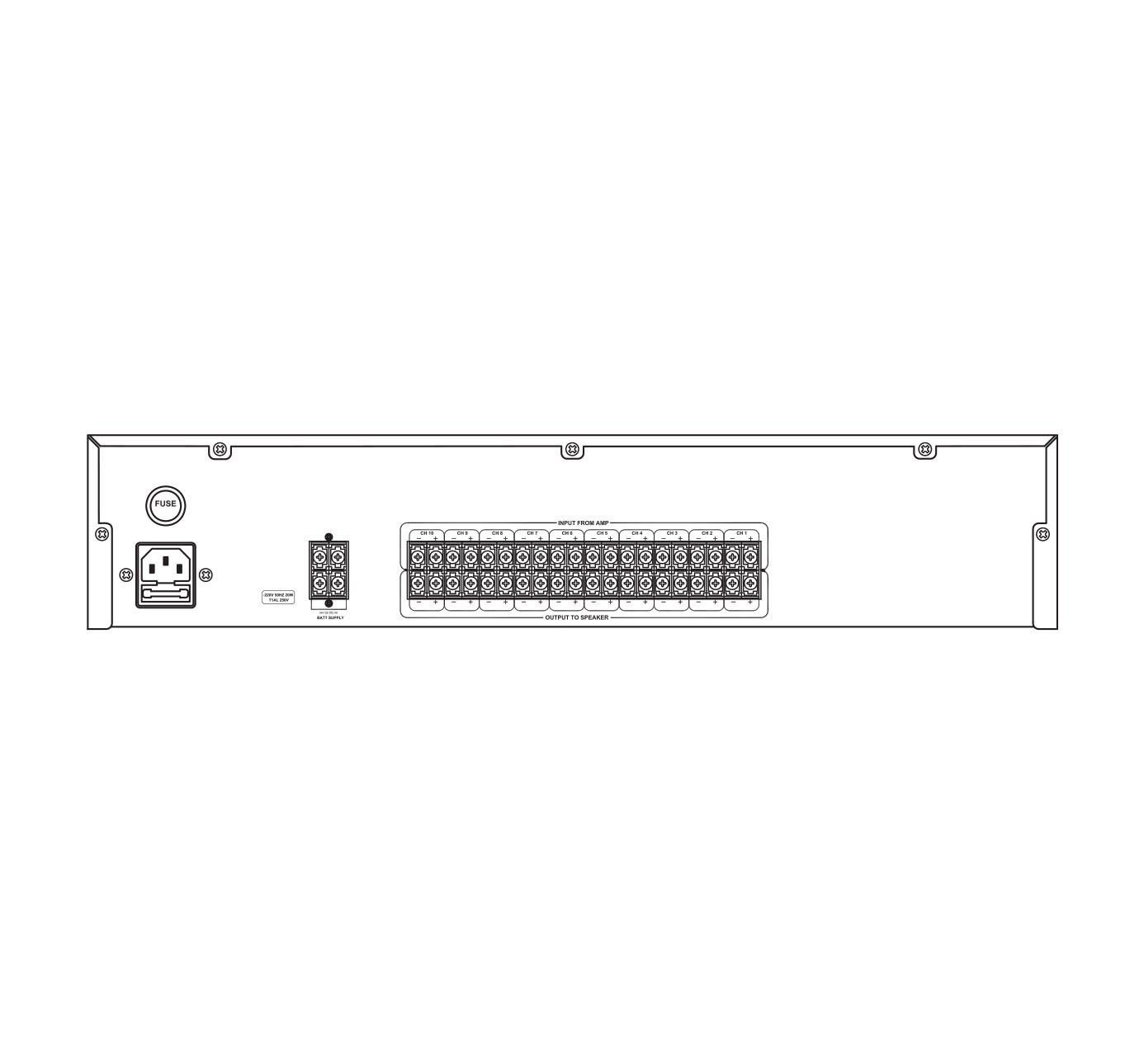

• Dedicated Channel Inputs/Outputs: Clearly labeled input terminals for “INPUT FROM AMP” and output terminals for “OUTPUT TO SPEAKERS” for each channel (CH1-CH10) on the rear panel.
• Benefit to You: Gain peace of mind knowing that critical speaker lines are continuously monitored, allowing for immediate action if a fault occurs across a significant portion of your PA system.

Robust and Rack-Mountable Design

The APZ-504LD is built for reliability and easy integration into professional audio setups.

• Standard Rack Mountable: Designed to fit seamlessly into standard 19-inch audio equipment racks, making installation and organization straightforward (W484 x H88 x D303 mm).
• Dual Power Supply Options: Can be powered by 230V/50Hz AC mains or DC 24V, offering flexibility for various installation requirements.
• Low Power Consumption: Operates efficiently with a power consumption of only 20W.
• Durable Construction: A robust build ensures reliability and longevity in demanding operational environments.
• Benefit to You: Integrate a vital monitoring solution into your existing rack setup with ease, backed by reliable power options and a durable design.

Essential for Maintaining Optimal PA System Integrity

The Ahuja APZ-504LD is a critical component for:

• Preventing Amplifier Damage: Detecting short circuits or overloading protects your valuable amplifiers from costly damage.
• Ensuring Audio Coverage: Identifying open circuits guarantees that all speakers in a zone are functioning as intended.
• Rapid Troubleshooting: Pinpointing exact fault locations minimizes diagnostic time and speeds up repairs.
• Compliance & Safety: Essential for systems used in emergency alerts or critical public information.

Safeguard Your PA System Performance

The Ahuja APZ-504LD Speaker Loop Detector is an indispensable safeguard for any professional public address system utilizing 100V or 70V lines. Its ability to instantly detect faults across up to 10 speaker circuits, combined with its robust design and easy integration, ensures continuous, high-performance audio delivery. Invest in the APZ-504LD to protect your equipment, maintain audio integrity, and ensure critical messages are never missed.

Protect your PA system and ensure uninterrupted audio! Order Ahuja APZ-504LD Speaker Loop Detector today! Contact us for more information, professional installation and system integration,
