AverVision Multipoint Video Conferencing System EVC900
Video Conferencing System
- 10 Points Embedded MCU
- PTZ 16X Optical Zoom Camera
- Voice Activated Layout Switch
- One-Touch Recording
- Built in SIP Server & Registrar
- Connect Anywhere & Anyplace

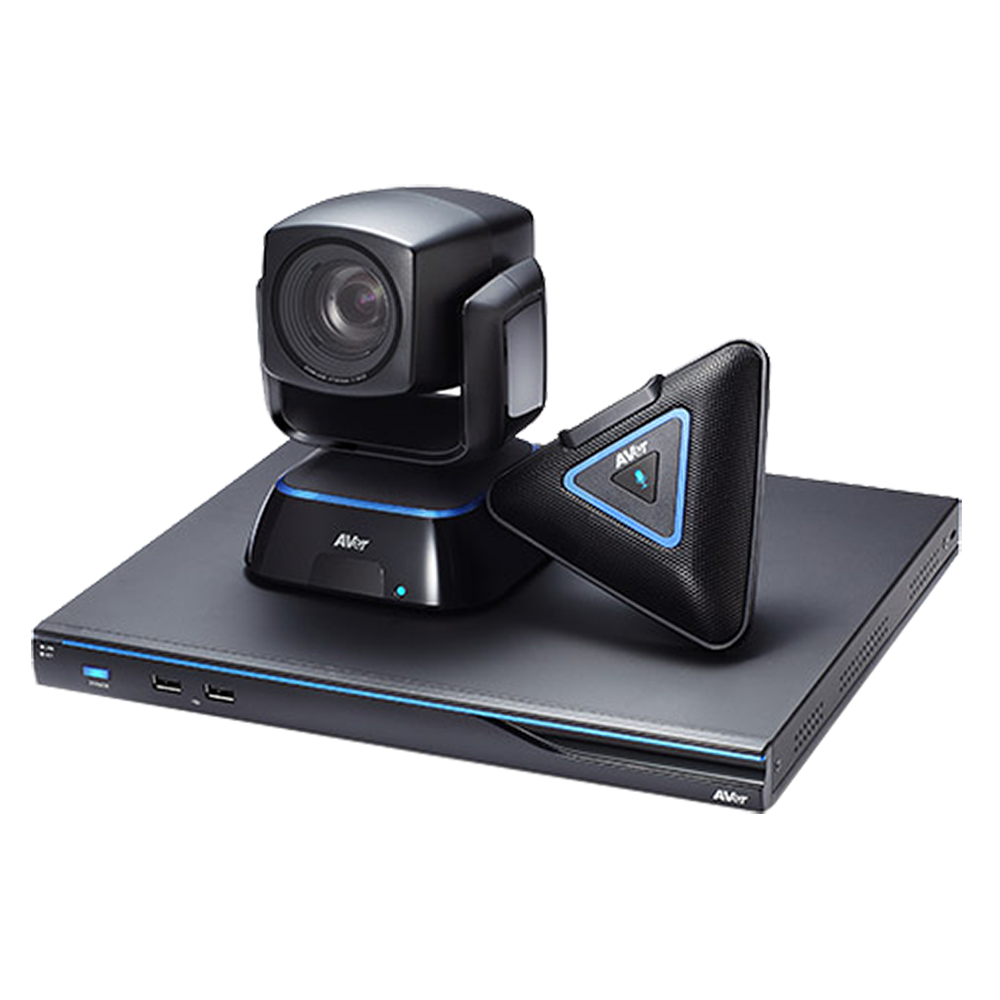

AverVision EVC900 Multipoint Video Conferencing System
10-site embedded MCU, EZDraw and EZMeetup collaboration
The EVC900 is the perfect full HD video conferencing solution for big conference rooms or auditoriums. AVer’s range of mobility apps complement the MCU making it ideal for people who are frequently on the move but still need to connect to important conferences. The high performance MCU offers real-time full HD 1080p video streaming and content sharing as well as a full HD 16X PTZ camera, microphone array, sleek UI and compact system design that provides a cost-effective way for up to 10 sites to connect. The EVC900 allows users to enjoy smooth, clear multisite conferencing under low bandwidth conditions, making it ideal for areas with insufficient telecommunication infrastructure.
Features
10 Points Embedded MCU
Our EVC900 supports conferencing on up to 10 different locations at full HD1080p resolution. The cost-effective embedded MCU offering smooth video streaming is the ideal solution for those who want to start conferencing today.
PTZ 16X Optical Zoom Camera
The EVC900’s impressive full HD PTZ camera with 16X optical zoom accompanied with +/-100° pan and +/-25° tilt, allows for clear close-ups of participants in large conference rooms.
Voice Activated Layout Switch
The voice activated layout switch feature allows the dominant speakers screen to be automatically enlarged. This function makes the video conference more natural by making it clear who is speaking and avoids the problem of participants inadvertently interrupting each other.
One-Touch Recording
Record your video conferences – video, audio and shared content – directly to a USB flash drive, turning them into video archives that help avoid post-meeting information loss. Playback recorded meetings using your EVC900 system or on your PC or laptop using AVer’s VCPlayer software.
Built in SIP Server & Registrar
The EVC900 provides conferencing for up to 10 different sites and allows AVer and non-AVer systems and any SIP-based devices, app, and software to communicate. The EVC900 is the ideal solution for businesses that want smooth video streaming from a cost-effective device.
Connect Anywhere & Anyplace
The EVC900 allows you to connect up to 10 sites no matter where they are. Download AVer’s mobility software EZMeetup to enjoy video conferencing on PC, laptop, mobile phone and tablet. Enjoy clear images and sound with EVC900 to ensure that those important people can join in those important conferences wherever they are.
Specification
Package Contents
Main system unit (codec)
EVC eCam PTZ camera
EVC microphone array
IR remote control
Power supply
Cables
Warranty card
Quick guide
Communications
H.323, SIP standards, SIP TLS
64Kbps~4Mbps
RJ45 network LAN (10/100/1000)
Manual bandwidth settings
Pan/Tilt/Zoom camera
2-megapixel CMOS sensor
16X optical zoom
±100° pan; ±25° tilt
Field of view (H): 61°
Field of view (V): 35°
Field of view (Diagonal): 67°
People Video Resolutions
HD1080p (1920 x 1080)
HD720p (1280 x 720)
480p (848 x 480)
4CIF (704 x 576)
CIF (352 x 288)
SIF (352 x 240)
All resolutions at 30fps
Content Video Resolutions
Supported resolutions:
HD1080p (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD720p (1280 x 720)
XGA (1024 x 768)
SVGA (800 x 600)
D1 (720 x 480)
VGA (640 x 480)
Output resolutions:
HD1080p (1920 x 1080) up to 30fps
Video Standards
H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
H.239 dual video streams
BFCP content sharing
Video Features
3D denoise
Video Inputs
EVC eCam camera
VGA
DVI (HDMI)
Video Outputs
HDMI
VGA
Physical Characteristics
Package dimensions: 378 x 297 x 224 mm
Package weight: 5.98kg (13.19lbs)
Main system (codec): 320 x 262.7 x 37.2 mm
eCam PTZ camera: 122.3 x 122.3 x 159.5 mm
EVC microphone array: 131.9 x 118.6 x 25.5 mm
Environmental Data
Operation temperature: 0°C~40°C
Operation humidity: 20%~80%
Storage temperature: -20°C~60°C
Storage humidity: 20%~80%
Environmental Data
Operation temperature: 0°C~40°C
Operation humidity: 20%~80%
Storage temperature: -20°C~60°C
Storage humidity: 20%~80%
Audio Standards
G.711, G.722, G.728, G.722.1, G.722.1C licensed from Polycom®
Audio Features
Automatic gain control (AGC)
Advanced noise reduction
Acoustic echo cancellation (AEC)
Audio Inputs
EVC microphone daisy chain up to 4
DVI (HDMI)
Line-in (3.5 mm)
Other Supported Standards
H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
SRTP
User Interface
Multiple layout styles
User-friendly OSD (supports 22 languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish)
Display/edit site name
Network
10/100/1000Mbps
NAT/firewall traversal
High Efficiency Lost Packet Recovery (HELPeR™)
API support via Telnet
Wake-on-LAN (WOL) support
IPv4 and IPv6 support
Network Test
QoS
Security
AES (Advanced Encryption Standard) function (128-bit)
Password protection for system settings
Password protection for remote system management
Web Management Tool
Remote management through the Web
Live monitoring via the Web
Firmware update via Ethernet/Internet
Phonebook download/upload/edit
Restore system settings
Export call history
Value-Added Features
Meeting recording
In meeting and offline recording
Save directly to USB flash drive
Supports screen re-layout during playback
Playback and file conversion via VCPlayer software (.mov/.mp4 format)
EZMeetup software/App
30-day for free trial
Connect with H.264 video codec
Receive resolution up to full HD 1080p at 30fps
Transmit resolution up to VGA (640×480) at 30fps
Compatible with firmware later v10.06
Support content sharing, capture and recording
EZDraw App
Compatible with firmware later v10.12
Import .JPG, .PNG, .GIF and .BMP files
Export .PNG files
A maximum of 10 devices can be connected
Speed dialing via hot keys (10 sets)
Camera presets (10 positions)
Network Time Protocol (NTP)
ScreenShare support
VCLink support
SnapShot
Group Calling
Power Supply
AC 100V~240V, 50/60Hz
Consumption: EIAJ 12V, 4A
