PeopleLink Quadro USB Conference Speakerphone
Original price was: Rs.102,000.00.Rs.44,399.00Current price is: Rs.44,399.00. Price Excluding TAX
► Four Bi-Directional Noise-Isolating Microphones with 360° Voice Capture
► Powerful 92dB High-Fidelity Speaker for Crystal-Clear Room Fill
► Advanced Hardware DSP with Built-In AEC, AGC, and ANS 3A Algorithms
► 500ms Acoustic Echo Cancellation for Natural Full-Duplex Dialogue
► Plug-and-Play USB 2.0 Interface (No Drivers Required for PC or Mac)
► Dual Expansion Ports (EXT1 / EXT2) Supporting 2 Extension Microphones
► Intuitive Keypad with Fast Mute Button and Visual Tri-Color Status LEDs
► Optimized for Medium to Large Boardrooms (15–20 Seats, 30ft × 20ft Space)

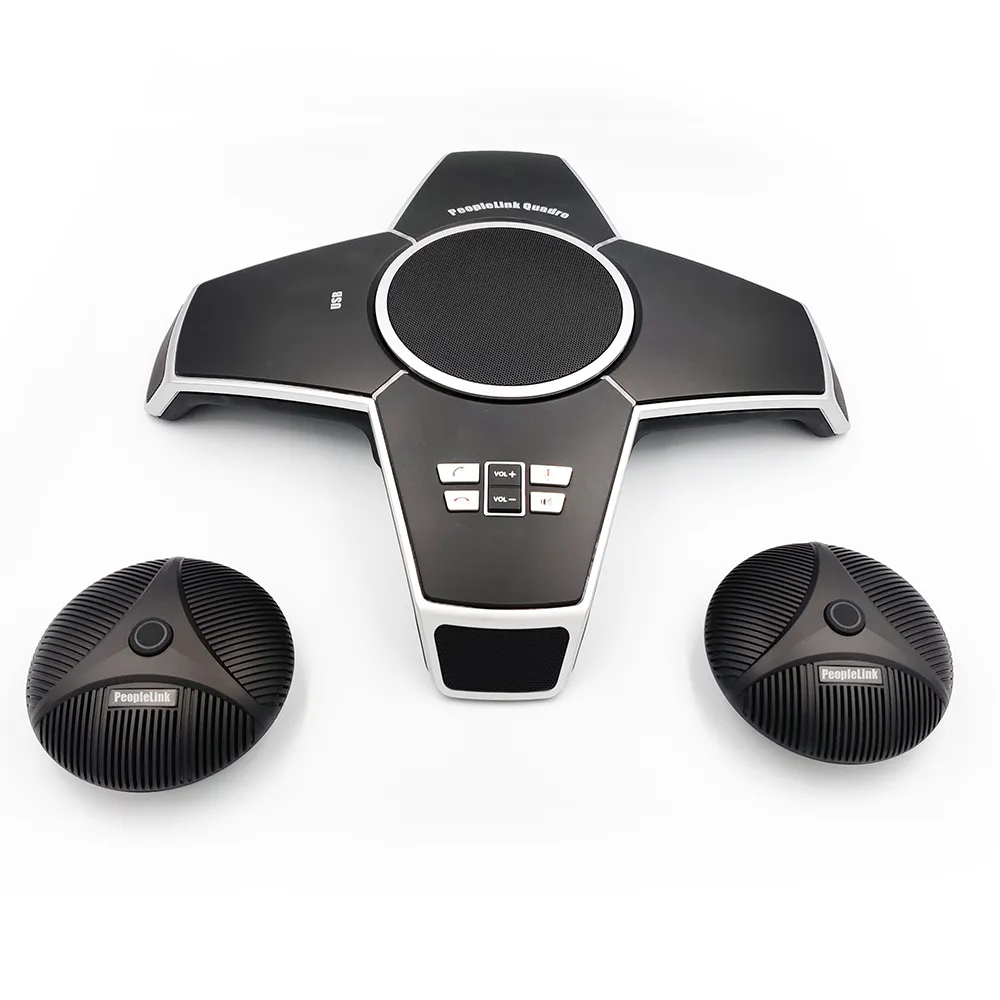

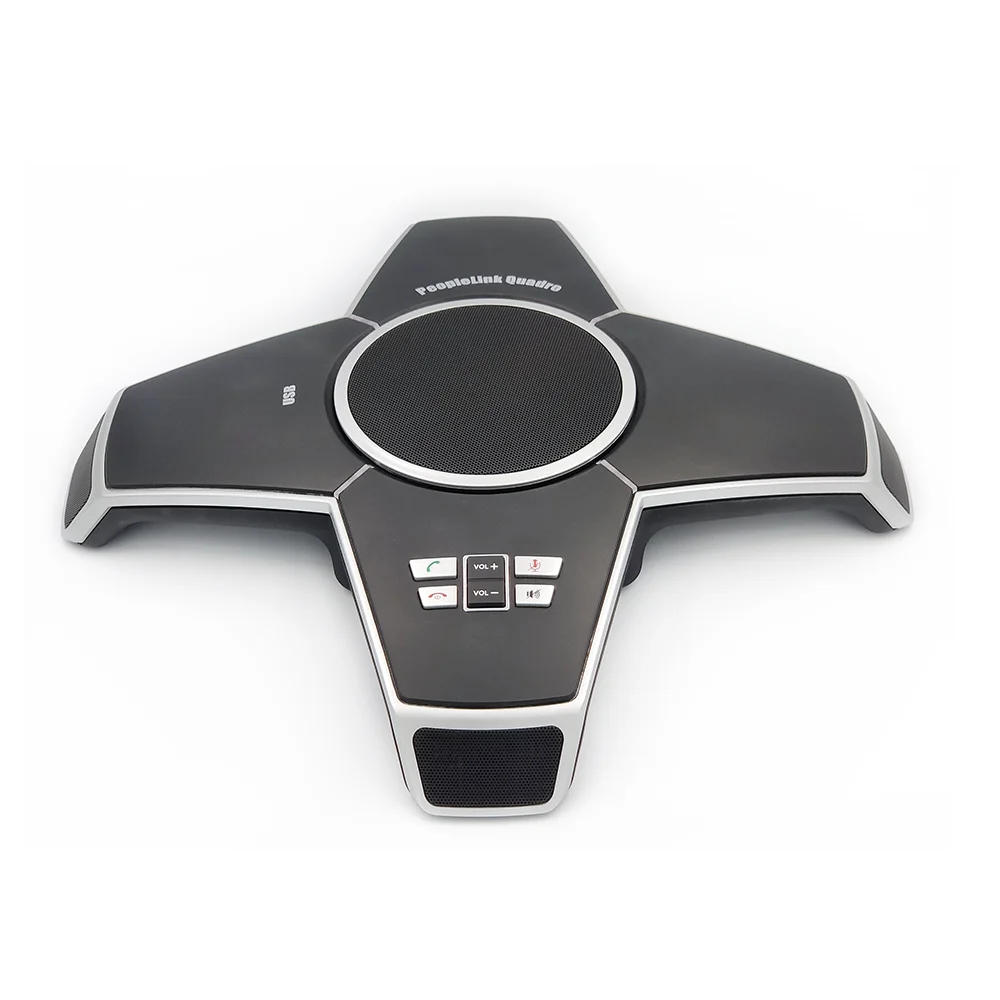

PeopleLink Quadro USB Conference Speakerphone
Professional Enterprise USB Tabletop Speakerphone with 4 Bi-Directional Microphones, 360° Voice Pickup, 92dB Loudspeaker, and Built-In DSP for Boardrooms of 15 to 20 Seats
The PeopleLink Quadro is an enterprise-grade USB conference speakerphone engineered for medium-to-large boardrooms, conference spaces, and corporate training rooms accommodating 15 to 20 participants. Featuring an array of 4 bi-directional noise-isolating microphones with 360-degree acoustic coverage, a room-filling 92dB high-fidelity speaker, and an advanced hardware DSP delivering 500ms Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), and Active Noise Suppression (ANS), the Quadro ensures natural, crystal-clear full-duplex conversations across leading collaboration platforms.
Ideal For
Core Engineering Features
360° Bi-Directional 4-Microphone Array
Integrates four high-sensitivity bi-directional microphones engineered with a 360-degree pickup radius up to 3 meters, capturing voices evenly from every seat around the conference table without hollow room resonance.
Built-In Hardware DSP & 3A Processing Suite
Features an onboard Digital Signal Processor executing Acoustic Echo Cancellation (AEC) with 500ms tail length, Automatic Gain Control (AGC), and Active Noise Suppression (ANS) to eliminate HVAC hum and room echo.
High-Output 92dB Conference Speaker
Delivers an impressive 92dB sound pressure level with an extended 100Hz to 22kHz frequency range, reproducing remote speech with outstanding clarity, articulation, and presence across a 30ft by 20ft room.
Modular Expansion Microphone Support

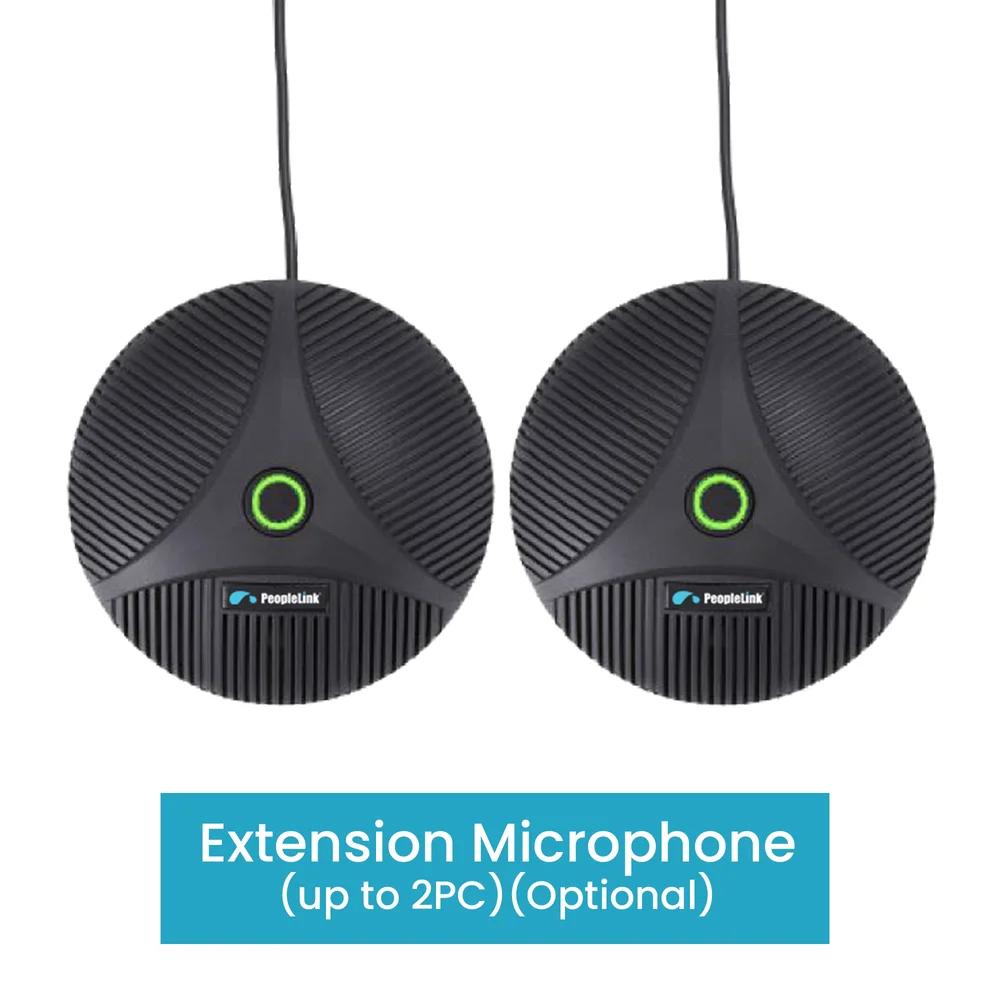

Includes dedicated EXT1 and EXT2 expansion ports supporting up to two optional satellite microphones with dedicated mute controls and status LEDs, extending voice pickup by an additional 2 meters per pod for long tables.
Driver-Free USB 2.0 Plug-and-Play
Connects seamlessly via a standard USB 2.0 Type-B interface with zero software drivers required, offering certified compatibility across Windows, macOS, Android, and popular UC platforms like Zoom, Teams, and Webex.

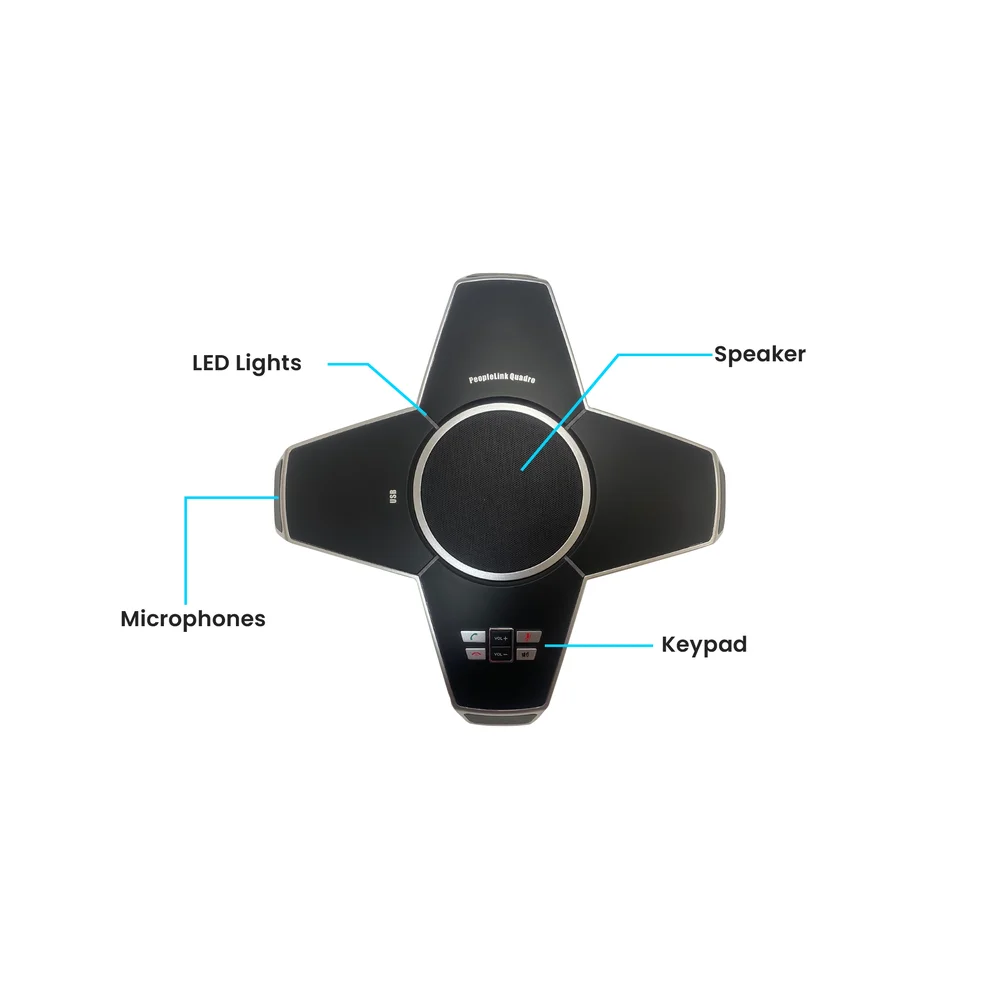

Tactile Keypad with Comprehensive Visual Indicators
Equipped with an intuitive top-panel control keypad with instant microphone mute, volume controls, and bi-color green/red LED status rings that provide unambiguous visual confirmation of live and muted states.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | PeopleLink Quadro |
| Brand | PeopleLink |
| Product Category | Wired Audio Devices / USB Conference Speakerphone |
| Microphone Array | 4 × Bi-Directional Noise-Isolating Microphones |
| Voice Pickup Radius | 360° Omnidirectional Coverage |
| Microphone Pickup Range | 3 Meters (Base Unit) |
| Microphone Frequency Range | 100Hz – 22kHz |
| Loudspeaker Output | 92 dB Sound Pressure Level (SPL) |
| Audio Processing (3A) | Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), Active Noise Suppression (ANS) |
| Echo Cancellation Tail | 500 ms |
| Expansion Capability | Supports up to 2 × Optional Extension Microphones (via EXT1 / EXT2) |
| Extension Mic Pickup Range | 2 Meters per Extension Microphone |
| Host Connectivity | USB 2.0 Type-B (Plug & Play) |
| Control Interface | Top-Mounted Tactile Keypad (Mute, Volume +, Volume -) |
| Status Indicators | Bi-Color LED Status Ring (Green = Live, Red = Muted) |
| Operating Systems | Windows 11 / 10 / 8 / 7, macOS, Android, Linux |
| Software Compatibility | Microsoft Teams, Zoom, Cisco Webex, Google Meet, PeopleLink Elite |
| Recommended Room Size | Up to 30 ft × 20 ft (9 m × 6 m) |
| Seating Capacity | 15 – 20 Seats |
| Power Supply | USB Bus Powered / External Power Adapter |
Frequently Asked Questions
What room size and seating capacity is the PeopleLink Quadro designed for?
The PeopleLink Quadro is specifically optimized for medium to large boardrooms, executive conference rooms, and training spaces measuring approximately 30ft by 20ft (9m × 6m), comfortably accommodating 15 to 20 participants around the table.
How does the microphone voice pickup perform across the table?
The Quadro features 4 bi-directional stereo microphones providing complete 360-degree voice pickup up to a 3-meter radius from the central unit. Built-in Automatic Gain Control (AGC) normalizes volume levels so participants speaking softly or sitting farther away are heard with equal clarity.
Can the microphone pickup range be expanded for longer conference tables?
Yes. The Quadro includes two dedicated expansion ports (EXT1 and EXT2) that support up to 2 optional extension microphones. Each extension mic extends voice pickup by an additional 2 meters, allowing complete acoustic coverage for U-shaped setups and elongated boardroom tables.
Is any software or driver installation required to use the PeopleLink Quadro?
No drivers or proprietary software are required. The PeopleLink Quadro is a standard UAC (USB Audio Class) plug-and-play device that connects directly via USB 2.0 Type-B to any Windows, Mac, or Android meeting PC or laptop.
How does the Quadro handle room echo and background noise?
The speakerphone utilizes dedicated hardware Digital Signal Processing (DSP) featuring a 500ms Acoustic Echo Cancellation (AEC) algorithm and Active Noise Suppression (ANS). This completely eliminates room reverberation, speaker feedback, and persistent background noise like projector fans or air conditioning hum.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
