Ahuja APZ-502CU Paging Selector Control Unit

Ahuja APZ-502CU Paging Selector Control Unit: Master Your 10-Zone Audio System

Effective communication and seamless audio management are critical in modern facilities, from schools and hospitals to corporate buildings and public venues. When your public address system requires precise control over multiple zones, ensuring announcements reach the right audience without disrupting ongoing background music, a dedicated control unit is indispensable. The Ahuja APZ-502CU Paging Selector Control Unit is engineered to be the central hub for your multi-zone audio system, offering robust 10-zone control, advanced priority paging features, and unparalleled expandability to manage extensive sound distribution needs.

Precision 10-Zone Control and Expandable Paging

The Ahuja APZ-502CU is designed for powerful and flexible zone management, allowing you to direct audio precisely where it’s needed.

• Key Benefits:

  • Dedicated 10-Zone Paging Control: Independently manage audio distribution across up to 10 distinct zones.
  • Cascadable to 300 Zones: Seamlessly expand your system by connecting up to 30 APZ-502CU units in series, creating a comprehensive 300-zone solution for large-scale installations.
  • Centralized System Management: Serves as the primary control unit for your multi-zone PA system, simplifying operation.

Intelligent Priority Paging & Background Music Management

One of the most crucial features of the APZ-502CU is its intelligent handling of announcements and background music (BGM).

• Dual Channel Amplifier Inputs (A for BGM, B for Paging): Supports separate amplifier inputs for background music and paging announcements.
• Automatic BGM Interruption: When a paging announcement is made, background music is automatically interrupted only in the zones where the announcement is required.
• Priority Paging from Console: Announcements made directly from the APZ-502CU (via its own microphone inputs) have priority over announcements made from a remote paging microphone.
• Two-Color Zone Status LEDs: Visually indicates the status of each zone, showing whether music is playing or an announcement is active (e.g., green for music, red for paging).
• Benefit to You: Deliver critical announcements without disrupting background music in unaffected areas, ensuring a professional and less intrusive communication experience. You have clear visual feedback on your system’s status at all times.

Versatile Microphone and Remote Paging Connectivity

The APZ-502CU offers multiple options for making announcements, both locally and from remote locations.

• Built-in Microphone Inputs (MIC1, MIC2): Directly connect standard microphones to the control unit for local announcements with independent volume controls.
• Provision for Remote Paging Console (APZ-501RM): Easily connect the Ahuja APZ-501RM Remote Paging Mic Console to enable paging from separate, distant locations. This ensures a comprehensive and flexible paging network.
• Benefit to You: Choose the most convenient point for making announcements, whether directly from the central unit or from multiple remote locations, adapting to your facility’s operational needs.

Robust Performance and User-Friendly Controls

Designed for reliable performance, the APZ-502CU features robust specifications and intuitive controls for ease of use.

• Wide Frequency Response: Ensures clear audio reproduction for both microphones (100Hz-15KHz) and line inputs (30Hz-18KHz).
• High Signal-to-Noise Ratio: Delivers clean audio with minimal background noise (60dB for MIC, 80dB for Line).

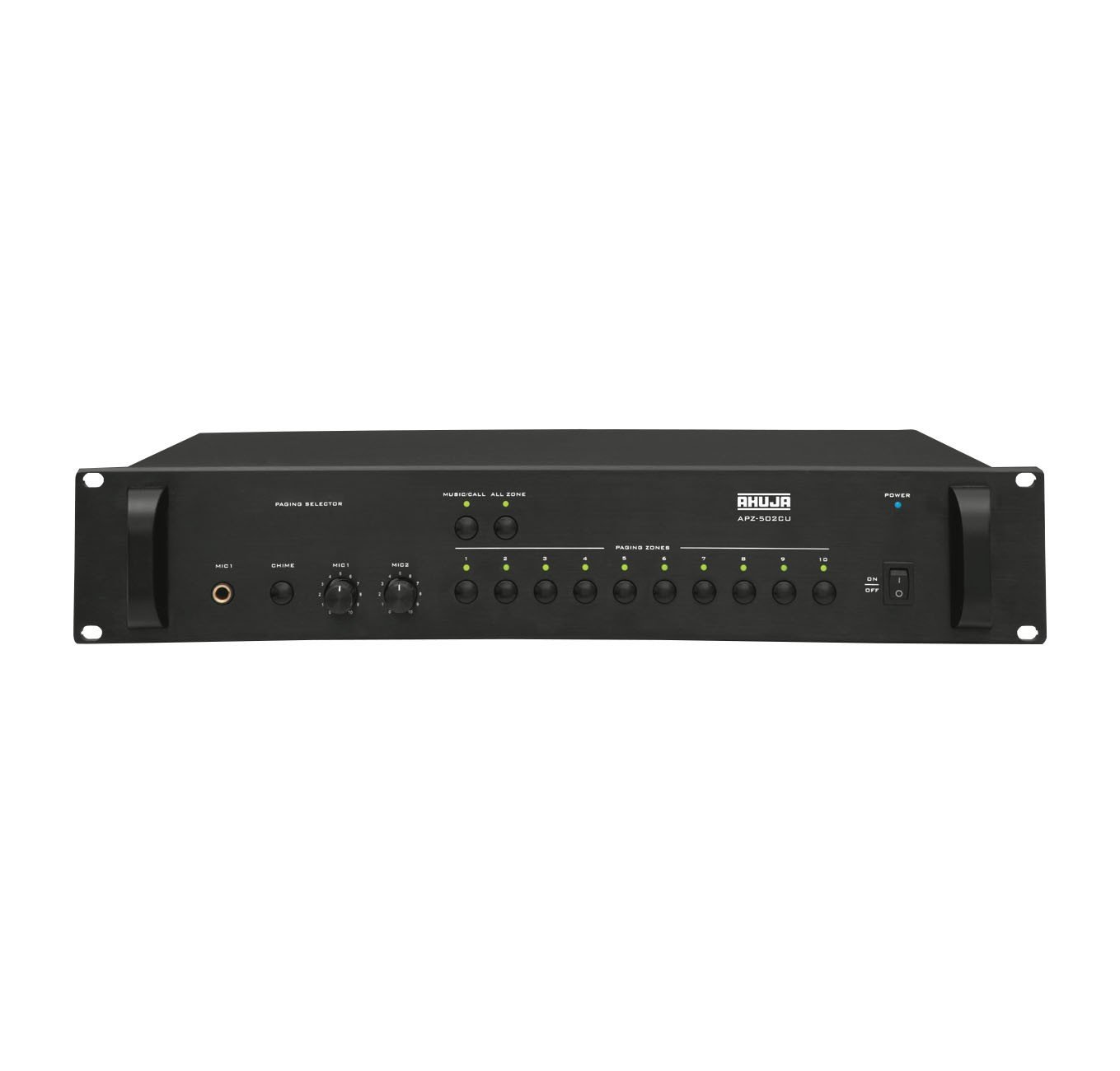

• Dedicated Controls: Features MIC volume controls, 10-channel selectors, a chime button, and a power switch for straightforward operation.
• Standard Power Supply (230V/50Hz): Easy integration into typical electrical systems.

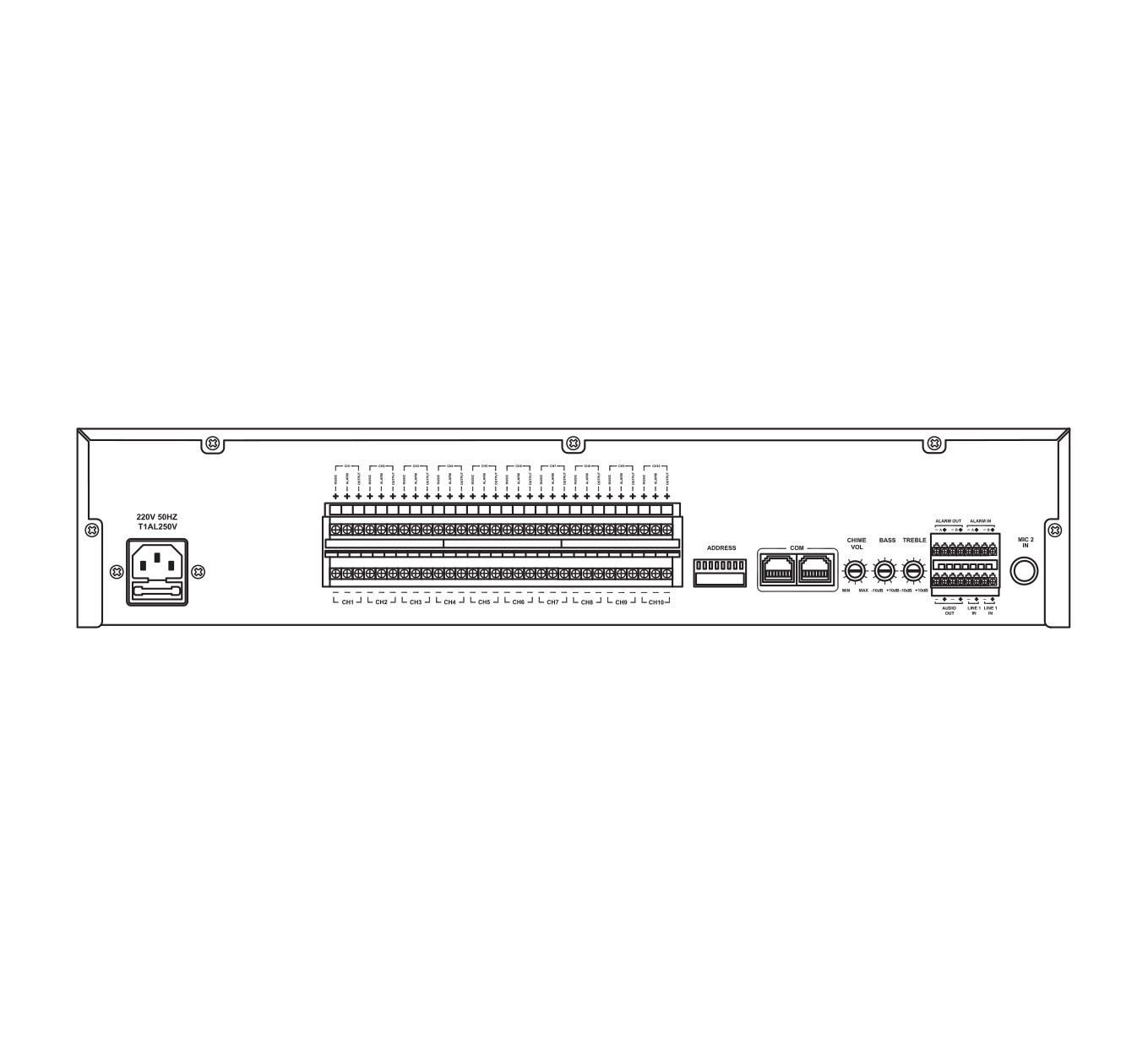

• RS422 Communication Protocol via RJ45: Ensures reliable and high-speed (4800bps) data communication for seamless system control and expansion.
• 19-inch Rack Mountable: Standard rack-mount design allows for easy installation into existing audio racks (W484 x H88 x D303 mm, 4.6kg).
• Benefit to You: Enjoy stable, high-fidelity audio performance and precise control from a unit that is easy to install and operate.

Ideal Applications for Comprehensive Public Address Systems

The Ahuja APZ-502CU is an essential component for effective and efficient audio management in a wide range of multi-zone environments:

• Corporate Offices & Campuses: For general paging, emergency announcements, and background music distribution.
• Shopping Malls & Retail Centers: Managing promotions, security announcements, and ambiance.
• Hospitals & Healthcare Facilities: For patient paging, staff communication, and emergency alerts.
• Educational Institutions: For bell systems, inter-class announcements, and public address in auditoriums.
• Hotels & Resorts: For guest paging, event announcements, and creating varied ambiances.
• Large Public Venues: Providing zoned audio for diverse areas within a single facility.

Take central control of your multi-zone audio system!

The Ahuja APZ-502CU Paging Selector Control Unit is a high-performance, indispensable heart for any multi-zone public address system. Its intuitive 10-zone control, intelligent background music interruption, priority paging capabilities, and extensive expandability to 300 zones make it the superior choice for seamless and effective audio management in large and complex facilities. Empower your communication infrastructure with the APZ-502CU.

Order Ahuja APZ-502CU Paging Selector Control Unit today! Contact us for more information and detailed system design & integration.
