CMX AWS530 5.25″ 2-Way Active Wall Mount Commercial Speaker Set (100W)

► Integrated High-Efficiency Class-D Amplifier

► 2-Way Full Range Stereo Sound System

► High-Fidelity 5.25-Inch Long-Throw Woofer

► Dedicated 6.35mm Microphone Input

► Dual Stereo RCA Line Connectivity

► Heavy-Duty Adjustable Steel Mounting Brackets

► Impact-Resistant ABS Acoustic Enclosure

SKU: AWS530 Categories: Audio Product, Ceiling-Wall Mount Bracket, CMX-Audio, Speakers

Description
Reviews 0

CMX Audio Solutions

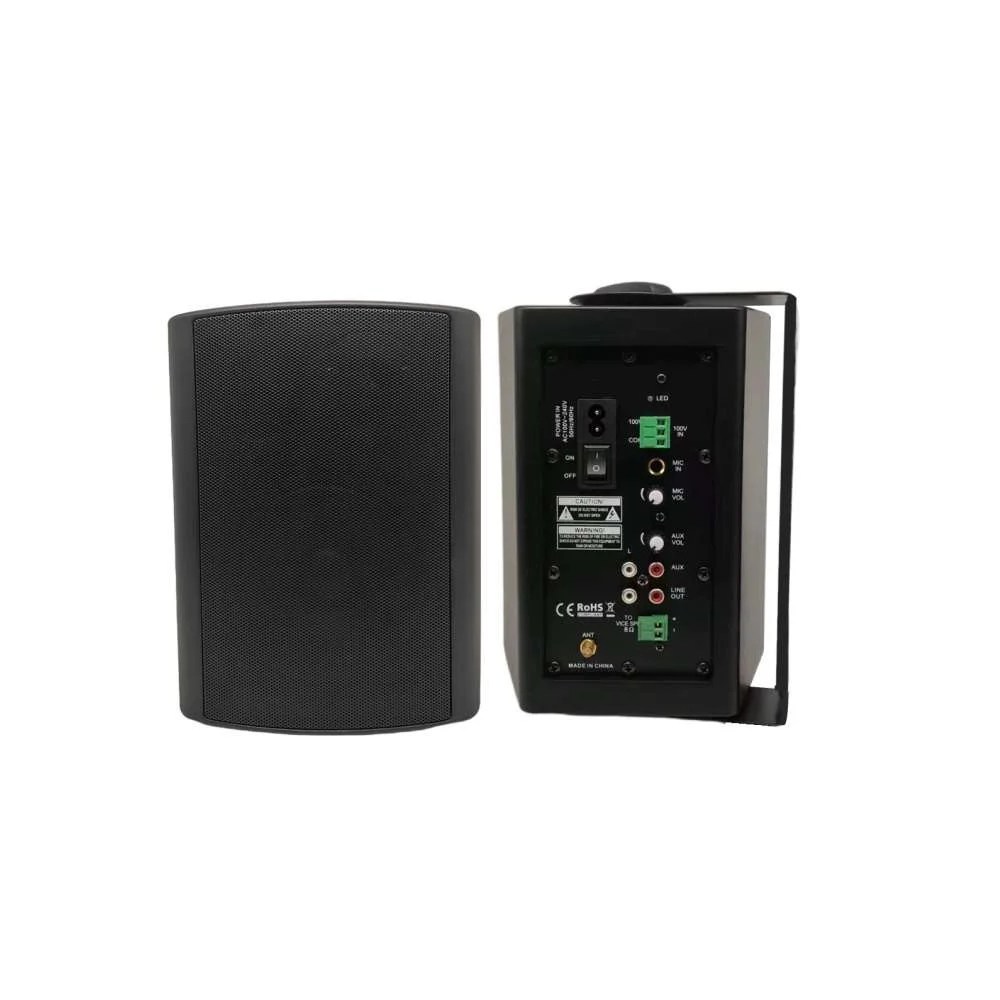

CMX AWS530 5.25″ 2-Way Active Wall Mount Commercial Speaker Set (100W)

High-Efficiency Class-D Commercial Active Speaker System

The CMX AWS530 is a master-and-slave commercial active loudspeaker pair engineered for classrooms, boardrooms, and lecture halls, featuring an onboard 85% high-efficiency Class-D stereo amplifier delivering 100W program / 200W peak output.

Core Engineering Features

Integrated Class-D Stereo Amplifier

High-efficiency 85% Class-D digital topology runs cool without cooling fans, delivering up to 200W peak dynamic output without distortion.

2-Way Hi-Fi Transducer Array

5.25″ long-throw woofer paired with a 1.5″ silk dome tweeter provides uniform 120° horizontal sound dispersion across meeting spaces.

Direct Mic & Media Line Inputs

Direct 6.35mm mic and stereo RCA line inputs allow direct teacher mic and PC audio hookup without requiring external mixer consoles.

Universal Multi-Angle Wall Brackets

Heavy-duty steel U-brackets with adjustable tilt and pan angles facilitate rapid and secure architectural wall mounting.

Technical Specifications

Specification Parameter	Technical Specification Details
Model Code / SKU	AWS530 (Active + Passive Speaker Pair)
Speaker System Type	2-Way Active Bass-Reflex Wall Mount Loudspeaker Set
Amplifier Topology	Built-in High-Efficiency Class-D Digital Stereo Amplifier
Continuous RMS Power Output	50W RMS (2 x 25W / 2 x 30W)
Max Program Power Output	100W Program / 200W Peak Dynamic Power
Frequency Response	60 Hz – 20,000 Hz (+/-3dB)
Nominal Impedance	8 Ohms
Transducer Units	5.25″ Long-Throw Woofer + 1.5″ Silk Dome Tweeter
Total Harmonic Distortion (THD)	< 0.5% at 1 kHz (1/3 rated power)
Signal to Noise Ratio (S/N)	> 70 dB
Audio Input Connectivity	1x 6.35mm (1/4″) Microphone Input, 1x Stereo RCA Line Input
Onboard Tone & Level Controls	Master Volume, Mic Gain, Bass EQ, Treble EQ
Enclosure & Grille Material	Molded High-Impact ABS Plastic Body with Metal Grille
Physical Dimensions (Per Speaker)	170 x 185 x 250 mm (W x D x H)
Total Set Net Weight	4.7 kg (Pair)
Operating Power Supply	AC 110 – 240V, 50/60 Hz Universal AC Input

Frequently Asked Questions

Does the CMX AWS530 require an external power amplifier?

No. The master speaker contains a built-in 85% high-efficiency Class-D digital stereo amplifier that powers both the master unit and the companion passive speaker directly from AC mains.

Can I connect both a teacher microphone and computer audio at the same time?

Yes. The AWS530 active speaker includes dedicated 6.35mm microphone and stereo RCA line inputs with independent level adjustment dials, allowing simultaneous voice and media mixing.

What is included in the CMX AWS530 speaker package?

Each set includes one active speaker with built-in amplifier, one passive companion speaker, two heavy-duty steel wall mounting brackets with hardware, and an AC power cable.

What is the total power output rating of the system?

The speaker set delivers a continuous RMS power output of 50W (2x25W / 2x30W) and up to 100W program / 200W peak dynamic output across both enclosures.

Can the mounting brackets be angled toward the audience?

Yes. The included industrial steel U-brackets support multi-angle horizontal and vertical tilt adjustments to direct acoustic energy precisely toward listeners.
