Samsung VM55C-R 55″ Razor-Narrow Bezel Commercial Video Wall Display (LH55VMCRBGBXXL)
Original price was: Rs.270,000.00.Rs.226,600.00Current price is: Rs.226,600.00. Price Excluding TAX
► Razor-Thin 0.88mm Even Bezel
► 500 Nit Anti-Glare Brightness
► 24/7 Continuous Mission-Critical Reliability
► UHD 4K Daisy-Chaining Support
► Advanced IPS Wide-Viewing Panel
► Multi-Step Factory Color Calibration
► Integrated RJ45 & RS232C Control

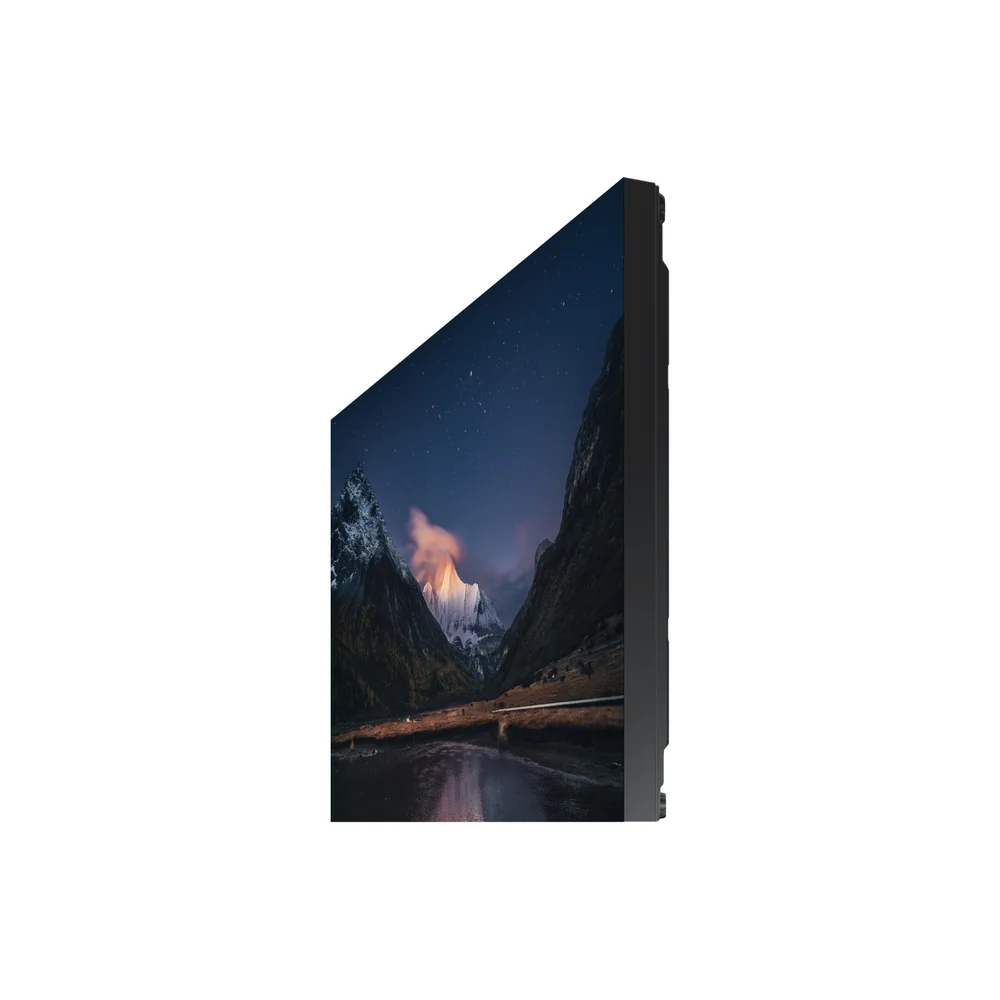

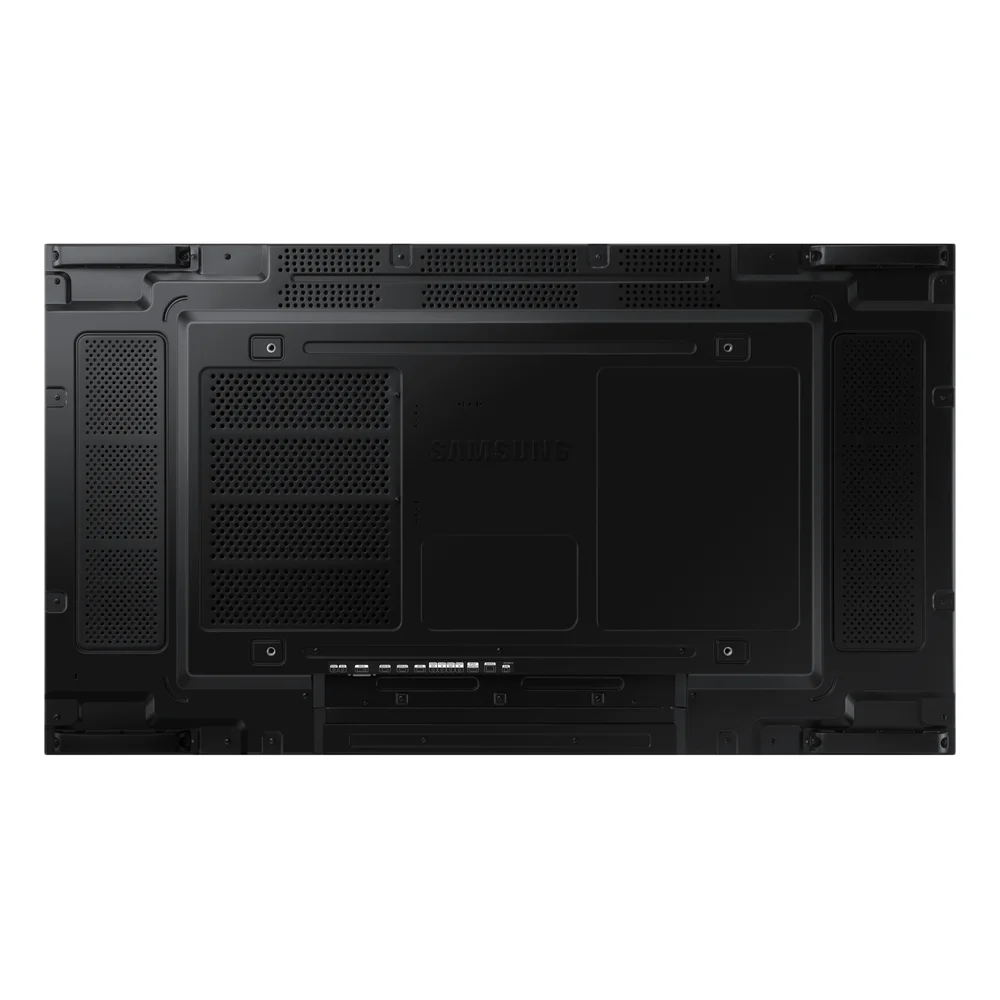

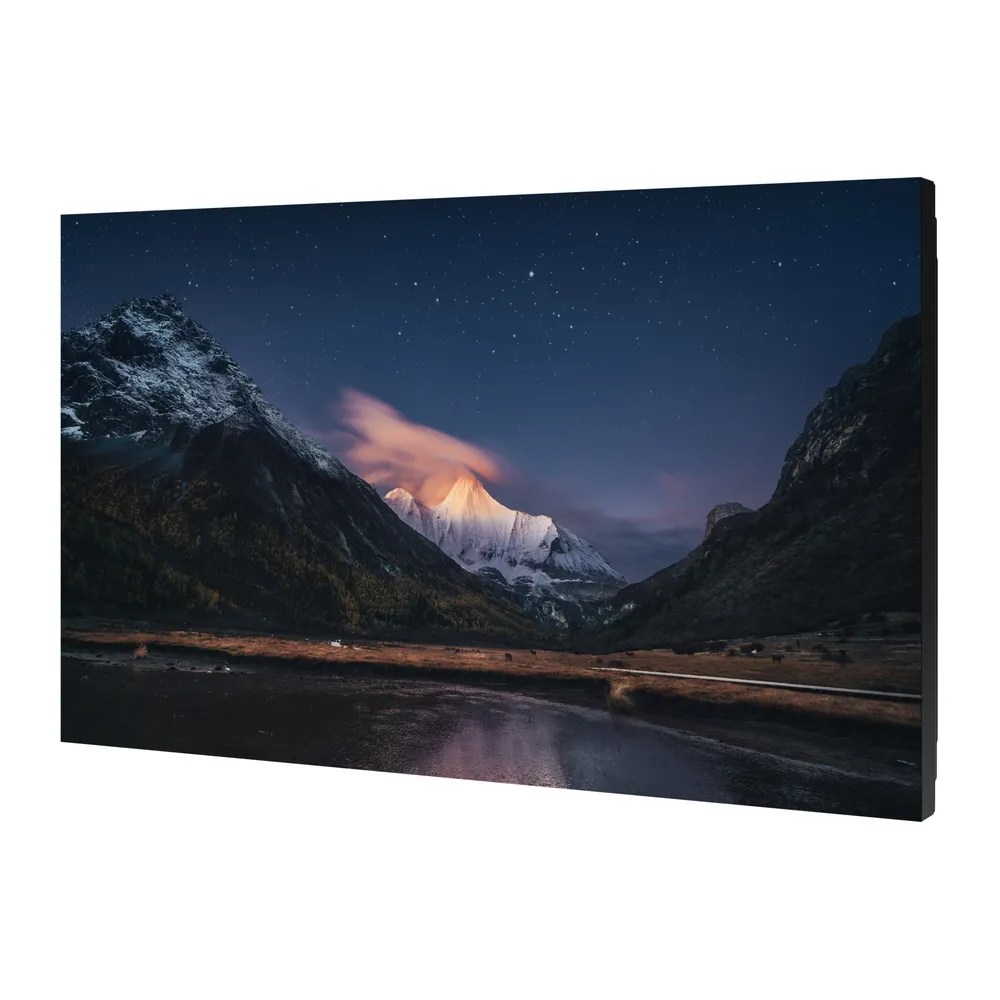

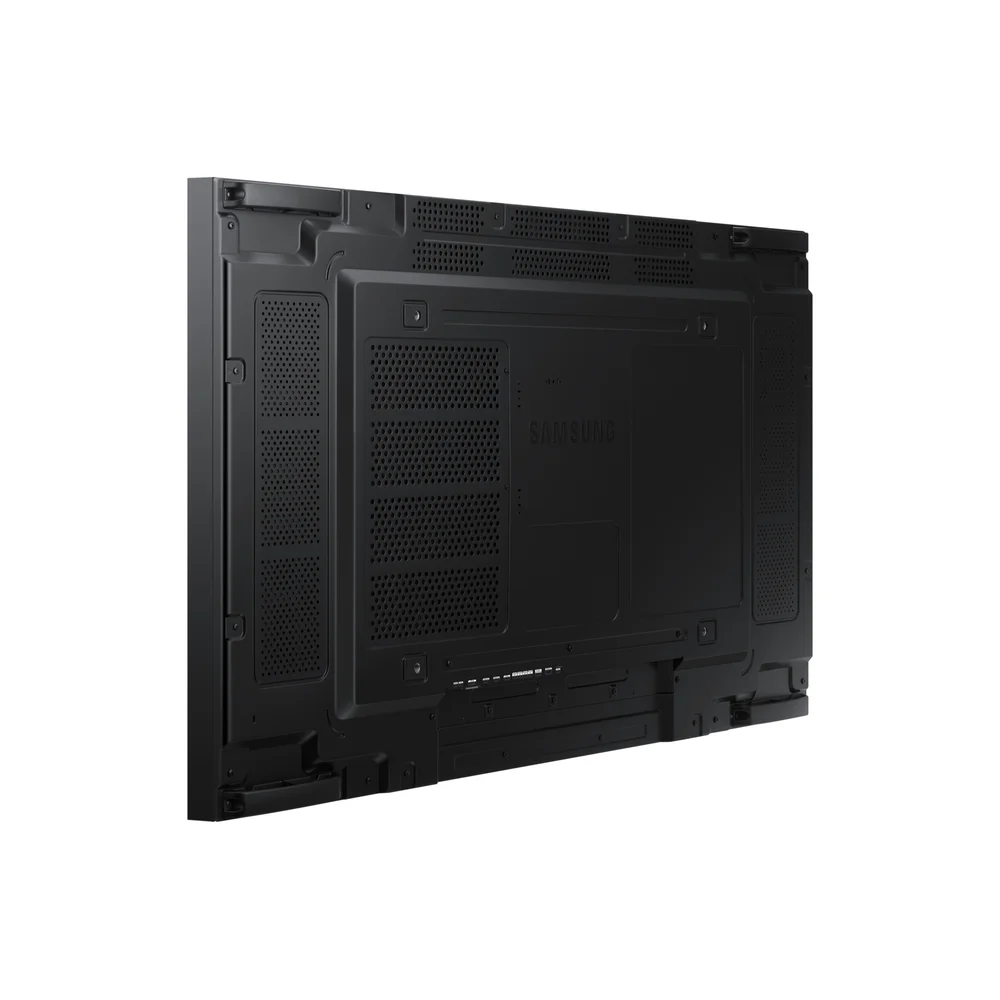

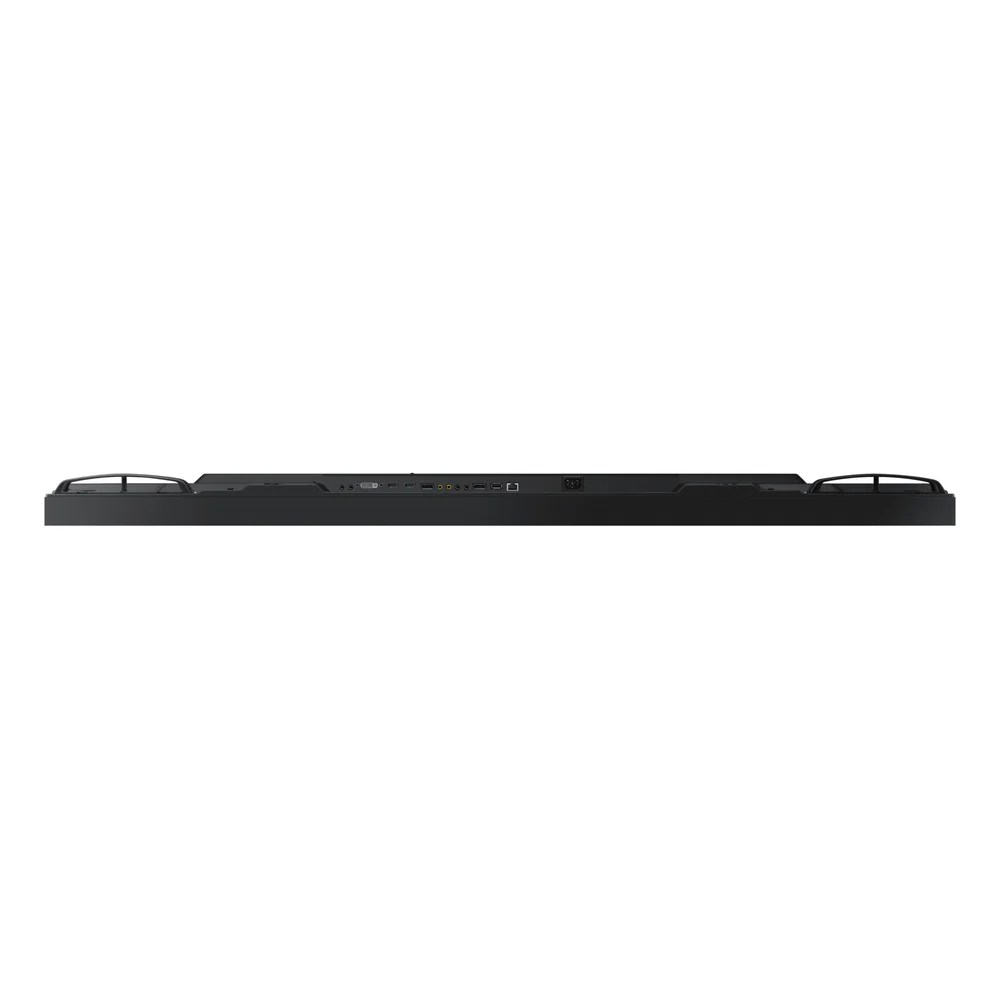

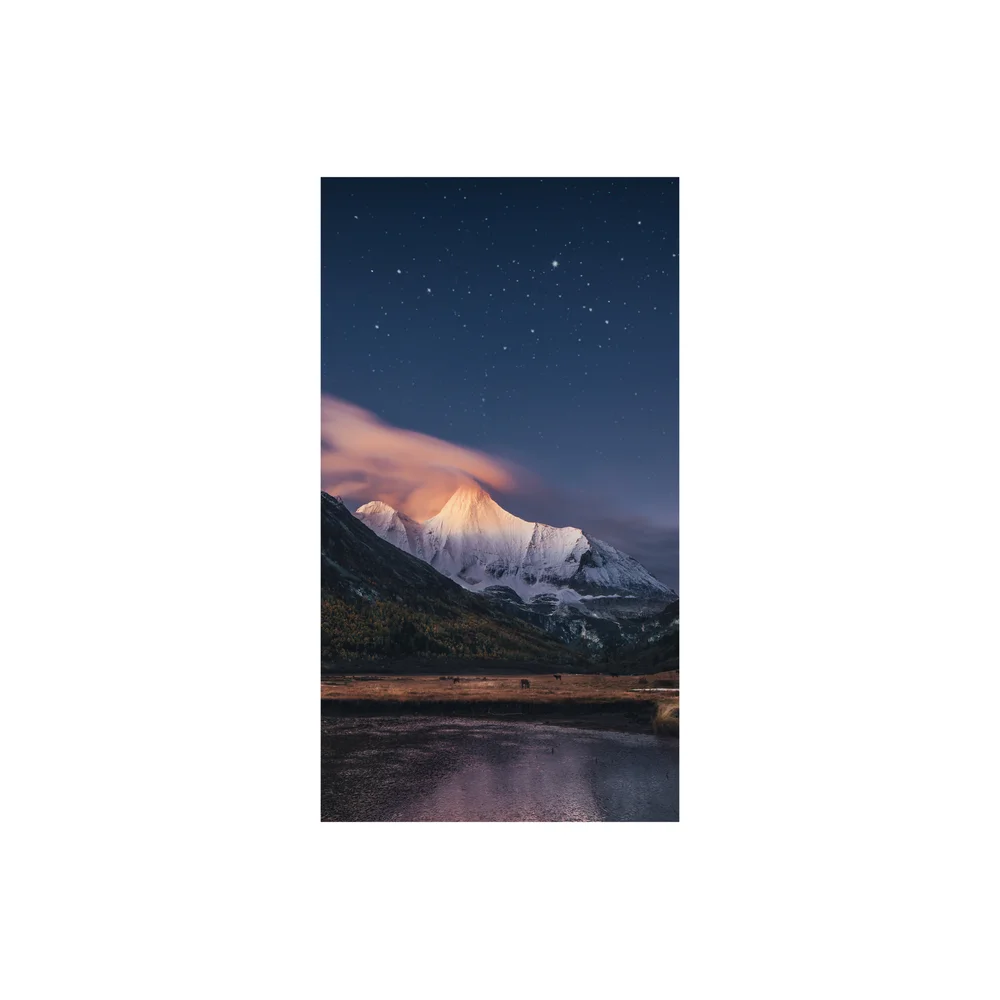

Samsung VM55C-R 55″ Razor-Narrow Bezel Commercial Video Wall Display
Deliver an unbroken, virtually seamless multi-screen visual canvas with an exceptional 0.88 mm razor-thin bezel-to-bezel alignment, 500-nit anti-glare IPS clarity, and 24/7 mission-critical durability.
The Samsung VM55C-R (Model: LH55VMCRBGBXXL) sets a new benchmark in large-scale commercial visualization. Featuring an astonishingly narrow 0.44 mm even bezel (resulting in a near-invisible 0.88 mm bezel-to-bezel gap), this 55-inch professional display eliminates visual borders between adjacent screens to deliver truly continuous visual storytelling.
System Architecture & Display Performance
Designed specifically for command and control centers, network operations hubs (NOC), corporate briefing centers, broadcast control rooms, and upscale commercial retail, the VM55C-R combines ultra-dense pixel geometry with Samsung’s proprietary Picture Enhancer algorithms. By dynamically tailoring contrast curves and color saturation, every data stream, surveillance feed, and multimedia asset is rendered with uncompromising clarity.
Its industrial-grade 500 cd/m² (nit) IPS panel features non-glare surface technology with optimized glass haze to disperse harsh ambient light reflections. Equipped with native DisplayPort 1.2 and HDMI 2.0 loop-out, systems integrators can effortlessly daisy-chain UHD 4K content across multi-screen arrays (up to 5×5 configurations) without requiring external signal distribution switchers or video matrix processors.
Core Engineering Capabilities
Razor-Thin 0.88mm Bezel-to-Bezel
Ultra-narrow 0.44 mm physical borders create an uninterrupted visual canvas that prevents critical data or graphics from being obscured across screen boundaries.
500-Nit Anti-Glare IPS Panel
Ensures optimal visibility and rich 178° off-axis color fidelity under direct high-output architectural lighting without reflection hotspots.
24/7 Mission-Critical Duty Rating
Engineered with robust thermal dissipation and commercial-grade electronics built for non-stop round-the-clock operation in high-stress control centers.
Factory & Mobile Calibration
Rigorous multi-stage factory tuning coupled with Color Expert Pro Mobile software provides rapid white-balance calibration using a mobile camera.
Technical Specifications
| Parameter | Details |
|---|---|
| Screen Diagonal Size | 55 Inches (1.38 m) |
| Model Number / SKU | LH55VMCRBGBXXL (VM55C-R Series) |
| Panel Type & Surface | Commercial IPS Panel (Non-Glare, Wide Color Gamut) |
| Native Resolution | Full HD (1920 × 1080 pixels) |
| Brightness (Typical) | 500 cd/m² (nits) |
| Contrast Ratio | 1,100:1 (Dynamic Mega Contrast: 100,000:1) |
| Bezel Width & Gap | 0.44 mm (Even Bezel) / 0.88 mm Bezel-to-Bezel |
| Viewing Angles (H/V) | 178° Horizontal / 178° Vertical |
| Response Time & Pixel Pitch | 8 ms (G-to-G) | 0.63 × 0.63 mm |
| Operational Reliability | 24/7 Continuous Mission-Critical Rating |
| Video Inputs | 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0 |
| Video & Audio Outputs | 1x DisplayPort 1.2 (UHD Daisy-Chain Loop-Out), 1x 3.5mm Stereo Audio Output |

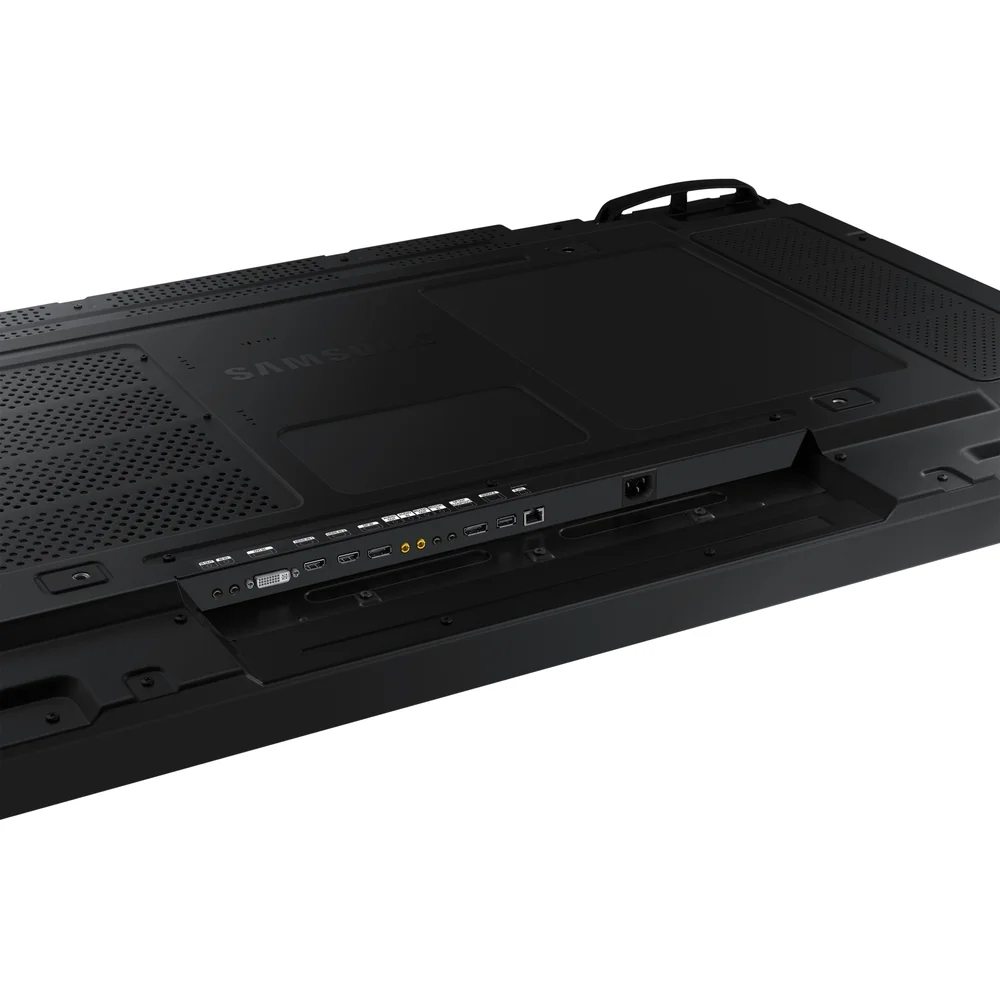

| External Control & Network | RS232C (In/Out via Stereo Jack), RJ45 (LAN Ethernet), IR Receiver |
| VESA Mount Interface | 600 × 400 mm |
| Physical Dimensions (W × H × D) | 1211.0 × 681.7 × 69.9 mm |
| Set Weight | 16.8 kg (Package: 25.1 kg) |
| Power Supply & Consumption | AC 100-240V, 50/60 Hz | On Mode: 270 W, Sleep Mode: < 0.5W |
Operational Workflow & Signal Distribution
Integrating the Samsung VM55C-R into enterprise matrix configurations provides frictionless scalability:
- Single-Source UHD Daisy Chaining: Connect the primary media server or 4K playback engine via DisplayPort 1.2 or HDMI 2.0 to the master display, then loop out sequentially across up to 25 panels (5×5 matrix) with zero latency degradation.
- Centralized IP/RS232C Management: Deploy centralized control strings using either RJ45 Ethernet commands or daisy-chained RS232C serial control for automated power management, input switching, and temperature health logging.
- Audio De-Embedding to Amplification Systems: Utilize the dedicated 3.5mm analog stereo output to route uncompressed presentation audio directly into commercial digital signal processors (DSP) and zoned power amplifiers.
Target Deployment Environments
Command & Control (NOC / SOC)
Critical monitoring rooms requiring razor-thin bezels to track GIS maps, scada metrics, and multi-camera feeds without visual disruption.
Corporate Executive Boardrooms
High-impact boardroom presentation walls delivering UHD detail for executive decision-making and hybrid video collaboration.
Broadcast Studio Backdrops
On-camera studio video backdrops with anti-glare coating and accurate color temperature calibration to prevent studio light flaring.
Airport & Transportation Terminals
Large-format flight information display systems (FIDS) operating 24/7 with wide viewing angles for travelers.
Flagship Retail Showrooms
Immersive brand storytelling installations capturing foot traffic in premium commercial shopping spaces.
Higher Education Auditoriums
Multi-display academic lecture halls providing high-resolution schematics and instructional materials across large seated audiences.
Strategic Enterprise Value
Lower Total Cost of Ownership (TCO)
Eliminates expensive external video wall processors by utilizing native DisplayPort UHD daisy-chain loop capabilities.
Zero Unplanned Downtime
Heavy-duty 24/7 commercial power supplies and advanced thermal ventilation safeguard continuous operation without image burn-in.
Rapid Front Serviceability
Standard 600×400 VESA mounting integrates seamlessly with precision pop-out micro-adjustable brackets for instant maintenance access.
Frequently Asked Questions
What is the exact bezel-to-bezel thickness of the Samsung VM55C-R?
The Samsung VM55C-R features an ultra-razor 0.44 mm even bezel around all four sides, resulting in a total combined bezel-to-bezel (B2B) width of just 0.88 mm between adjacent panels for virtually seamless visuals.
How does the VM55C-R compare to the VM55C-E video wall?
While both displays offer 500 nits brightness and 24/7 reliability, the VM55C-R provides a razor-thin 0.88 mm bezel-to-bezel measurement compared to the 1.78 mm bezel gap on the VM55C-E, delivering superior visual continuity for critical command centers.
Can I daisy-chain 4K resolution across multiple displays without external switchers?
Yes. Equipped with DisplayPort 1.2 and HDMI 2.0 loop-out ports, the VM55C-R allows system integrators to daisy chain UHD content across up to a 5×5 matrix array directly without requiring external video processors.
Is the Samsung VM55C-R certified for non-stop 24/7 operation?
Yes. The VM55C-R is commercially engineered and tested for continuous 24/7 duty cycles, backed by industrial components designed to prevent heat buildup and panel degradation.
How is display calibration handled across large multi-screen walls?
Each unit undergoes precise factory calibration for uniform brightness and chromaticity. Integrators can also execute real-time fine adjustments using Samsung Color Expert Pro Mobile software with a smartphone camera.
What bracket mounting pattern does the display require?
The display uses an industry-standard VESA 600 × 400 mm mounting pattern, compatible with all precision micro-adjustable pop-out video wall brackets.
Engineer Your Seamless Enterprise Video Wall Environment
Contact our certified AV system designers for turn-key product selection, structural CAD layouts, and complete on-site installation across India.
