CMX DI-9700TM – IP Paging Microphone
Enterprise IP Network Touchscreen Remote Paging Microphone with 7-Inch Color LCD, 6000-Zone Addressability, Full-Duplex Intercom, Built-In 5W Monitor Speaker, and External Audio Streaming for Commercial IP PA Systems

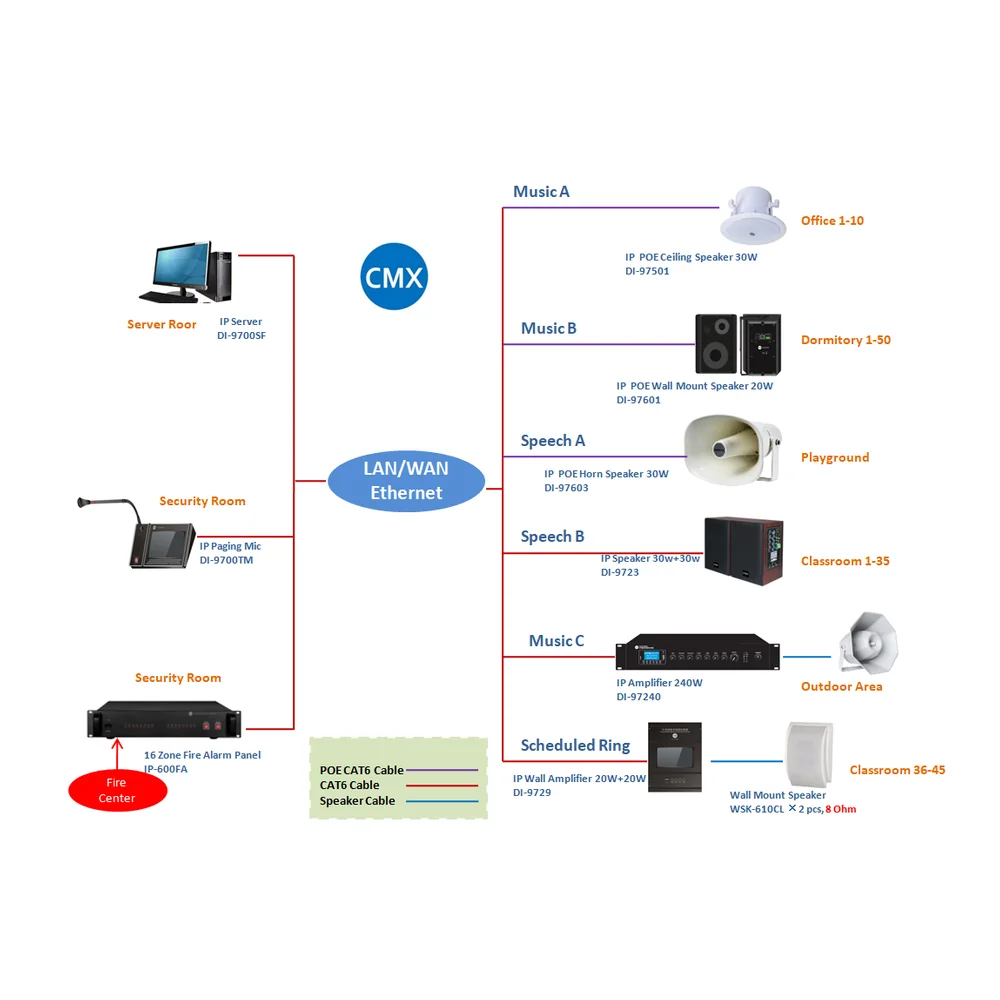

The CMX DI-9700TM is an enterprise-grade IP network remote paging microphone and call station engineered for large-scale IP public address and commercial audio distribution. Featuring an intuitive 7-inch color capacitive touchscreen, it enables system operators to initiate live announcements, pre-recorded emergency alerts, and background music broadcasts across up to 6,000 speaker zones over standard TCP/IP networks. Built with a sensitive gooseneck condenser microphone, an internal 5W acoustic monitor speaker, full-duplex two-way console intercom, and anti-echo DSP processing, the DI-9700TM delivers immediate, latency-free voice communication across airports, campuses, railway transit hubs, hospitals, and industrial complexes.
Ideal For
Core Engineering Features
7-Inch Color Touchscreen Interface
Equipped with an intuitive 7-inch color graphical touchscreen displaying real-time program status, zone maps, and IP settings with secure password-protected administrator controls.
6,000-Zone IP Network Addressability
Delivers comprehensive network routing capable of broadcasting voice announcements and alarms to individual zones, custom user groups, or all 6,000 speaker zones simultaneously across the LAN/WAN.
Full-Duplex Two-Way IP Intercom
Supports instant, bidirectional full-duplex intercom communication between different DI-9700TM call stations or IP emergency intercom terminals across the networked facility.
Internal 5W Acoustic Monitor Loudspeaker
Features a built-in 5W high-definition monitor speaker ensuring operators can pre-listen to audio sources, monitor outgoing broadcasts, and maintain crystal-clear two-way intercom conversations.
External Audio Line-In & USB Streaming
Includes a dedicated 3.5mm line audio input to route external media players over the IP network, alongside a USB port for scheduling and broadcasting pre-recorded voice messages and evacuation prompts.
Industrial DSP Echo & Latency Suppression
Engineered with specialized DSP algorithms that eliminate acoustic feedback, echo noise, and network packet jitter, ensuring pristine vocal intelligibility during critical public address announcements.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX DI-9700TM |
| Brand | CMX Audio |
| Product Category | IP Network Remote Touchscreen Paging Microphone |
| Display Screen | 7-Inch Full-Color Touchscreen LCD |
| Zone Capacity | Up to 6,000 Networked Speaker Zones |
| Communication Protocols | TCP/IP, UDP, IGMP, ARP |
| Audio Formats Supported | MP3, MP2 |
| Audio Sampling Rate | 8 kHz – 48 kHz Wideband Sampling |
| Network Transmission Speed | 10 / 100 Mbps Adaptive Ethernet |
| Frequency Response | 20 Hz – 16 kHz (+1 dB, -3 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.3% at Rated Output |
| Signal-to-Noise Ratio (SNR) | > 70 dB |
| Internal Monitor Speaker | 5W High-Clarity Acoustic Loudspeaker |
| Physical Connectors | 1 × RJ45 LAN Port, 1 × Line In, 1 × Line Out, 1 × USB Port, 1 × 3.5mm Monitor Out, 1 × Control In, 2 × Control Out |
| Paging Modes | Single Zone, Multi-Zone, Group Paging, All-Call, Two-Way Intercom |
| Operating Temperature | -5°C to +40°C |
| Operating Humidity | 10% – 90% Non-Condensing |
| Power Supply | 12V DC External Power Adapter |
| Power Consumption | ≤ 10 Watts |
| Chassis Dimensions | 250 mm × 163 mm × 42 mm (Excluding Gooseneck) |
| Net Weight | 2.2 kg Industrial Metal Console |
Frequently Asked Questions
What is the primary function of the CMX DI-9700TM IP Paging Microphone?
The CMX DI-9700TM is a centralized IP network remote paging console used in commercial IP PA systems. It allows operators to initiate live voice announcements, trigger pre-recorded emergency voice alarms, and route background music across up to 6,000 individual or grouped speaker zones over standard Ethernet LAN/WAN networks.
Can the DI-9700TM communicate with other paging consoles?
Yes. The DI-9700TM features built-in full-duplex two-way intercom capability, allowing operators at different security desks, control centers, or gate stations to talk directly with one another over the network with complete hands-free audio clarity.
How does the built-in 7-inch touchscreen simplify zone selection?
The 7-inch color touchscreen provides a clear graphical user interface where operators can tap individual zones, select pre-configured zone groups, or trigger all-zone broadcasts with a single touch, eliminating the need for complex external push-button selector racks.
Can external audio or pre-recorded messages be broadcast through the microphone?
Yes. The unit is equipped with a USB port for playing pre-recorded announcements and voice evacuation files, as well as a 3.5mm line audio input to stream music or alerts from external media players directly into designated speaker zones.
What network infrastructure is required to install the DI-9700TM?
The DI-9700TM operates on standard 10/100Mbps TCP/IP networks via a standard RJ45 port. It can be installed at any network drop point across the local area network (LAN) and uses 12V DC power for dependable 24/7 continuous operation.
