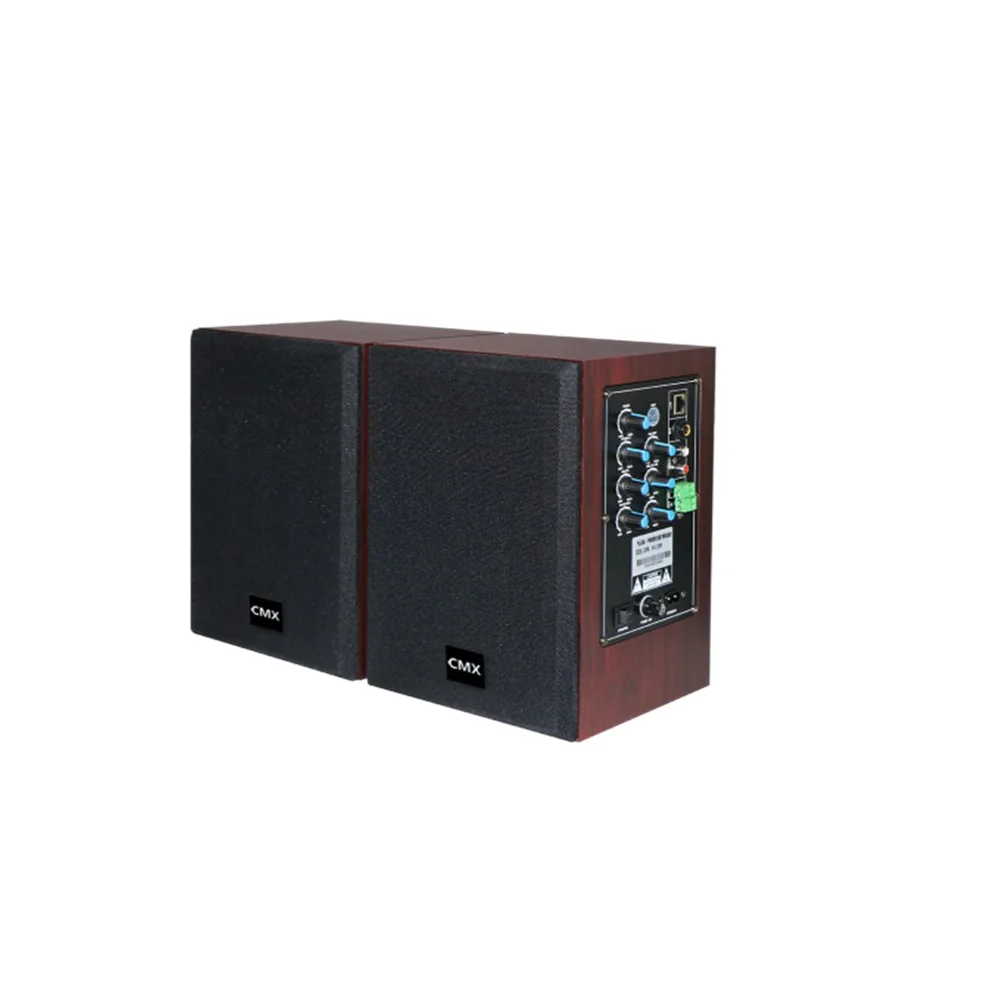

CMX DI-9723 & DI-9723F IP Network Powered Speaker
Wall Mount Commercial IP Network Active & Passive Powered Speaker System (20W + 20W) with Built-In IP Decoder, Digital Stereo Amplifier, RJ45 Interface, Aux/Mic Inputs, and 2-Way 6.5″ + 1.5″ Drivers for Classroom and Facility Paging
The CMX DI-9723 & DI-9723F is an enterprise-grade IP network powered wall mount loudspeaker package engineered for decentralized multi-room commercial audio, automated bells, and zonal public address. Featuring an all-in-one active master loudspeaker (DI-9723) with an integrated IP audio decoder and a 20W + 20W digital amplifier that powers the accompanying passive companion unit (DI-9723F), this system eliminates dedicated audio cabling by operating over existing LAN/WAN Ethernet infrastructure. Encased in high-density wooden cabinets with 6.5-inch woofers and 1.5-inch tweeters, and offering local microphone and auxiliary inputs with hardware tone adjustment, the DI-9723 set is the premier IP audio solution for educational classrooms, hospitals, detention facilities, and multi-room commercial estates.
Ideal For
Core Engineering Features
All-in-One IP Network Decoding & Amplification
Integrates an IP hardware decoder, high-efficiency stereo Class-D digital amplifier (20W + 20W), and acoustic speaker drivers into a single master enclosure, requiring only a single standard CAT6 Ethernet connection.
Decentralized 600-Zone IP Audio Scalability
Seamlessly communicates with CMX centralized IP audio server software and paging stations to distribute background music, scheduled bell timetables, and emergency broadcasts to up to 600 independent network zones.
Acoustic 2-Way Wooden Speaker Architecture
Crafted from resonant high-density wood with protective fabric grilles, housing a 6.5-inch dynamic long-throw mid-bass woofer and a 1.5-inch silk dome tweeter for pristine vocal clarity and full-fidelity audio reproduction.
Independent Local Room Mic & Aux Connectivity
Equipped with dedicated local microphone and 3.5mm/RCA auxiliary audio inputs, alongside physical rotary attenuators for Master volume, Bass, Treble, and Echo, enabling local classroom presentation use without network dependency.
Single-Cable RJ45 LAN/WAN Compatibility
Operates seamlessly over standard non-dedicated enterprise TCP/IP networks via RJ45 10/100Mbps Ethernet, eliminating the high installation costs of legacy copper speaker cabling and conduit runs.
Fail-Safe Analog 100V Auto-Standby Backup
Features optional analog 100V input integration that automatically transitions the loudspeaker to emergency analog public address operation in the unlikely event of network interruption or LAN switch power loss.
Technical Specifications
| Parameter | Details |
|---|---|
| Model / Package | CMX DI-9723 (Active Master) + DI-9723F (Passive Companion) |
| Brand | CMX Audio |
| Product Category | IP Network Powered Active & Passive Wall Speaker System |
| Rated Power Output | Stereo 20W + 20W (40 Watts Total RMS System Power) |
| Acoustic Speaker Driver | 6.5-Inch Dynamic Woofer + 1.5-Inch Silk Dome Tweeter (2-Way) |
| Enclosure Construction | Acoustically Tuned High-Density Wooden Cabinet with Fabric Grille |
| Network Communication Interface | Standard RJ45 Ethernet Port (10 / 100 Mbps Auto-Sensing) |
| Network Communication Protocols | TCP/IP, UDP, IGMP, ARP |
| Audio Stream Formats | MP3, MP2 Broadcast Quality Decoding |
| Audio Sampling Rate | 8 kHz – 48 kHz (16-Bit Stereo CD Quality Level) |
| Frequency Response | 20 Hz – 16 kHz (+1 dB, -3 dB) |
| Signal-to-Noise Ratio (SNR) | > 70 dB |
| Total Harmonic Distortion (THD) | ≤ 0.3% at Rated Output |
| Local Audio Inputs | 1 × RCA / 3.5mm Aux Input (400mV), 1 × Dedicated Microphone Input |
| Hardware Tone & Volume Controls | Master Volume, Treble, Bass, Echo, and Silent Mode Attenuators |
| External Speaker Output | One 20W Speaker Terminal to Drive Passive Companion (DI-9723F) |
| System Status Indicators | LED Power and Network Link / Activity Status Indicators |
| Operating Power Supply | AC 220V – 240V / 50Hz Standard Mains |
| Operating Environmental Range | Humidity: 20% – 80% Non-Condensing; Temp: -5°C to +40°C |
| Enclosure Dimensions | 260 mm (W) × 140 mm (D) × 188 mm (H) per Speaker |
| Total System Weight | 6.0 kg (Complete Active + Passive Set) |
Frequently Asked Questions
How does the CMX DI-9723 & DI-9723F speaker package function as an IP audio system?
The CMX DI-9723 is an active IP network master speaker containing an onboard IP audio decoder, RJ45 network port, and 20W+20W digital stereo amplifier. It connects directly to your standard building LAN/WAN network. It receives digital audio streams from the CMX IP audio management server or IP paging microphones (such as DI-9700TM) and powers both itself and the included passive companion loudspeaker (DI-9723F).
Do I need to run special speaker cables back to a central amplifier rack?
No. The greatest advantage of the DI-9723 IP speaker system is that it eliminates centralized amplifier racks and long copper speaker cable runs. You only connect a standard CAT6 network cable to the DI-9723 master unit and plug it into local AC mains. The master then connects to the companion speaker (DI-9723F) using a short local speaker wire within the room.
Can teachers or presenters connect local audio devices or microphones inside the room?
Yes. The active DI-9723 master loudspeaker features onboard local microphone and auxiliary (RCA/3.5mm) inputs along with dedicated physical volume, bass, treble, and echo knobs. Presenters can plug in laptops, tablets, or wireless mic receivers to use the speakers locally without routing audio through the central server.
How many zones can be configured with CMX IP network speakers?
The system supports up to 600 independently addressable IP speaker zones across the enterprise network. Each classroom, corridor, or office suite can be paged individually, in custom user groups, or across all zones simultaneously.
What happens to the speakers if there is an IP network failure?
The CMX DI-9723 includes an optional 100V analog fail-safe input. If network connectivity is lost, the loudspeaker can automatically switch over to a secondary analog 100V PA line, ensuring critical voice evacuation and emergency notifications are never compromised.
