Ahuja ACM-96 Single Zone Desktop Paging Microphone
Original price was: Rs.5,041.00.Rs.3,826.00Current price is: Rs.3,826.00. Price Excluding TAX
► Unidirectional Dynamic Cartridge: Delivers crisp speech intelligibility while rejecting ambient room noise.
► Flexible 300mm Gooseneck: Enables effortless angular positioning for seated and standing podium announcers.
► Die-Cast Aluminium Base: Weighted heavy-duty desktop housing prevents accidental shifting on reception desks.
► Dual Switching Operation: Features lockable TALK toggle for continuous speeches and momentary PTT push.
► Visual LED Indicator: Clear illumination confirms live microphone status preventing silent broadcast operator errors.
► Shielded 6-Meter Cable: Includes low-noise twin-core shielded lead terminating in standard 6.3mm phone plug.
► Speech-Tailored Response: Tuned 50Hz–10,000Hz frequency curve guarantees intelligible announcements without vocal boominess.
► Commercial PA Compatibility: Seamlessly interfaces with all Ahuja and standard commercial 600Ω mixer amplifiers.

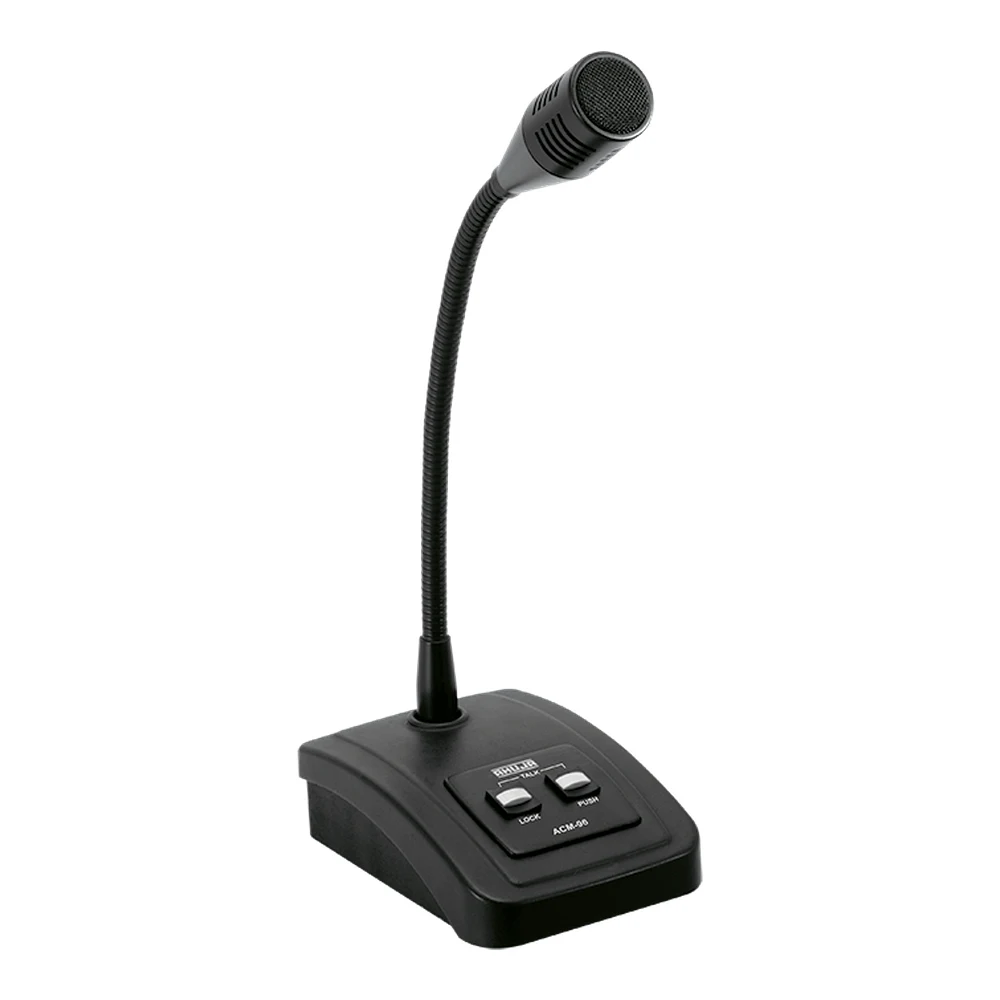

Ahuja ACM-96 Single Zone Desktop Paging Microphone
Heavy-Duty Aluminium Die-Cast Desktop Gooseneck Paging Microphone with Dual TALK & PTT Switches
The Ahuja ACM-96 is an industrial-grade single-zone desktop paging microphone engineered specifically for clear public address announcements, commercial dispatching, and broadcast installations. Featuring a rugged aluminium die-cast base, high-reliability dual switching (lockable TALK and momentary PTT), an integrated live status LED, and a flexible 300 mm (12″) gooseneck with a unidirectional dynamic cartridge, the ACM-96 ensures articulate voice clarity across any commercial acoustic environment.
Ideal For
Core Engineering Features

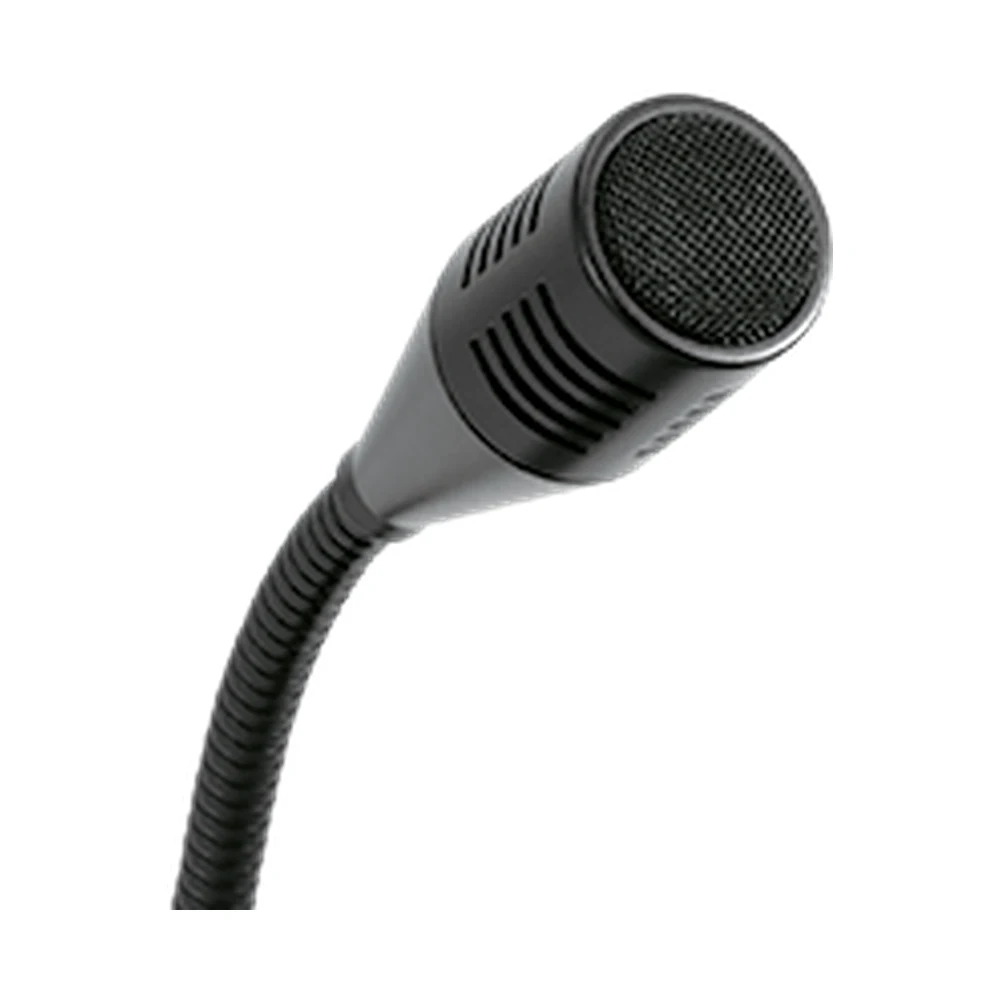

Unidirectional Dynamic Cartridge
Fitted with a professional-grade cardioid dynamic element tuned from 50Hz to 10,000Hz, delivering natural vocal reproduction and clear announcement projection while suppressing unwanted background room reverberation and feedback.
Flexible 300mm (12″) Gooseneck
Built with an industrial-grade flexible steel gooseneck arm that allows rapid, smooth multi-angle positioning for seated or standing operators, retaining position without mechanical drooping over years of continuous commercial service.

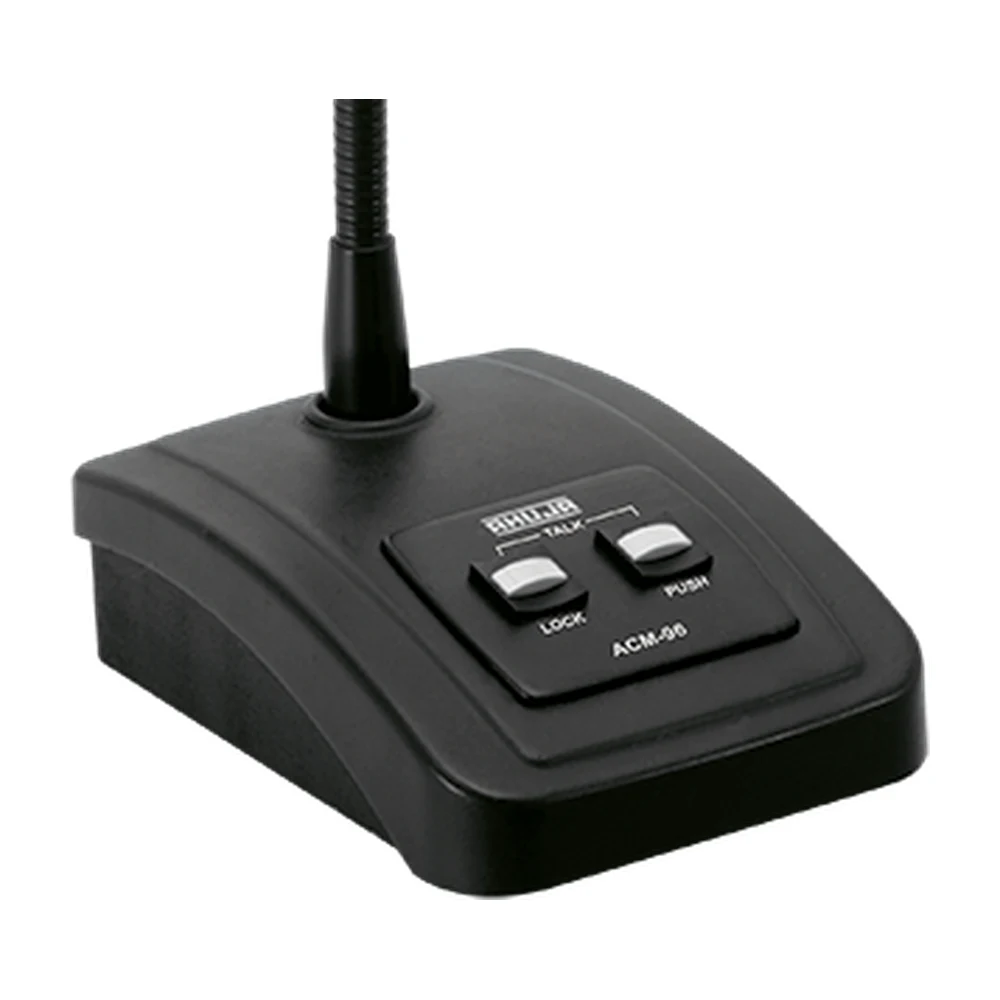

Rugged Die-Cast Aluminium Base
Engineered with a heavy die-cast aluminium upper housing and an acoustically damped weighted chassis with anti-skid rubber feet, preventing accidental displacement on slick reception desks and eliminating desk vibration pickup.
Dual Switching (Lockable TALK & Momentary PTT)
Features high-reliability industrial rocker switches: a lockable TALK switch for uninterrupted presentations or emergency broadcasts, and a momentary PUSH switch for brief dispatch calls, backed by an integrated LED status indicator.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Ahuja |
| Model Number | ACM-96 |
| Product Category | Single Zone Desktop Paging Microphone |
| Transducer Type | Unidirectional Dynamic Acoustic Cartridge |
| Polar Pattern | Cardioid (Unidirectional Speech Pickup) |
| Frequency Response | 50 Hz – 10,000 Hz |
| Sensitivity | 2.0 mV/Pa (-54 dBV/Pa) |
| Nominal Impedance | 600 Ω |
| Gooseneck Length | 300 mm (12 Inches) |
| Base Construction | Aluminium Die-Cast Top with Weighted Sub-Chassis |
| Switching Mechanism | Lockable TALK Switch & Momentary Press-to-Talk (PTT) Switch |
| Visual Indicator | Integrated Live Status LED |
| Supplied Cable | 6 Metres Twin-Core Low-Noise Shielded Cable |
| Output Connector | 6.35 mm (1/4″) Phone Plug |
| Base Dimensions | Approx. 15.2 × 12.7 × 5.0 cm (Base); 38.1 cm Total Height |
| Net Weight | Approx. 0.56 kg (Excluding Cable Pack) |
| Operating Environment | Commercial Indoor (0°C to 50°C) |
| System Compatibility | Ahuja Mixer Amplifiers, Booster Amplifiers & Standard 600Ω PA Inputs |
Frequently Asked Questions
What is the primary difference between the Ahuja ACM-96 and ACM-96CH?
The Ahuja ACM-96 is a dedicated single-zone paging microphone equipped with a lockable TALK switch and a momentary Press-to-Talk (PTT) switch. The ACM-96CH variant adds a built-in multi-tone electronic chime generator powered by 2× 1.5V UM-3 pencil cells, with an underside chime volume adjustment preset.
Can the Ahuja ACM-96 connect directly to any commercial mixer amplifier?
Yes. The ACM-96 comes standard with a 6-metre twin-core shielded low-noise cable terminating in a 6.35 mm (1/4″) mono phone plug. It interfaces directly with the standard 600-ohm microphone input channels of any Ahuja PA amplifier (such as the SSA, SSB, TZA, or BR series) or third-party commercial audio mixers.
Does the Ahuja ACM-96 require phantom power or external batteries?
No. The ACM-96 utilizes a high-efficiency passive dynamic cartridge that requires no external batteries or +48V phantom power. The integrated LED status indicator is powered directly via the internal micro-switching circuit when connected to standard microphone inputs, providing true plug-and-play simplicity.
How does the dual switching operation benefit commercial dispatch operators?
The dual-switch design provides total operational flexibility: operators can press and hold the momentary PUSH button for rapid, intermittent spot announcements (e.g., paging a customer or employee), or toggle the lockable TALK switch into position for continuous, hands-free speech delivery during long meetings or public safety broadcasts.
Can the supplied 6-metre microphone cable be extended for longer distances?
Yes. Because the microphone output has a nominal impedance of 600 ohms and utilizes twin-core shielded low-noise cabling, you can extend the lead using balanced microphone cable up to 50+ metres without noticeable high-frequency loss or electromagnetic interference.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Weight | 0.56 kg |
|---|---|
| Dimensions | 15.2 × 12.7 × 38.1 in |
| Brand | Ahuja |
| Model | ACM-96 |
| Microphone Type | Single Zone Desktop Paging Microphone |
| Cartridge Type | Dynamic |
| Polar Pattern | Unidirectional (Cardioid) |
| Frequency Response | 50 Hz – 10,000 Hz |
| Sensitivity | 2.0 mV/Pa (-54 dBV/Pa) |
| Impedance | 600 Ω (Nominal) |
| Gooseneck Length | 300 mm (12 Inches) Flexible Steel |
| Base Material | Heavy Aluminium Die-Cast Top with Weighted Base |
| Switching Controls | Lockable TALK Switch + Momentary Press-to-Talk (PTT) Switch |
| Status Indicator | Integrated Visual LED Indicator |
| Cable Type | Twin-Core Low-Noise Shielded Cable |
| Cable Length | 6 Metres (~20 Feet) |
| Output Connector | 6.35 mm (1/4") Phone Plug |
