CMX PA-6000RM – 6 Zone Paging Microphone
► Dedicated 6-Zone Commercial Remote Paging Microphone for CMX PA-6000 Series Matrix Amplifiers
► Direct Long-Distance Communication Up to 200 Meters Over Standard Straight CAT6 Cabling
► Supports Up to 6 Remote Paging Microphones Cascaded Simultaneously in Loop Connection
► Versatile Paging Modes: Individual 6-Zone Selection, Zone Grouping & Universal ‘All-Zone’ Call
► Illuminated Zone Push-Buttons with Distinct Visual Status Indicators for Seamless Operation
► Integrated Pre-Announcement Chime Generator to Signal Listeners Prior to Live Announcements
► Direct 24V DC Bus Power Supplied by Central Matrix Amplifier (No Local Power Adapter Needed)
► Precision Rotary Microphone Gain Level Control & Auxiliary Local Background Audio Input
► Durable Metal Desktop Console Base with Flexible High-Sensitivity Gooseneck Condenser Microphone
► Ideal for Hospitality, Multi-Floor Retail, Healthcare Facilities, Educational Campuses & Transport Hubs

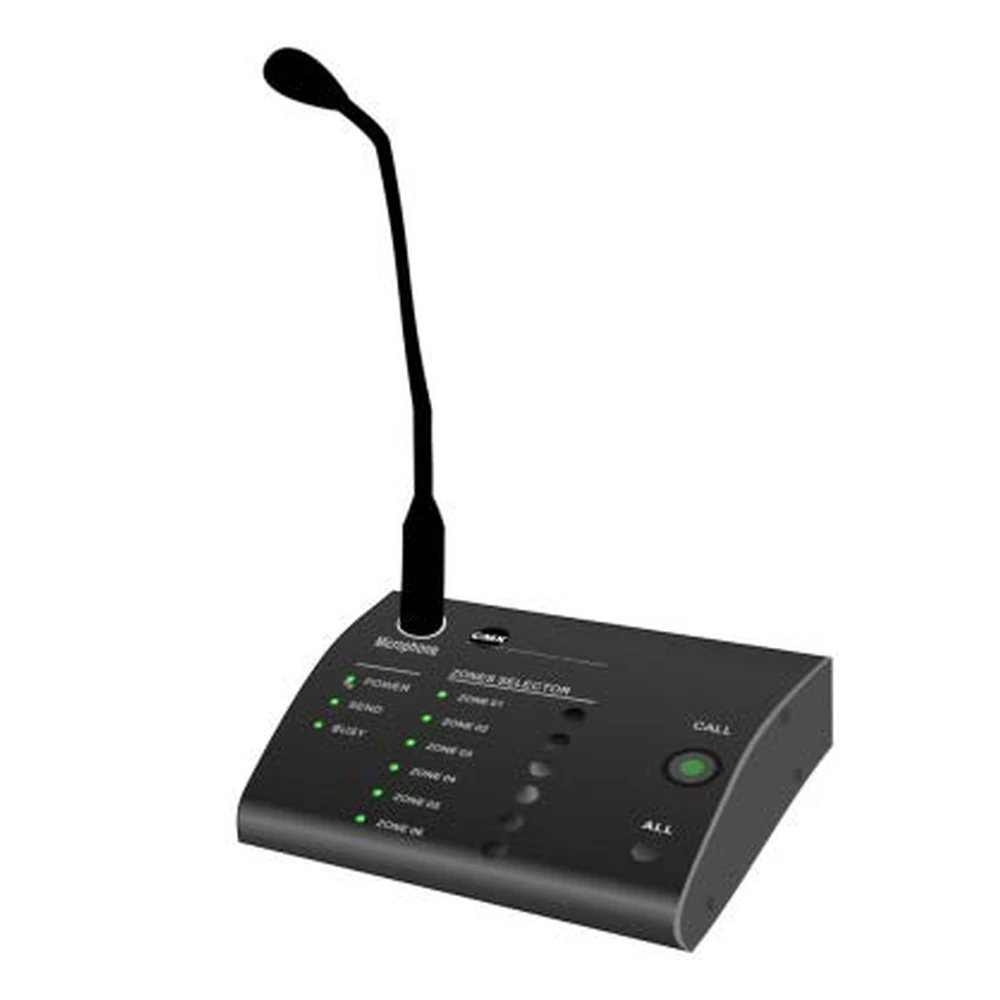

CMX PA-6000RM – 6 Zone Remote Microphone
Professional 6-Zone Desktop Remote Paging Gooseneck Microphone for CMX PA-6000 Series Matrix Amplifiers with CAT6 Daisy-Chain Connectivity Up to 200m, Individual / Group / All-Call Paging, Built-In Chime & Direct 24V DC Bus Power
The CMX PA-6000RM is a high-performance 6-zone commercial remote desktop paging gooseneck microphone engineered specifically for CMX PA-6000 series matrix mixer amplifiers (including models PA-6030MX, PA-6060MX, PA-6120MX, PA-6030MW, PA-6060MW, and PA-6120MW). Designed for executive reception desks, dispatch command centers, security control offices, and multi-department administrative stations, the PA-6000RM enables staff to direct crystal-clear live vocal announcements to any individual zone among 6 discrete speaker zones, combine zones into custom groups, or initiate universal facility-wide broadcasts via the ‘All-Zone’ paging key. Communicating over standard straight CAT6 network cabling up to 200 meters away from the central matrix host, up to 6 microphone stations can be cascaded in a simultaneous loop connection. Directly powered over the CAT6 bus by the host amplifier’s 24V DC supply, and equipped with a pre-announcement alert chime, master gain adjustment, and auxiliary audio input, the PA-6000RM provides the ultimate in commercial paging reliability.
Ideal For
Core Engineering Features
Flexible 6-Zone, Group & All-Zone Paging
Equipped with 6 individual zone selector buttons plus group and all-zone keys, allowing operators to page specific departments, multiple selected zones, or the entire building simultaneously.
Long-Distance 200-Meter CAT6 Communication
Transmits high-intelligibility vocal audio and digital control commands over standard straight CAT6 cable up to 200 meters from the central matrix amplifier with zero signal loss.
Cascaded Loop Connection (Up to 6 Units)
Supports up to 6 remote microphone consoles connected simultaneously in a daisy-chain loop architecture, allowing multiple paging stations throughout a facility.
Direct Bus Power (24V DC) from Amplifier
Draws operational 24V DC power directly through the CAT6 bus connection from the host amplifier, keeping desks free from messy power bricks and dedicated electrical outlets.
Built-In Pre-Announcement Reminder Chime
Features an integrated electronic chime tone that automatically precedes live announcements to capture listeners’ attention before speech begins.
High-Sensitivity Gooseneck Condenser Element
Fitted with a professional electret condenser gooseneck microphone and acoustic windscreen, delivering articulate voice reproduction from 80 Hz to 16 kHz.
Auxiliary Local Audio Input & Gain Adjustment
Includes a local 3.5mm line input for routing auxiliary audio content along with a precision potentiometer for dialing in perfect vocal gain levels.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX PA-6000RM |
| Brand | CMX Audio |
| Product Type | 6-Zone Commercial Desktop Remote Paging Gooseneck Microphone |
| Compatible Amplifiers | CMX PA-6000 Series Matrix Amplifiers (PA-6030MX / PA-6060MX / PA-6120MX / PA-6030MW / PA-6060MW / PA-6120MW) |
| Zone Capacity | 6 Discrete Paging Zones, Group Paging & All-Zone Call |
| System Capacity | Up to 6 Remote Microphones Cascaded in Loop Connection per Amplifier |
| Communication Interface | Dual RJ45 Ports via Straight CAT6 Cable |
| Maximum Transmission Distance | Up to 200 Meters |
| Microphone Element | Professional Electret Condenser Gooseneck Microphone with Windscreen |
| Microphone Input Sensitivity | 5 mV, 600 Ω |
| Auxiliary Audio Input | 350 mV, 10 kΩ (Local Line Source) |
| Frequency Response | 80 Hz – 16 kHz |
| Total Harmonic Distortion (THD) | < 1% at RMS, 1 kHz |
| Signal-to-Noise Ratio (SNR) | > 70 dB |
| Status Indicators | Power LED, Send LED, Busy LED, and 6 Individual Zone LEDs |
| Chime Function | Built-In Pre-Announcement Alert Chime |
| Power Supply | Direct 24V DC (±20%) Bus Power Supplied by Central Amplifier |
| Power Consumption | 3 Watts Maximum |
| Operating Temperature / Humidity | -20°C to +70°C | < 95% Non-Condensing |
| Console Base Dimensions (W × H × D) | 153 mm × 52 mm × 175 mm |
| Net Weight | 0.8 kg |
Frequently Asked Questions
Which amplifiers are compatible with the CMX PA-6000RM remote microphone?
The PA-6000RM is engineered specifically to interface with CMX PA-6000 series matrix mixer amplifiers (including models PA-6030MX, PA-6060MX, PA-6120MX, PA-6030MW, PA-6060MW, and PA-6120MW), providing seamless multi-zone paging and control over CAT6 cabling.
How many zones can be selected on the PA-6000RM?
The microphone console features 6 discrete zone selector buttons for targeted paging, as well as group and all-zone selection options to broadcast across multiple or all 6 zones simultaneously.
How many remote microphones can be connected to a single amplifier?
Up to 6 remote microphone consoles can be cascaded together in a loop connection from a single PA-6000 series matrix amplifier over straight CAT6 cable up to 200 meters away.
Does the PA-6000RM require an external power supply on the desk?
No. The microphone receives 24V DC bus power directly through the CAT6 network cable from the central matrix amplifier, eliminating the need for local power adapters or electrical outlets on the desk.
Does the microphone include a pre-call chime?
Yes. An integrated electronic chime sounds automatically when the call button is pressed, politely alerting building occupants before the operator begins speaking.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
