CMX HSK-108TSEN Loudspeaker
Original price was: Rs.40,000.00.Rs.35,799.00Current price is: Rs.35,799.00. Price Excluding TAX
► EN54-24 Compliant Life Safety & Voice Evacuation (EVAC) Certified Loudspeaker
► Powerful 160W RMS Continuous Output & 300W Peak High-Performance Amplification
► Two-Way Coaxial System: 8-Inch Waterproof Woofer & 3-Inch Precision Compression Tweeter
► Ultra-Wide Sound Coverage: 180° Horizontal × 90° Vertical Acoustic Dispersion
► Built-In 100V / 70V Line Transformer with Multi-Power Taps (160W, 80W, 40W) & 8Ω Bypass
► High Acoustic Output: 98 dB Sensitivity (1W/1m) with Maximum 108 dB Peak SPL
► Fireproof Ceramic Terminal Block, 95°C Fire-Resistant Cabling & Thermal Safety Fuse
► IP66 Extreme Weatherproof Construction with UV-Protected ABS Housing & Aluminum Grille
► Included Heavy-Duty U-Shaped Stainless Steel Wall / Pole Mounting Bracket
CMX HSK-108TSEN Loudspeaker
EN54-24 Certified 160W RMS (300W Peak) 8″ 2-Way Coaxial Fireproof All-Weather Horn Loudspeaker with IP66 Rating, 180° × 90° Wide Dispersion, 100V/70V/8Ω Multi-Taps & Heavy-Duty Stainless Steel Mounting Bracket
The CMX HSK-108TSEN is a high-power EN54-24 certified 2-way coaxial all-weather horn loudspeaker engineered for critical voice evacuation (EVAC), emergency paging, and premium foreground/background audio in large outdoor and semi-outdoor venues. Delivering an impressive 160W RMS (300W peak) through a waterproof 8-inch low-frequency driver and a coaxial 3-inch high-frequency tweeter, the HSK-108TSEN achieves remarkable speech intelligibility and dynamic music playback up to 108 dB peak SPL. Certified to European EN54-24 life-safety fire standards, the unit is constructed with a ceramic connector block, thermal safety fuse, 95°C fire-rated internal cabling, and an IP66 dust-tight and high-pressure water-jet resistant UV-stabilized enclosure. Accompanied by a heavy-duty stainless steel U-bracket, it offers dependable wide-angle (180° × 90°) sound projection for sports stadiums, arenas, transport hubs, theme parks, and industrial campuses.
Ideal For
Core Engineering Features
EN54-24 Certified Voice Evacuation (EVAC)
Officially certified to EN54-24 international life safety standards, featuring fireproof ceramic terminal connections, thermal fuse protection, and 95°C heat-resistant cabling to maintain emergency voice clarity during critical fire alarm events.
Two-Way Coaxial 8″ Woofer & 3″ Tweeter
Combines an 8-inch high-excursion waterproof polypropylene woofer with an integrated coaxial 3-inch precision compression tweeter, delivering seamless full-range audio from 80 Hz to 20 kHz with 98 dB sensitivity.
Ultra-Wide 180° × 90° Acoustic Dispersion
Acoustically contoured horn architecture projects sound across an expansive 180-degree horizontal by 90-degree vertical dispersion angle, drastically minimizing the number of speaker units needed to cover vast open spaces.
160W Multi-Tap 100V/70V Transformer & 8Ω Bypass
Built-in low-insertion-loss transformer provides selectable power taps at 160W, 80W, and 40W for 100V/70V distributed commercial PA systems, along with an 8-Ohm direct bypass for low-impedance power amplifiers.
IP66 All-Weather Extreme Ingress Protection
Rated IP66 for complete dust tightness and high-pressure water jet resistance. Its UV-stabilized ABS enclosure and powder-coated aluminum alloy grille withstand severe tropical rains, coastal salinity, and extreme temperatures from -22°C to +55°C.

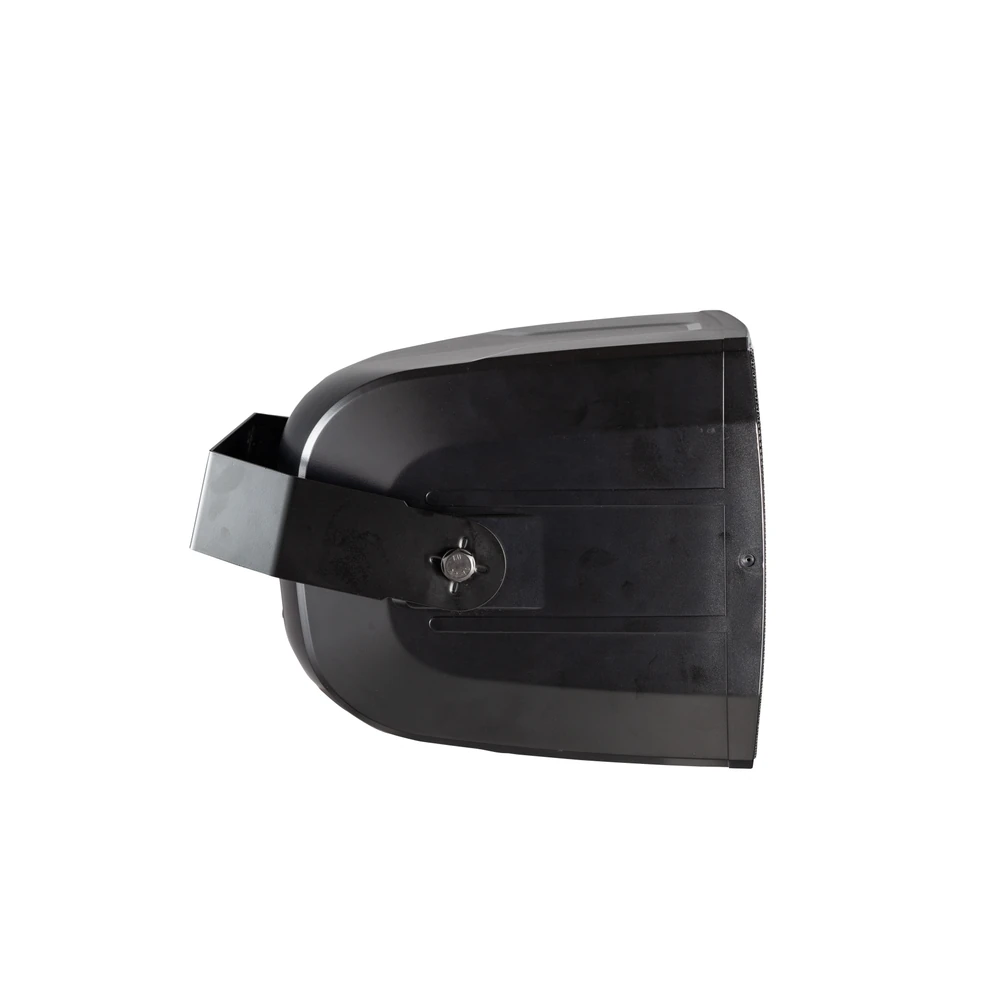

Heavy-Duty Stainless Steel U-Bracket
Supplied with an industrial-grade U-shaped stainless steel mounting bracket and hardware, providing rigid, multi-angle tilt and swivel alignment on walls, steel columns, or outdoor lighting poles.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX HSK-108TSEN |
| Brand | CMX Audio |
| Product Type | EN54-24 Certified 8″ 2-Way Coaxial All-Weather Horn Loudspeaker |
| Safety Compliance | EN54-24 Voice Alarm & Fire Evacuation (EVAC) Standard |
| Continuous Power Output | 160 Watts RMS |
| Maximum Power Output | 300 Watts Peak |
| Nominal Impedance | 8 Ohms |
| Line Voltage Inputs | 100V / 70V Commercial Distributed Lines & 8Ω Direct Bypass |
| Power Tappings (100V/70V) | 160W / 80W / 40W & 8Ω Direct |
| Speaker Driver Configuration | Waterproof 8-Inch Low-Frequency Woofer + Coaxial 3-Inch High-Frequency Tweeter |
| Acoustic Dispersion | Horizontal: 180° | Vertical: 90° |
| Frequency Response | 80 Hz – 20 kHz |
| Sensitivity (SPL @ 1W/1m) | 98 dB |
| Maximum Sound Pressure Level (Max SPL) | 108 dB Peak |
| Ingress Protection Rating | IP66 (Dust-Tight & High-Pressure Water Jet Proof) |
| Operating Temperature Range | -22°C to +55°C |
| Fire Safety Components | Ceramic Terminal Connector, 95°C Fire-Resistant Internal Wiring, Thermal Fuse |
| Enclosure Material | UV-Protected High-Impact ABS Housing with Aluminum Alloy Front Grille (Black) |
| Mounting Hardware | U-Shaped Stainless Steel Mounting Bracket Included |
| Dimensions (W × D × H) | 330 mm × 255 mm × 310 mm |
| Net Weight | 9.5 kg |
Frequently Asked Questions
What does the EN54-24 certification mean for the CMX HSK-108TSEN?
EN54-24 is the mandatory European standard for loudspeakers used in voice alarm and emergency evacuation systems (EVAC). The HSK-108TSEN is engineered with fireproof ceramic terminals, a thermal safety fuse, and fire-resistant cabling to ensure that emergency broadcast messages remain audible and operational during fire conditions.
Can the HSK-108TSEN be used in open outdoor sports fields during heavy monsoon rainfall?
Yes. The HSK-108TSEN has a certified IP66 weatherproofing rating, meaning it is completely dust-tight and impervious to powerful water jets, torrential rain, and harsh seasonal humidity. Its UV-resistant ABS cabinet and aluminum alloy grille prevent corrosion and degradation over years of outdoor exposure.
How does the 2-way coaxial driver system improve sound quality over traditional horn speakers?
Unlike standard single-driver paging horns that only reproduce narrow mid frequencies, the HSK-108TSEN features an 8-inch woofer combined with a coaxial 3-inch tweeter. This design delivers a wide full-range frequency response (80 Hz to 20 kHz) with excellent bass reproduction and high-frequency sparkle, making it outstanding for both high-clarity voice paging and full-fidelity foreground music.
What power tapping options are available on 100V systems?
The rear panel rotary tap selector allows quick switching between 160W, 80W, and 40W on 100V/70V commercial lines, as well as an 8-Ohm direct bypass for low-impedance high-power audio amplifiers.
What mounting hardware is provided with the speaker?
The speaker comes complete with a rugged U-shaped stainless steel bracket that allows easy wall or column mounting, offering vertical and horizontal tilt adjustment for precise sound targeting toward spectator stands or audience zones.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
