CMX GSK-30C 30W Outdoor Landscape Garden Speaker (IP66)
► 30W RMS High-Output Driver: Delivers rich, clear outdoor background music across open lawns.
► IP66 Weatherproof Certified: Fully protected against heavy rain, dust, and continuous UV exposure.
► 360-Degree Omnidirectional Sound: Provides uniform acoustic coverage with zero outdoor dead zones.
► 6.5-Inch Coaxial Transducer: Combines robust bass punch with crisp high-frequency fidelity.
► Multi-Tap 100V/70V Transformer: Features 30W and 15W taps for long-distance cable runs.
► UV-Resistant Forest Green Body: Blends naturally into gardens, resorts, theme parks, and lawns.
► Anti-Theft Ground Mounting: Secure in-ground anchor base prevents tampering and displacement.
► Sealed Weatherproof Gland: Protects internal wiring against soil moisture and water pooling.

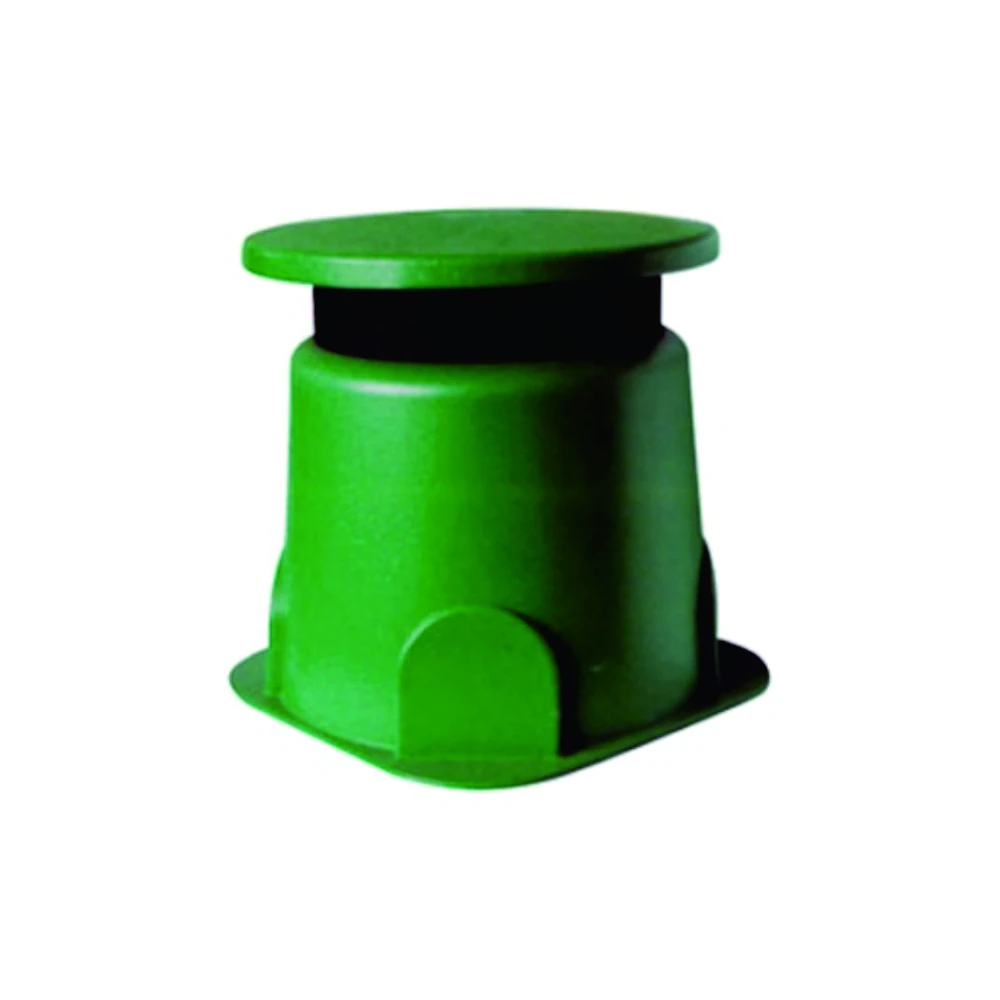

CMX GSK-30C 30W Outdoor Landscape Garden Speaker (IP66)
Severe-weather IP66 certified commercial outdoor garden speaker featuring 360-degree omnidirectional acoustic dispersion, 6.5″ coaxial waterproof driver, and integrated 100V/70V multi-tap line transformer. Designed for luxury resorts, botanical parks, villas, and theme park soundscapes.
Ideal For
- ✓ Luxury Hotel & Resort Grounds
- ✓ Public Botanical Parks & Gardens
- ✓ Theme Parks & Outdoor Attractions
- ✓ Private Estate & Villa Lawns
- ✓ Outdoor Alfresco Dining Terraces
- ✓ Golf Clubs & Country Resorts
Core Engineering Features
360-Degree Omnidirectional Sound Dispersion
Acoustically engineered with an internal conical acoustic deflector that projects sound evenly across a full 360-degree radial field, eliminating dead zones in open garden environments.
6.5″ Coaxial Waterproof Polypropylene Driver
Features a high-efficiency 6.5-inch PP cone woofer paired with a coaxial tweeter, delivering wideband frequency response (120 Hz – 15 kHz) for musical fidelity and speech intelligibility.
IP66 Certified Severe Weatherproofing
Built to withstand harsh outdoor elements, the IP66 sealed enclosure resists torrential downpours, garden sprinklers, salt fog, dust storms, and extreme seasonal temperatures.
Integrated 100V / 70V Line Transformer
Equipped with an internal multi-tap transformer supporting standard 100V and 70V commercial distributed speaker lines, enabling parallel connection of dozens of speakers over kilometer-long runs.
UV-Stabilized Camouflage Composite Enclosure
Molded from heavy-duty UV-stabilized ABS composite in natural foliage green that resists cracking, mechanical impact, and color fading under persistent tropical sunlight.
Sealed Cable Tail with Waterproof Compression Gland
Includes a pre-terminated speaker cable tail exiting through an industrial waterproof compression gland, facilitating simple, corrosion-free in-ground wiring.
Landscape Acoustic Planning & Sound Coverage Matrix
The 360-degree omnidirectional acoustic dispersion of the CMX GSK-30C radiates sound evenly in all directions. In outdoor landscape environments, each speaker delivers an optimal 8 to 10-meter effective sound radius (covering approximately 200 to 300 square meters of lawn area at 75–80 dB ambient BGM level).
| Lawn / Garden Area | Recommended Units | Power Tap Selection | Recommended Amplifier |
|---|---|---|---|
| Small Garden / Courtyard (up to 500 sq.m) | 2 Speakers | 15W Tap (30W Total) | CMX EA-30 / EA-60 |
| Medium Resort Lawn (500 – 1,200 sq.m) | 4 Speakers | 30W Tap (120W Total) | CMX EA-120T / EA-240A |
| Large Theme Park / Estate (1,500 – 3,000 sq.m) | 8 to 10 Speakers | 30W Tap (240W–300W Total) | CMX EA-500A / DA-240 |
Speaker Matching & System Compatibility
The CMX GSK-30C connects directly to standard 100V and 70V commercial mixer amplifiers. ProjecXive engineers recommended pairings:
Compact 1-Zone Systems
Ideal for private gardens, courtyard terraces, and small outdoor dining areas.
Dual-Zone & Mid-Scale Amplifiers
Enables independent indoor restaurant and outdoor garden volume controls.
High-Power Resort Soundscapes
High-headroom continuous power for large parks, perimeter pathways, and theme resorts.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX GSK-30C |
| Brand | CMX Audio |
| Product Type | Outdoor Landscape Garden Speaker (Mushroom In-Ground) |
| Rated Power Output | 30 Watts RMS |
| Maximum Power Output | 60 Watts Peak |
| Line Input Voltage | 100V & 70V Constant Voltage Distributed Lines |
| Power Tappings | 15W, 30W selectable line taps |
| Speaker Driver | 6.5″ Waterproof Polypropylene (PP) Coaxial 2-Way Driver |
| Ingress Protection | IP66 Certified Waterproof, Dustproof & Severe Weather Sealed |
| Acoustic Sound Dispersion | 360° Omnidirectional Radial Sound Field |
| Frequency Response | 120 Hz – 15 kHz (±3 dB) |
| Sensitivity (1W/1m) | 88 dB (±3 dB) |
| Maximum Sound Pressure (Max SPL) | 103 dB at rated power |
| Enclosure Material | Heavy-Duty UV-Resistant Engineering ABS Composite |
| Finish & Color | Natural Garden Foliage Green (Anti-Fade Camouflage) |
| Mounting & Anchoring | In-ground lawn stake / concrete base anchor bolt holes |
| Dimensions (Diameter x Height) | Ø 310 x 405 mm |
| Weight | 5.2 kg |
Frequently Asked Questions
What is the sound coverage area of a single CMX GSK-30C speaker?
With its 360-degree radial dispersion and 103 dB peak SPL, a single GSK-30C tapped at 30W comfortably covers a lawn or garden radius of 8 to 10 meters (approximately 200 to 300 square meters) with crystal-clear background music.
Is the CMX GSK-30C completely waterproof against lawn sprinklers and monsoons?
Yes. The GSK-30C carries an authentic IP66 ingress protection rating, engineered with a sealed composite body, waterproof polypropylene cone, and watertight cable gland that withstand direct high-pressure sprinkler water jets, tropical rainstorms, and dust.
Can I connect multiple GSK-30C speakers in parallel to a single amplifier?
Yes. Thanks to the built-in 100V line transformer, you can wire multiple speakers in parallel over long landscape cable distances without audio attenuation. Simply ensure the total wattage of all tapped speakers does not exceed 80% of the amplifier’s rated power.
How is the speaker mounted securely in garden soil or concrete paths?
The base features reinforced mounting anchor points that can be secured directly into the ground using anchoring stakes or bolted onto concrete garden footings to prevent theft or accidental displacement.
Does ProjecXive India provide genuine warranty and GST invoicing?
Yes. ProjecXive India provides 100% genuine CMX Audio commercial products with manufacturer warranty, official B2B GST tax invoice for input tax credit, and turnkey system layout assistance.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Weight | 4.8 kg |
|---|---|
| Dimensions | 28 × 28 × 35 in |
| Model | CMX GSK-30C |
| Brand | CMX Audio |
| Product Type | Outdoor Landscape Garden Speaker |
| Rated Power Output | 30 Watts RMS (Continuous) |
| Maximum Power Output | 60 Watts Peak |
| Line Input Voltage | 100V / 70V Constant Voltage Distributed Line |
| Power Tappings | 100V: 30W – 15W, 70V: 15W – 7.5W |
| Speaker Driver | 6.5-Inch Coaxial Waterproof Polypropylene (PP) Woofer & 1" Mylar Dome Tweeter |
| Ingress Protection | IP66 Certified (Dust-Tight & Heavy Rain/Jet Water Resistant) |
| Acoustic Sound Dispersion | 360-Degree Omnidirectional Horizontal Acoustic Coverage |
| Frequency Response | 120 Hz – 16 kHz |
| Sensitivity (1W/1m) | 90 dB ± 3 dB |
| Maximum Sound Pressure (Max SPL) | 105 dB |
| Enclosure Material | UV-Resistant Reinforced Heavy-Duty Fiberglass & Organic Resin |
| Finish & Color | Organic Forest Green (Natural Landscape Foliage Blending) |
| Mounting & Anchoring | Sub-Surface In-Ground Concrete Anchor Base with Anti-Theft Bolt Holes |
| Dimensions (Diameter x Height) | Ø 280 mm x Height 350 mm |
| Weight | 4.8 kg |
