Erthpot NCS-5CF Flush Mount Chairman Unit

The Definitive Command Interface for Modern Boardrooms

In enterprise discussion environments, the chairman unit acts as the authoritative interface for managing the flow of conversation. Unlike standard delegate microphones, which only allow participants to request speaking time or activate their local audio, the Erthpot NCS-5CF is equipped with advanced administrative functions. The moderator can actively steer the direction of a meeting, interject during critical moments, and maintain absolute order using the built-in priority override capability.

What truly sets the NCS-5CF apart is its flush mount architecture. Instead of resting on top of a table where cables can become tangled or units accidentally shifted, this microphone module is embedded directly into the furniture. This approach provides a sleek, uninterrupted surface that architects and interior designers demand for modern, high-end meeting spaces, while ensuring the underlying digital wired technology remains entirely hidden from view.

Engineering Excellence for Professional Conferencing

The NCS-5CF is built with uncompromising hardware quality to withstand the rigors of daily enterprise use. Its core features include:

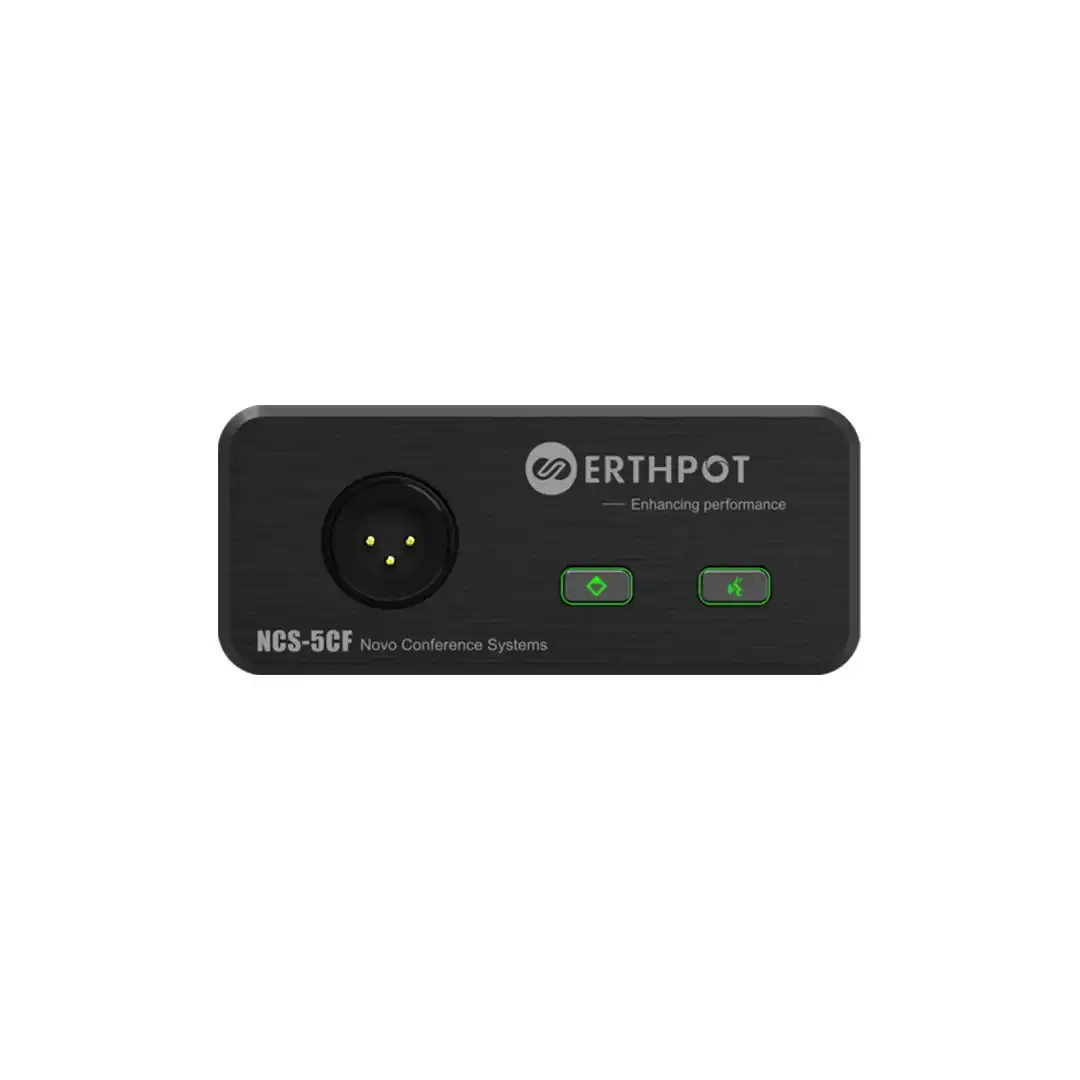

• Chairman Priority Control
  A dedicated override button grants the session leader immediate authority. Engaging this feature instantly mutes all active delegate units, eliminating cross-talk and ensuring critical announcements are clearly heard.
• Recessed Flush Mount Installation
  The unit’s enclosure is specifically designed to drop into a pre-cut cavity in a conference table. This discreet layout provides a low-profile aesthetic while permanently securing the hardware in its optimal position.
• High-Quality Copper Zinc Alloy Chassis
  Constructed from a premium copper-zinc die-cast alloy, the housing provides exceptional durability, superior RF shielding against interference, and a refined metallic finish.
• Detachable Screw-Type XLR Port
  The interface supports professional gooseneck microphones via a secure, screw-lock detachable port, preventing audio failures caused by loose connections or poor contact during active use.
• Backlit Speak and Override Buttons
  Illuminated control buttons provide immediate visual feedback regarding the microphone’s active or muted status, ensuring smooth operation even in dimly lit projection environments.

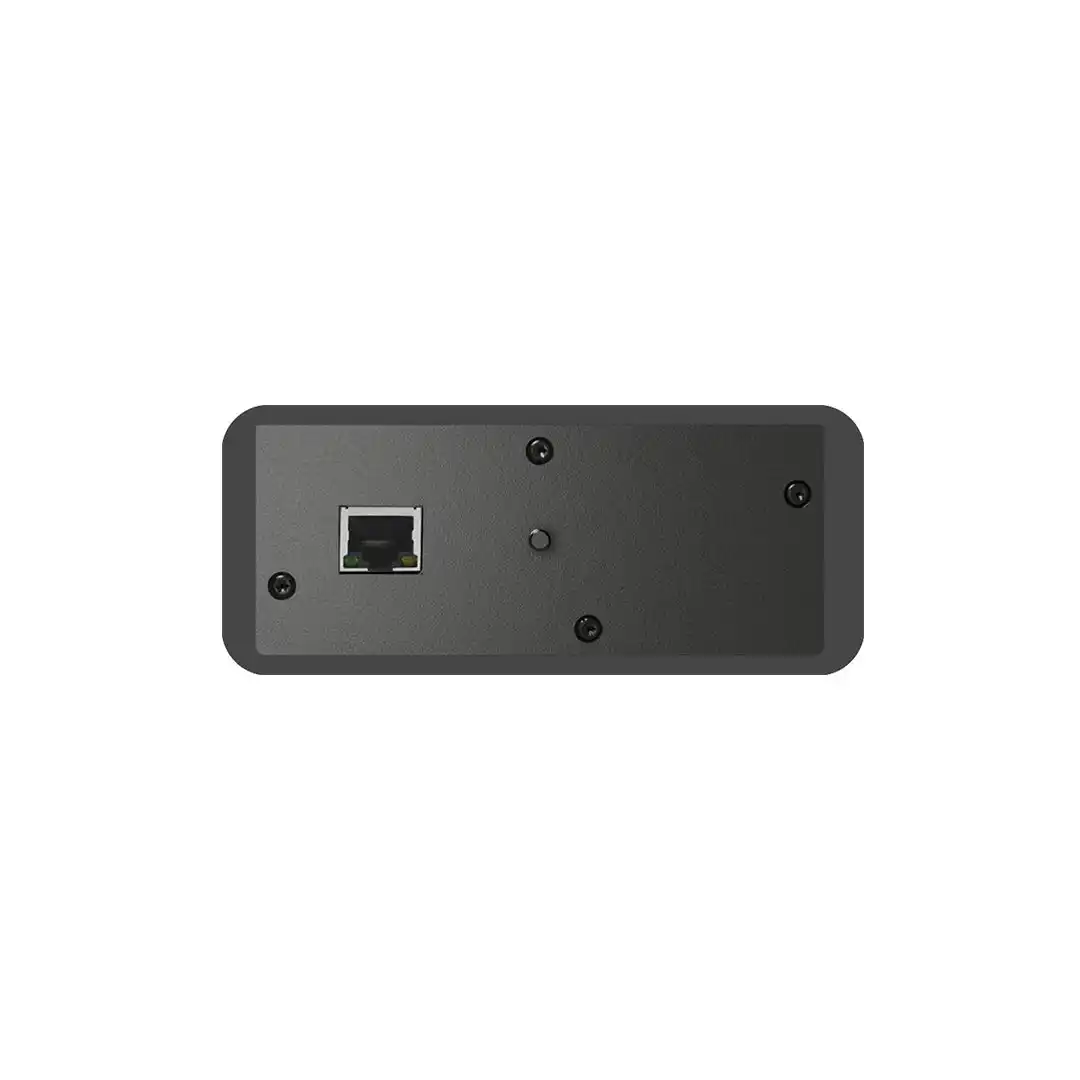

• Network Port CAT5/6 Compatibility
  Utilizing standard RJ45 networking interfaces allows for rapid, cost-effective daisy-chain deployment, passing both digital audio and necessary power across the same reliable wire.

Technical Specifications

System Architecture and Operational Flow

The NCS-5CF integrates flawlessly into the “Plug n Play” Novo Conference System. Connection is established via the built-in RJ45 network port, running standard CAT5 or CAT6 cable in a daisy-chain topology directly to the NCS110-CU Control Unit. This single-cable digital transmission method guarantees zero latency, complete immunity to wireless interference, and simultaneous power delivery (24V DC) directly from the controller to the unit.

During a live meeting, the chairman unit continuously communicates its status to the central processor. When the override function is initiated, the digital signal flow instructs the controller to forcefully close the audio gates of all corresponding delegate microphones on the network. This real-time discussion management empowers the moderator, streamlining large-scale debates and enforcing predefined conference protocols.

Ideal Deployment Scenarios

Thanks to its embedded design and superior control capabilities, the NCS-5CF is the standard for high-level institutional environments, including:

• Corporate Boardrooms: Providing executives with a clutter-free, highly capable communication tool.
• Government Meeting Rooms: Facilitating secure, hard-wired audio transmission for confidential discussions.
• Parliament & Assembly Chambers: Enabling speakers and council presidents to maintain order across massive delegate networks.
• Conference Halls: Ensuring panelists and keynote moderators possess overriding authority during Q&A sessions.
• Courtrooms: Allowing judges to instantly mute all other microphones to deliver rulings or maintain decorum.
• University Senate Rooms: Supporting structured academic debate and administrative voting sessions.
• International Meeting Facilities: Operating reliably in multi-lingual, high-stakes diplomatic summits.

The Architectural Advantage of Recessed Installation

For premium system integrators, the transition from desktop to flush mount conferencing hardware provides distinct advantages. The primary benefit is a phenomenally clean table appearance. By routing CAT5 cables entirely below the surface, the conference table remains clear of wire clutter, maintaining the designer’s original aesthetic vision.

Furthermore, recessed microphones offer a permanent, tamper-resistant installation. Participants cannot accidentally unplug, drop, or misplace the units. Once installed, the hardware remains fixed in the exact optimal acoustic position for voice capture. The durable copper-zinc alloy ensures that the faceplate withstands years of physical interaction, preserving a pristine, professional finish over the system’s lifespan.

Engineered for Integration Professionals

AV consultants globally rely on the Erthpot Novo Conference System because of its unyielding reliability and logical engineering. The “everything built into hardware” philosophy means that complex IP addressing or heavy software programming is not required to establish a secure audio network. The NCS110-CU controller automatically detects the connected NCS-5CF, enabling instant operation.

Scalability is a core component of this architecture. Integrators can confidently deploy the NCS-5CF in massive configurations, knowing the system supports daisy-chaining up to 110 microphones using standard, cost-effective networking cables (expandable via the NEB-124W Novo Extension Box). The integration of high speech intelligibility processing ensures every syllable spoken by the chairman cuts through room reverberation with pristine digital audio clarity.

Novo Conference System Ecosystem

To engineer a complete, fully functional digital conference room, the NCS-5CF Chairman Unit integrates perfectly with the following components:

• NCS-110CU Control Unit: The central processor that manages power distribution, system routing, Dante network output, and PTZ camera tracking automation.
• NCS-5D Delegate Unit: The standard desktop microphone station for meeting participants.
• NCS-5DF Flush Mount Delegate Unit: The matching recessed microphone station for delegates, providing a uniform architectural aesthetic alongside the chairman unit.

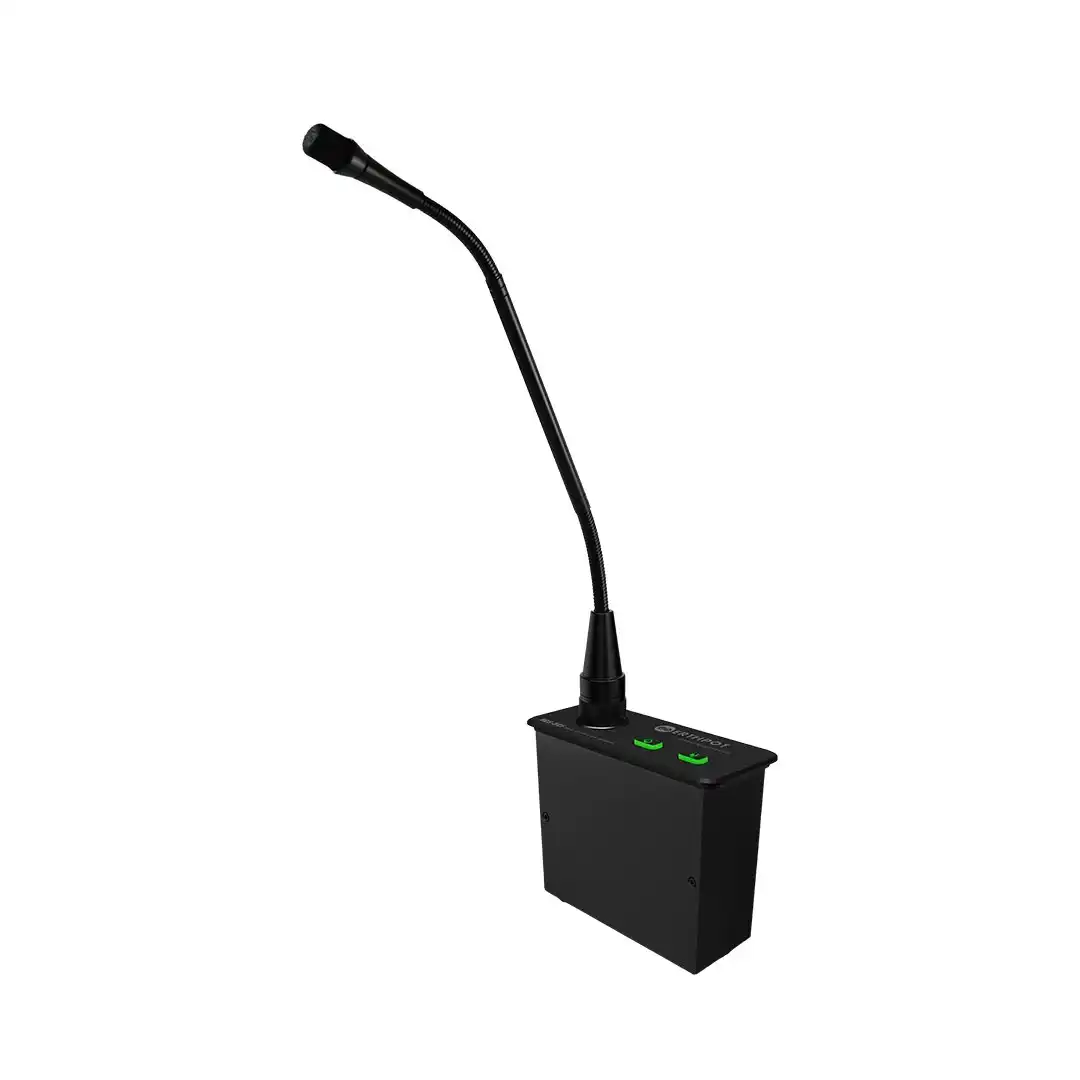

• NGM512 Shotgun & NGM516 Gooseneck Mic: The screw-type detachable port accepts Erthpot’s professional NGM512 Shotgun or NGM516 Gooseneck microphones for tailored acoustic pickup.

Elevate Your Meeting Infrastructure

The Erthpot NCS-5CF Flush Mount Chairman Unit is an indispensable tool for any professional meeting space requiring structure, authority, and pristine audio quality. By placing powerful priority control directly into an elegant, recessed copper-zinc chassis, it ensures that session leaders can navigate complex discussions without technological friction. When paired with the greater Novo Conference System, the NCS-5CF delivers the pinnacle of stable, beautifully integrated AV engineering.
