Samsung VM55C-E 55″ Extreme Narrow Bezel Commercial Video Wall Display (LH55VMCEBGBXXL)

Name: Samsung VM55C-E 55" Extreme Narrow Bezel Commercial Video Wall Display (LH55VMCEBGBXXL)
SKU: 7052
Availability: InStock

Original price was: Rs.200,000.00.Current price is: Rs.175,100.00. Price Excluding TAX

► Extreme Narrow 1.78mm Bezel

► 500 Nit Non-Glare Brightness

► 24/7 Mission-Critical Duty Cycle

► Direct UHD Daisy Chaining

► Factory Color & Uniformity Calibration

► Wide 178° IPS Viewing Angle

► Centralized RJ45 & RS232C Control

Categories: Digital Signage, Display & Monitor, Samsung, Video Wall

Description
Reviews 0

Enterprise Video Wall Solutions

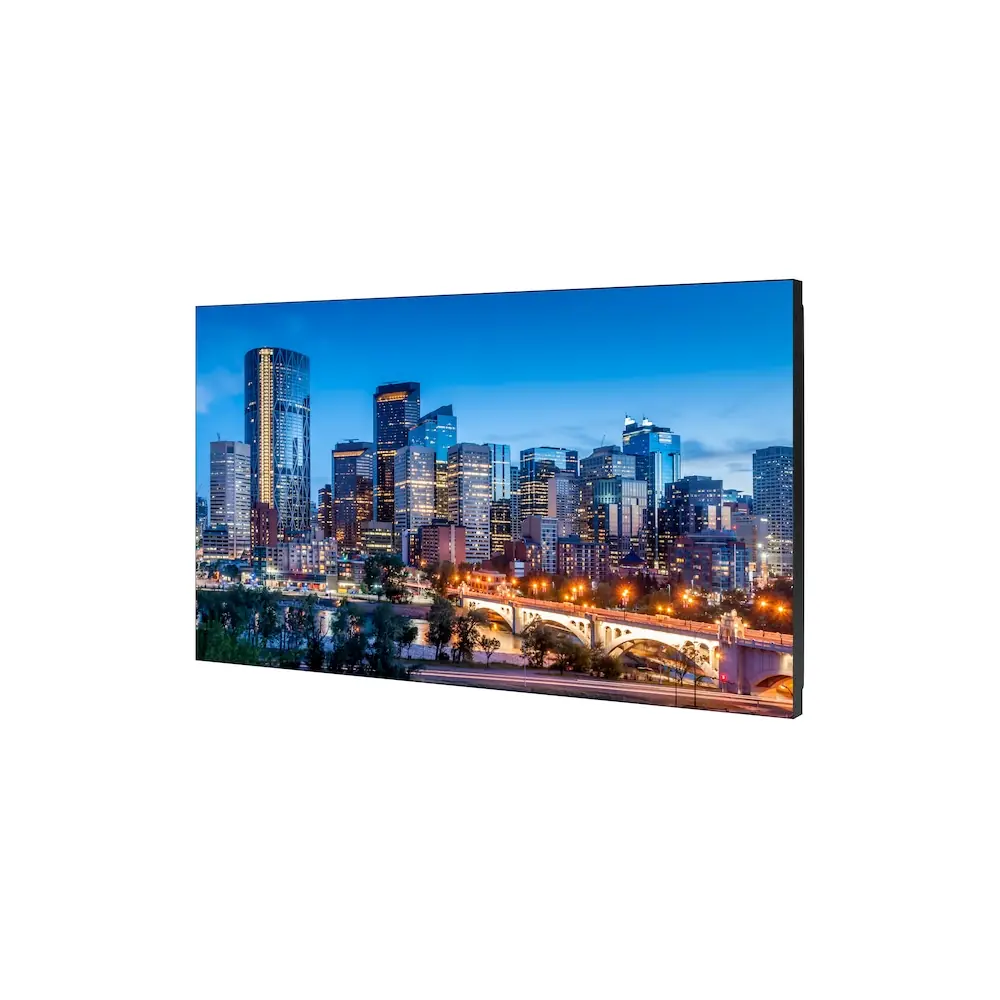

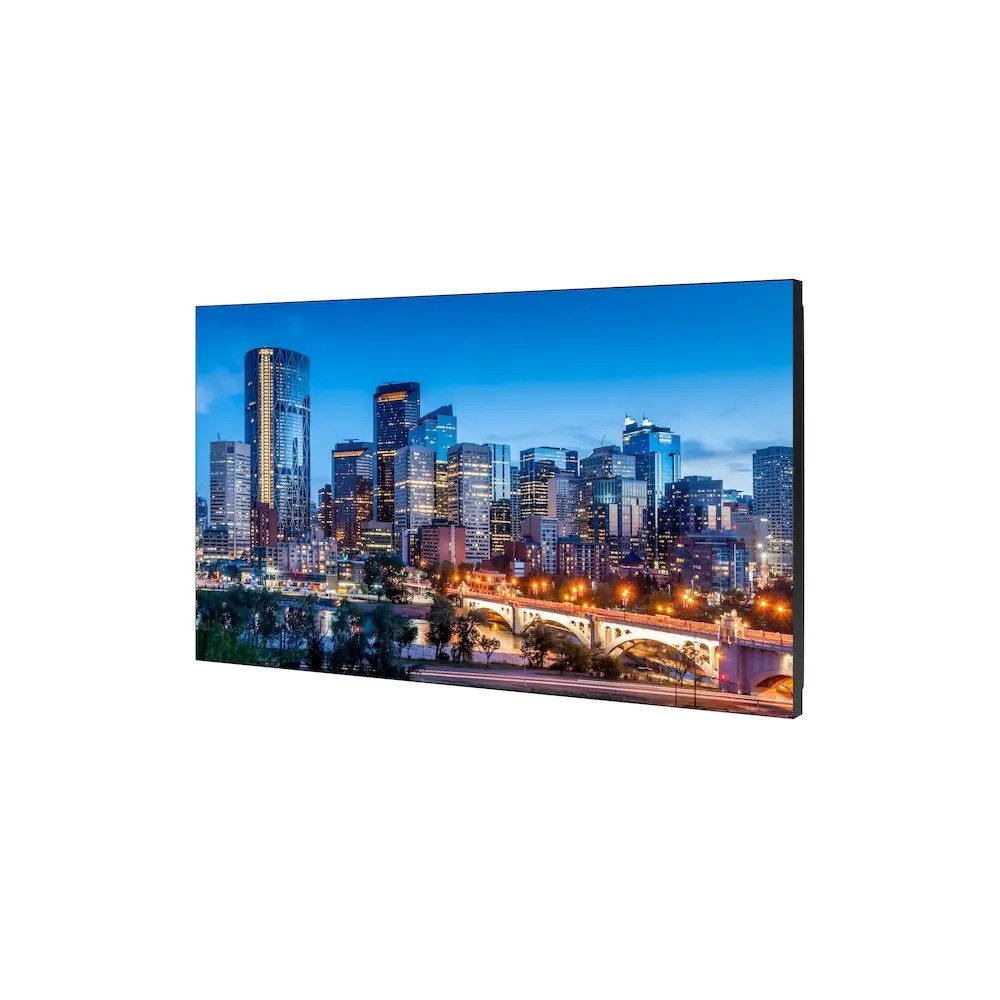

Samsung VM55C-E 55″ Extreme Narrow Bezel Commercial Display

Engineered for high-impact visual communication with ultra-slim 1.78mm bezel-to-bezel alignment, 500-nit anti-glare clarity, and 24/7 continuous operation.

Product Overview

The Samsung VM55C-E (Model: LH55VMCEBGBXXL) is a 55-inch commercial video wall display designed for command and control centers, network operations centers (NOC), corporate boardrooms, luxury retail showrooms, and transportation hubs. With an extreme narrow bezel of just 1.78 mm bezel-to-bezel (1.3 mm Top/Left, 0.4 mm Right/Bottom), the VM55C-E delivers an immersive, virtually seamless visual canvas across multi-screen matrix configurations.

Featuring an industrial 500-nit IPS non-glare panel with 28% glass haze, this display provides crisp readability and color fidelity in high-ambient-light environments. Equipped with DisplayPort 1.2 and HDMI 2.0 loop-out, system integrators can daisy-chain UHD 4K content across up to a 5×5 video wall matrix without requiring expensive external video distribution equipment.

Key Technical Specifications

Specification Parameter	Technical Specification Details
Screen Diagonal Size	55 Inches (1.38 m)
Model Code	LH55VMCEBGBXXL (VM55C-E Series)
Panel Type & Coating	Commercial IPS Panel (Non-Glare, 28% Haze)
Native Resolution	Full HD (1920 × 1080 pixels)
Brightness (Typical)	500 cd/m² (nits)
Contrast Ratio	1,000:1 (Dynamic Contrast: 100,000:1)
Bezel-to-Bezel Width	1.78 mm B2B (1.3 mm Top/Left, 0.4 mm Right/Bottom)
Viewing Angles (H/V)	178° Horizontal / 178° Vertical
Operational Reliability	24/7 Continuous Mission-Critical Rating

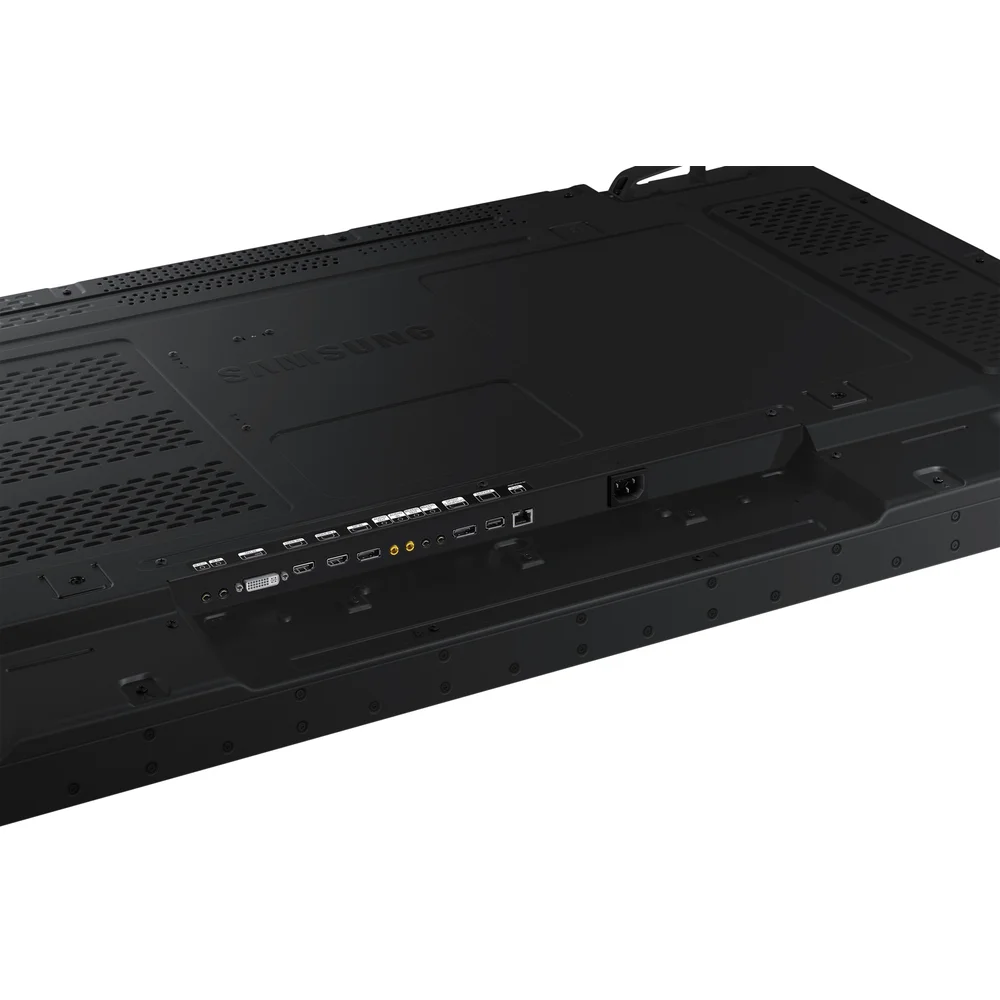

Connectivity – Inputs	2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0, 1x 3.5mm Stereo Audio
Connectivity – Outputs	1x DisplayPort 1.2 (Video Loop-Out), 1x 3.5mm Stereo Audio Out
Control Interfaces	RS232C In/Out (Stereo Jack), RJ45 (LAN) In, IR In

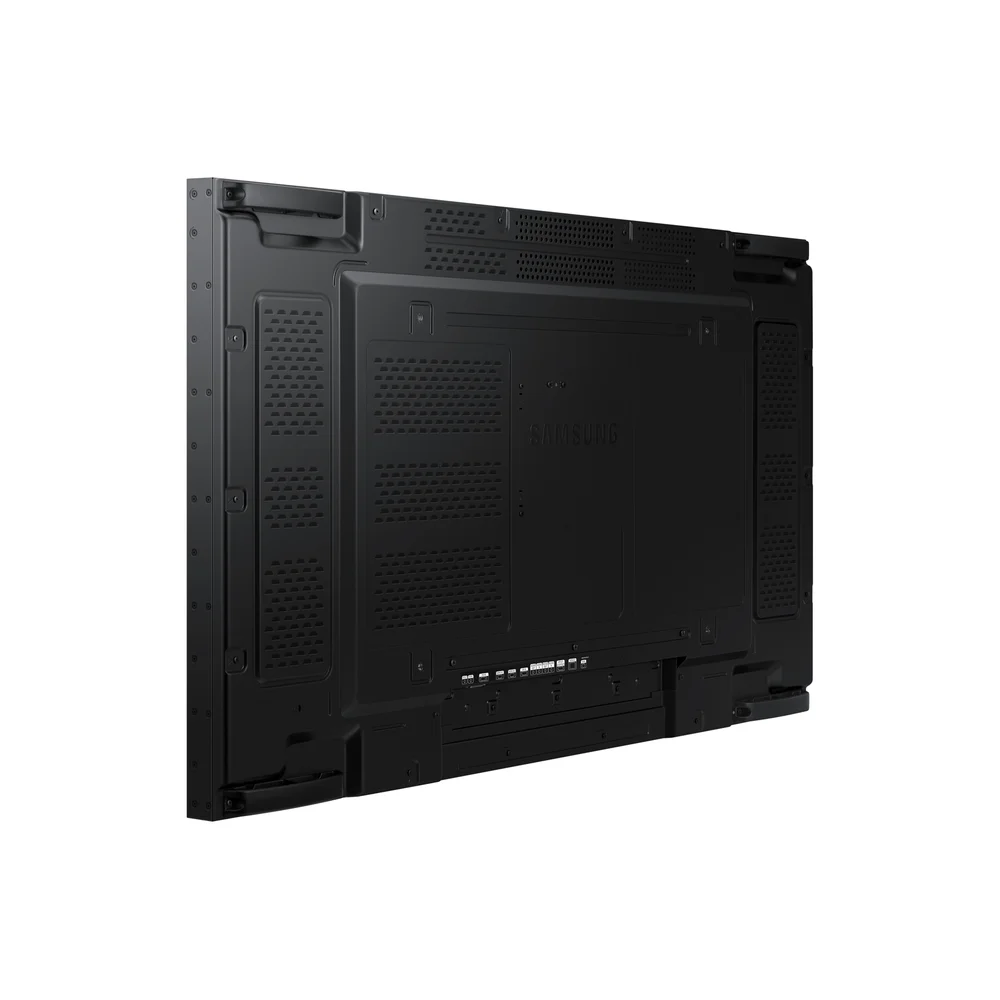

VESA Mount Interface	600 × 400 mm
Dimensions (W × H × D)	1212.2 × 683.0 × 70.4 mm
Set Weight	19.5 kg (Package: 27.1 kg)
Power Supply & Draw	AC 100-240V 50/60Hz \| Max: 220W, Typical: 143W, Standby: 0.5W

Commercial AV Application & Installation Notes

Audio De-Embedding & Line-Level Routing: Utilize the 3.5mm stereo mini-jack line output to feed balanced digital signal processors (DSP) or multi-channel commercial power amplifiers for clear speech reproduction in meeting spaces.
Acoustic Alignment with Video Arrays: For 2×2, 3×3, or 4×2 matrix video walls, pair with matched steerable column speakers flanking the display boundary or ceiling-recessed coaxial speakers to maintain precise audio-visual localization.
Push-Pull Pop-Out Mounting: Always deploy precision pop-out video wall brackets with multi-axis micro-adjustments to facilitate rapid front serviceability and prevent panel edge pressure.
Thermal & Ventilation Management: Maintain at least 50mm rear wall clearance for convection cooling when installing within recessed architectural millwork. Ensure operating ambient temperatures remain below 35°C during 24/7 duty cycles.
DisplayPort Daisy Chain Integrity: For DisplayPort 1.2 loops spanning extensive display distances, utilize certified active optical DisplayPort cables (AOC) to guarantee uninterrupted 4K@60Hz signal transmission.

Frequently Asked Questions

Can I daisy-chain 4K content without an external video wall processor?

Yes. The Samsung VM55C-E features DisplayPort 1.2 and HDMI 2.0 loop-out capabilities, allowing seamless UHD daisy-chaining across up to a 5×5 video wall configuration without requiring external video processors.

What is the exact bezel thickness of the Samsung VM55C-E?

The VM55C-E has an extreme narrow bezel-to-bezel width of 1.78 mm (1.3 mm on top and left edges, and 0.4 mm on bottom and right edges), ensuring minimal visual interruption between adjacent screens.

Is the Samsung VM55C-E rated for 24/7 continuous operation?

Yes. The VM55C-E is commercially rated for continuous 24/7 operation, making it suitable for mission-critical command centers, security control rooms, and public information displays.

Does the display come pre-calibrated from the factory?

Yes. Every Samsung VM55C-E display undergoes rigorous multi-step factory color and brightness calibration to ensure uniform appearance across all screens right out of the box.

Need System Design, Site Assessment, or Project Pricing?

Projecxive provides complete turnkey enterprise AV integration, precision pop-out video wall mounting brackets, calibration services, and certified commercial installation across India.

Contact our enterprise commercial engineering desk for custom multi-display quotes, tender specifications, and on-site demonstrations.
