CMX CSK-613HT 6.5″ 2-Way Frameless Ceiling Speaker (30W)
Original price was: Rs.6,803.00.Rs.3,899.00Current price is: Rs.3,899.00. Price Excluding TAX
► 2-Way Coaxial High-Fidelity Acoustic System
► 6.5-Inch Hi-Flex Polypropylene Woofer Driver
► 1-Inch Silk Dome High-Frequency Tweeter
► Integrated 100V / 70V Line Matching Transformer
► Multi-Tap Power Selection (30W / 15W / 7.5W)
► Ultra-Slim Magnetic Frameless Steel Grille
► Quick-Clamp Ceiling Cutout Installation (Ø205mm)
CMX Audio Solutions
CMX CSK-613HT 6.5″ 2-Way Frameless Ceiling Speaker (30W)
Commercial 100V / 70V High-Fidelity 2-Way In-Ceiling Loudspeaker with Magnetic Frameless Metal Grille
The CMX CSK-613HT is a premium 6.5-inch 2-way in-ceiling loudspeaker engineered for crystal-clear background music (BGM) and voice paging in commercial boardrooms, luxury retail stores, hotels, and educational facilities. Featuring a 6.5-inch hi-flex polypropylene woofer paired with a 1-inch silk dome tweeter, an onboard 100V line transformer with multi-tap power selection (30W-15W-7.5W), and an architecturally discreet magnetic frameless white steel grille.
Core Engineering Features
2-Way High-Fidelity Acoustic Design
Combines a 6.5-inch long-excursion polypropylene woofer with a 1-inch directional silk dome tweeter, delivering an expansive 80 Hz – 20,000 Hz frequency range with crisp vocal articulation and balanced low-end warmth.

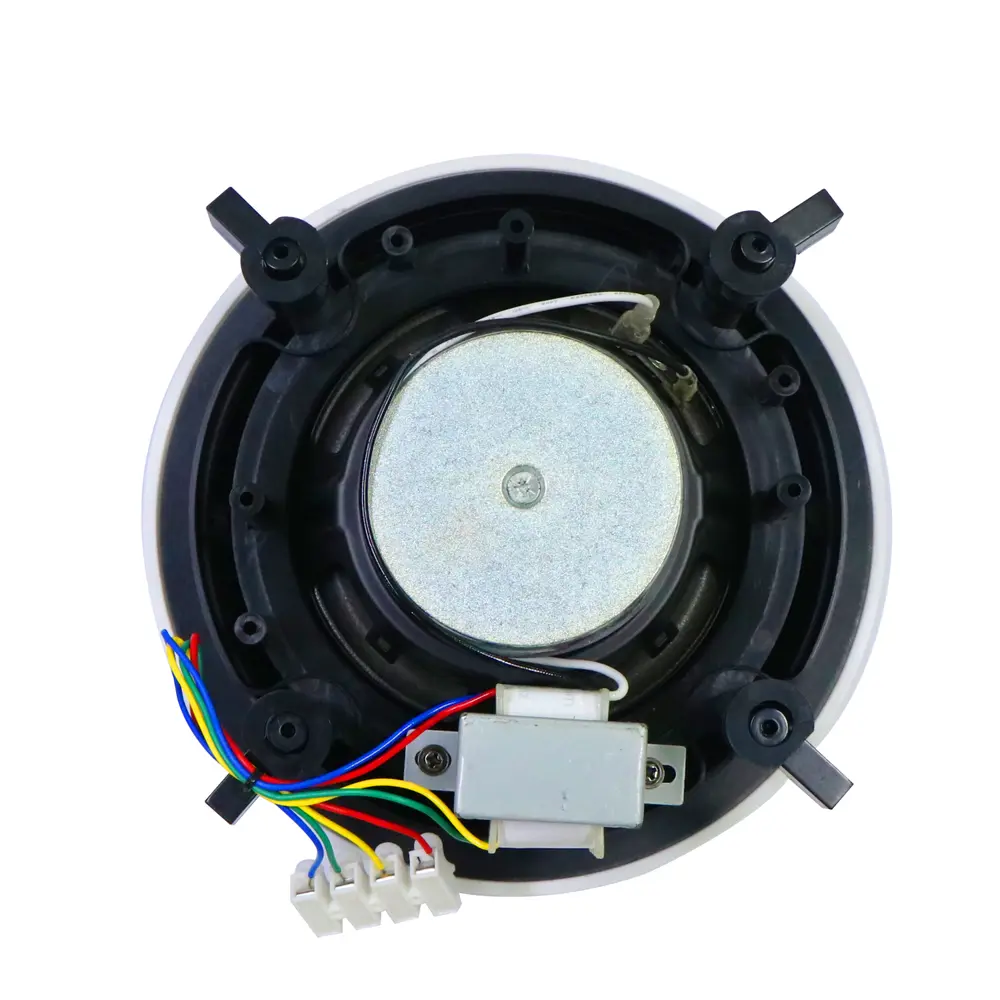

Integrated 100V / 70V Multi-Tap Transformer
Built-in multi-tap transformer supports 30W, 15W, and 7.5W taps at 100V line, enabling seamless integration across large-scale distributed commercial PA systems with uniform zone volume calibration.

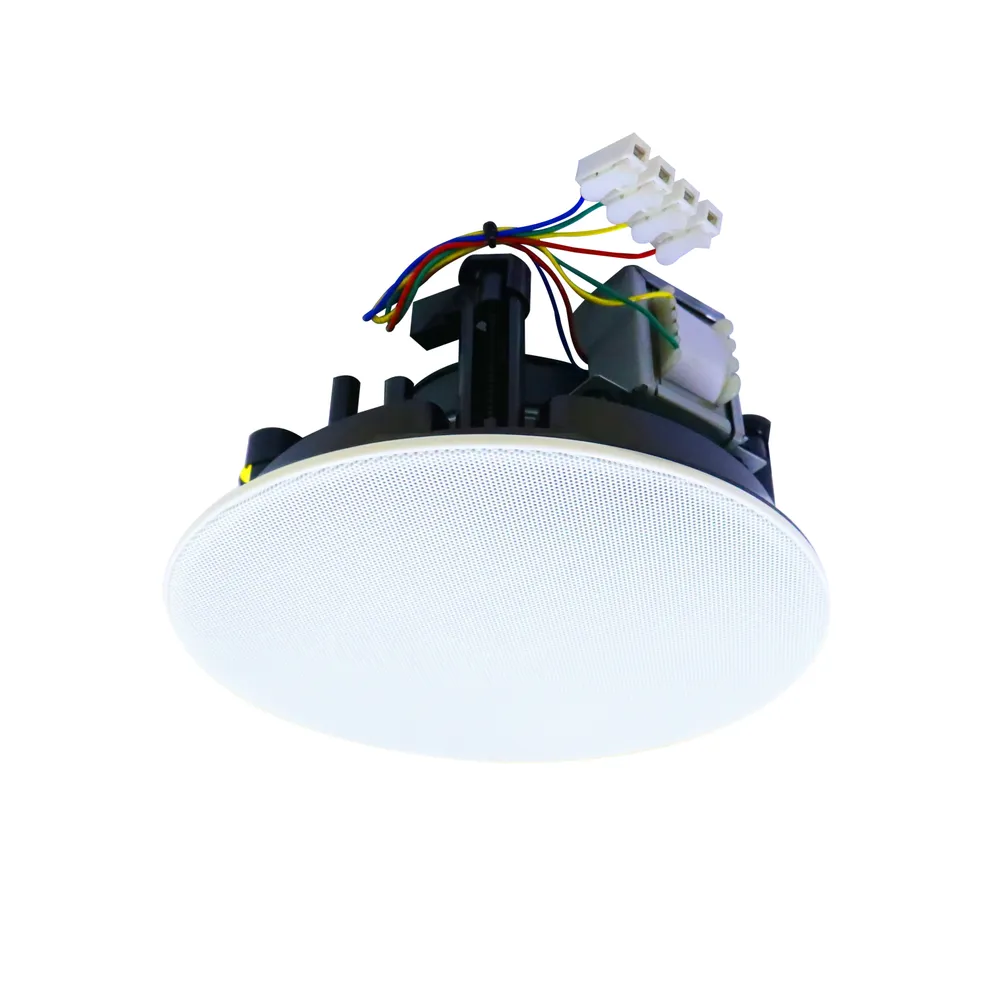

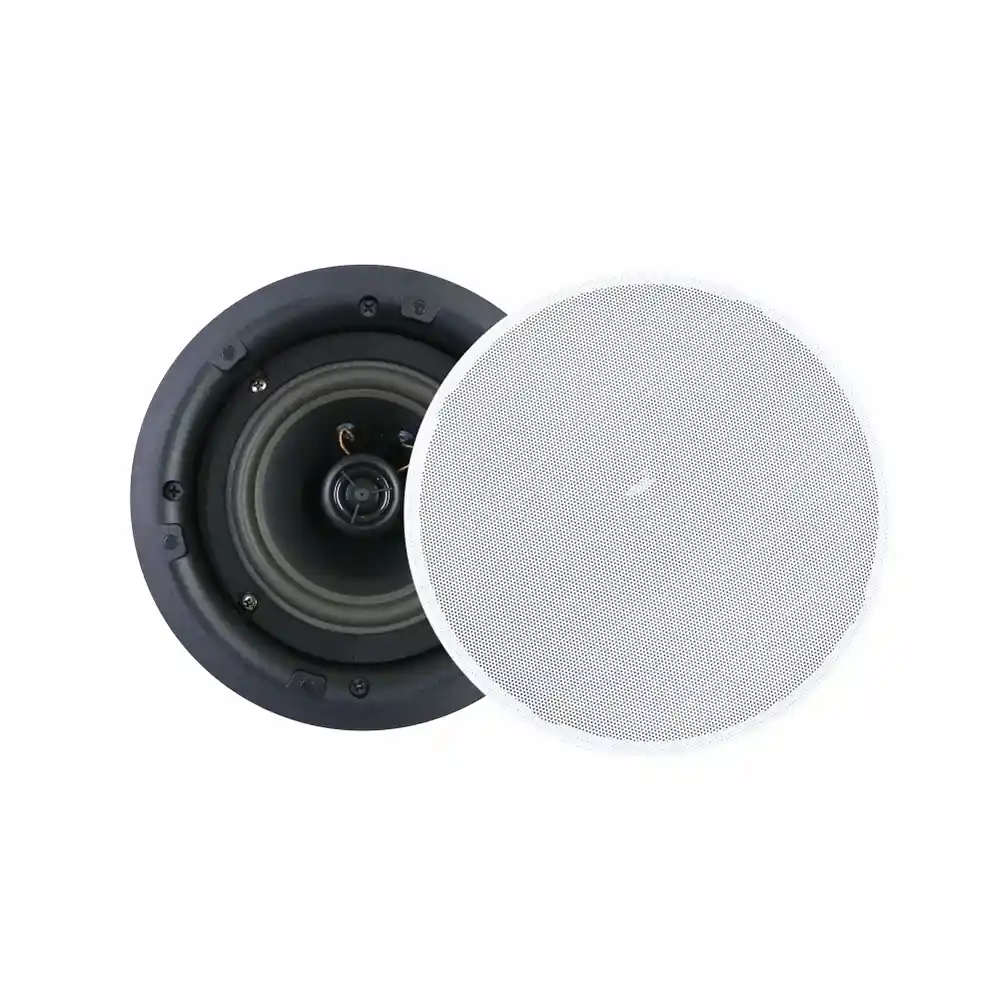

Architectural Magnetic Frameless Grille
Features an ultra-low-profile magnetic snap-on white steel grille that conceals all mounting hardware and blends flush against modern architectural ceilings without intrusive plastic bezels.
Robust ABS Baffle & Dog-Leg Clamping
Constructed with heavy-duty flame-retardant ABS baffle and 4-point rotating dog-leg mounting clamps, ensuring rapid, tool-friendly ceiling cutout installation (Ø205 mm) into drywall, gypsum, or mineral tile ceilings.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CSK-613HT |
| Speaker Type | 6.5″ 2-Way Flush Mount Ceiling Loudspeaker |
| Driver Configuration | 6.5″ Polypropylene Woofer + 1″ Silk Dome Tweeter |
| Rated Power Output (RMS) | 30W @ 100V Line |
| Power Taps (100V Line) | 30W / 15W / 7.5W |
| Frequency Response | 80 Hz – 20,000 Hz (±3 dB) |
| Sensitivity (1W / 1m) | 90 dB (±3 dB) |
| Maximum Sound Pressure Level (SPL) | 103 dB |
| Baffle Material & Finish | High-Impact Flame-Retardant ABS (Black) |
| Grille Type & Finish | Micro-Perforated Magnetic Frameless Steel Grille (White) |
| Ceiling Cutout Diameter | Ø 205 mm |
| Overall Dimensions (Dia × Depth) | Ø 235 mm × 110 mm |
| Mounting Mechanism | 4-Point Heavy-Duty Dog-Leg Screw Clamps |
| Net Weight | 1.7 kg |
Frequently Asked Questions
Is the CMX CSK-613HT suitable for commercial background music and voice announcements?
Yes. The 2-way coaxial design (6.5″ woofer + 1″ silk dome tweeter) delivers wide 80Hz–20kHz frequency response and 103dB max SPL, making it ideal for high-fidelity background music and clear voice evacuation paging in retail, corporate, and hospitality spaces.
What power taps are available on the 100V line transformer?
The onboard 100V line transformer provides multi-tap selections of 30W, 15W, and 7.5W, allowing audio engineers to balance volume levels across different room sizes and ceiling heights on standard 100V/70V commercial audio lines.
What is the ceiling cutout diameter required for installation?
The CSK-613HT requires a standard ceiling cutout diameter of Ø205 mm. The overall speaker outer diameter is Ø235 mm with a mounting depth of 110 mm.
How does the magnetic frameless grille work?
The speaker features high-strength neodymium magnets embedded in the outer ABS rim. Once the speaker is clamped into the ceiling, the white metal grille snaps flush over the baffle with zero visible bezel or mounting screws.
Can the magnetic grille be painted to match ceiling colors?
Yes. The magnetic steel grille can be spray-painted with acoustically transparent paint to match custom interior ceiling aesthetics without impacting acoustic performance.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
