CMX DA-500MT 6 Zone Commercial Mixer Amplifier with MP3/FM/Bluetooth (500W)
Original price was: Rs.59,999.00.Rs.55,937.00Current price is: Rs.55,937.00. Price Excluding TAX
► High-Power 500W RMS Commercial Public Address Output
► 6 Independent 100V Speaker Zones with Dedicated Volume Control
► Built-In Multi-Source Audio Player (MP3 / USB / FM Tuner / Bluetooth)
► 4 Microphone Inputs (Mic 1 6.35mm VOX + 3 Balanced XLR with +48V)
► Dual Line Inputs, Dedicated Emergency EMC Input & Pre-Amp Output
► Supports up to 6 Remote Zone Paging Microphones (DA-500RM)
► Complete Protection Circuitry (Short Circuit, Clip, Overload & High Temp)
► Dual AC 230V & DC 24V Power Operation in a Rugged 19″ 2U Rack Chassis
CMX Audio Solutions

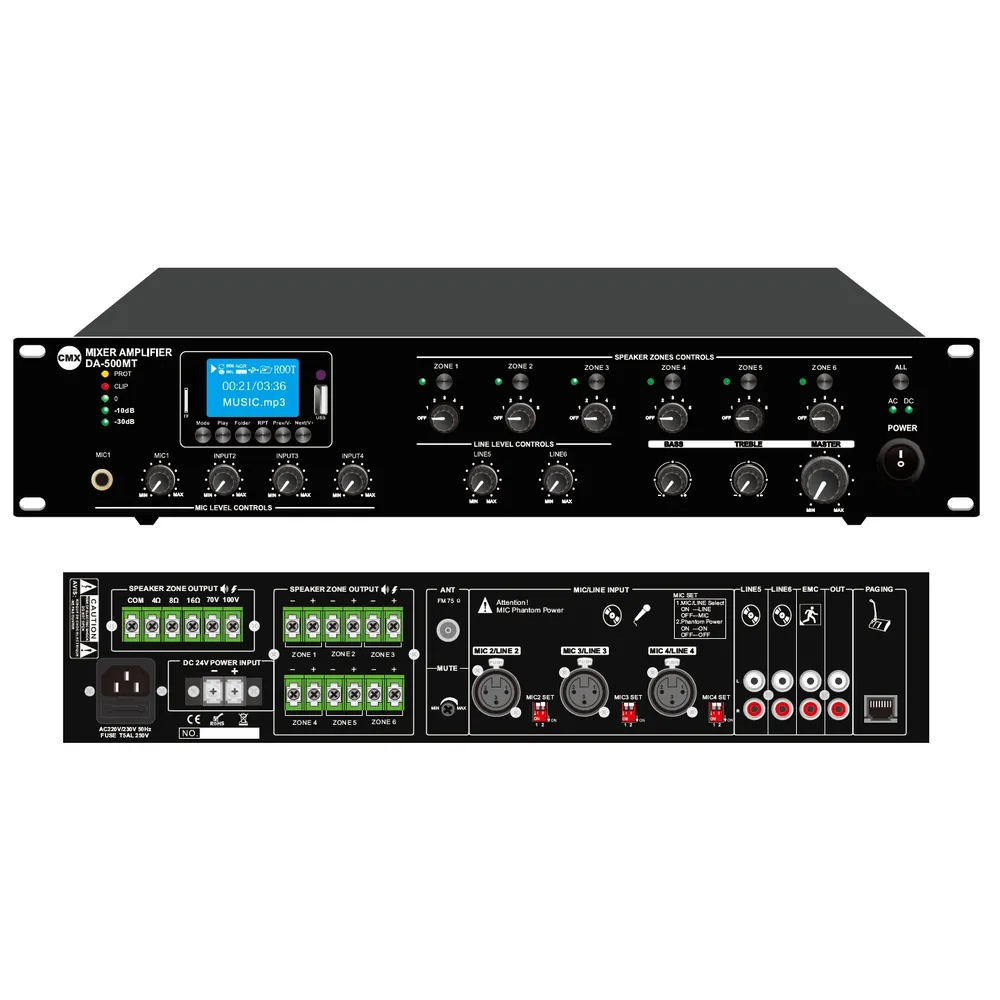

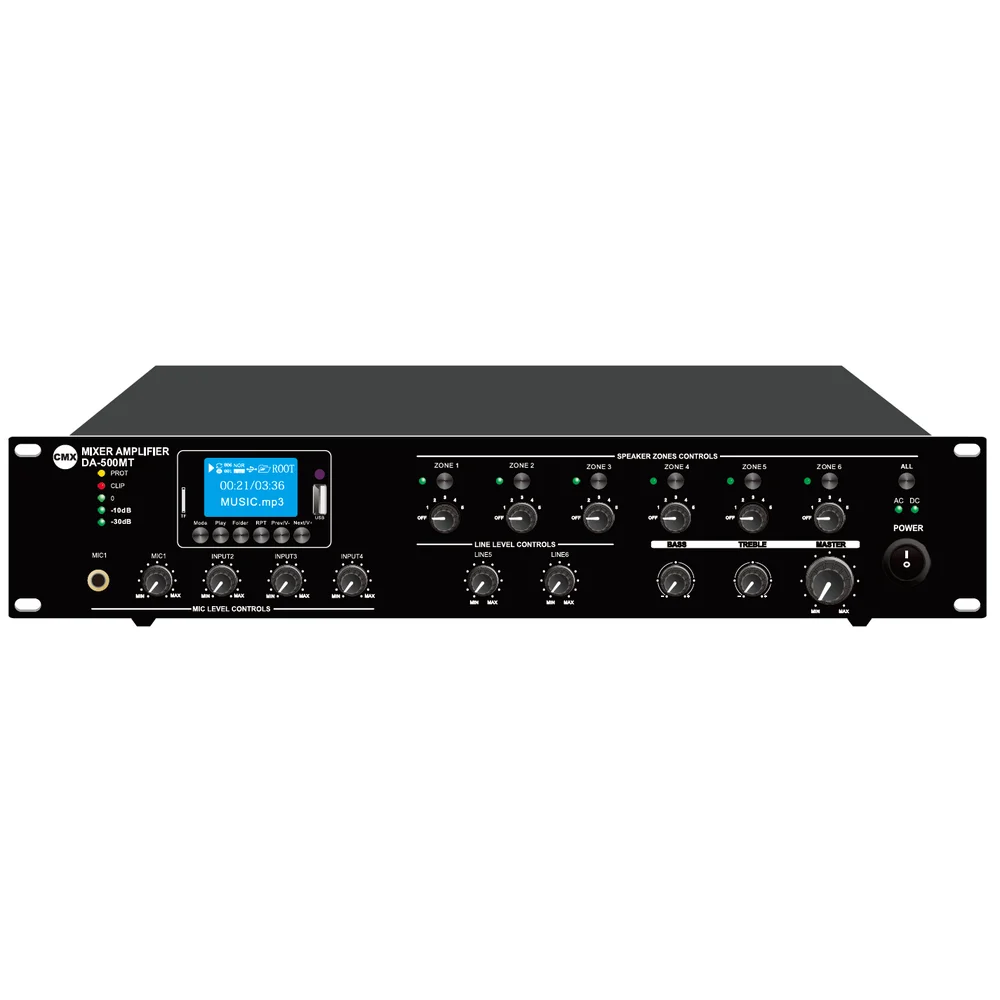

CMX DA-500MT 6 Zone Commercial Mixer Amplifier with MP3/FM/Bluetooth (500W)
500W 6-Zone 100V/70V/4-16Ω Commercial Mixer Amplifier with MP3/USB/FM/Bluetooth, 4 Mics, and Remote Zone Paging
The CMX DA-500MT is an enterprise-grade 500W 6-zone commercial mixer amplifier engineered for comprehensive public address, background music (BGM), and zone paging installations. Combining a high-power 500W Class-AB amplifier, multi-source media player (MP3/USB/FM/Bluetooth), and independent 6-zone 100V speaker routing with dedicated attenuation, the DA-500MT delivers clean, reliable audio distribution across commercial spaces including schools, hotels, supermarkets, mosques, and transportation terminals.
Ideal For
Core Engineering Features

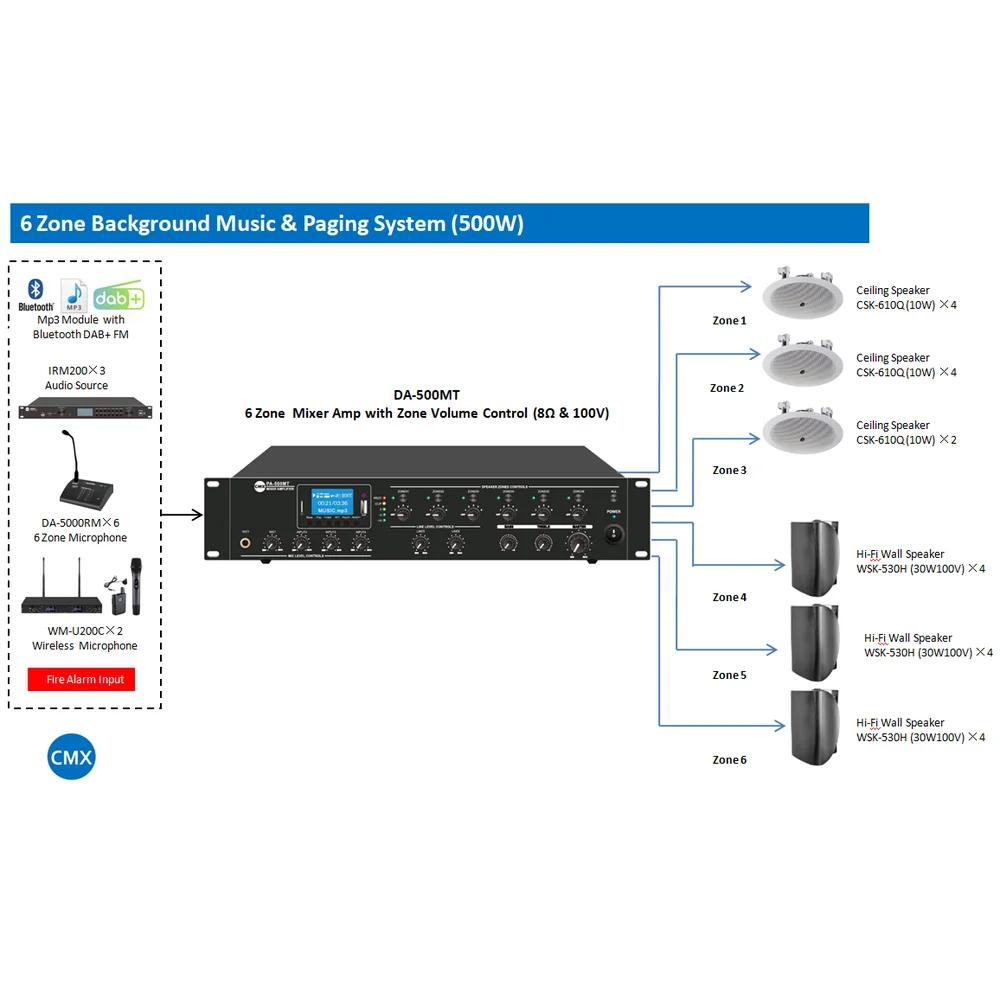

500W High-Power Multi-Zone Distribution
Delivers robust 500W RMS output supporting 6 discrete 100V speaker zones with individual step attenuation, alongside low-impedance 4-16Ω and single-zone 70V/100V speaker line options.
Integrated Digital Media & Wireless Streaming
Features an onboard multi-source digital audio player supporting USB/SD playback, FM tuner reception, and wireless Bluetooth connectivity for versatile BGM playback without external players.
Comprehensive Microphone & Priority Routing
Equipped with 4 microphone inputs including a front-panel 6.35mm Mic 1 with VOX highest priority, and 3 rear balanced XLR inputs with switchable Mic/Line sensitivity and +48V phantom power.

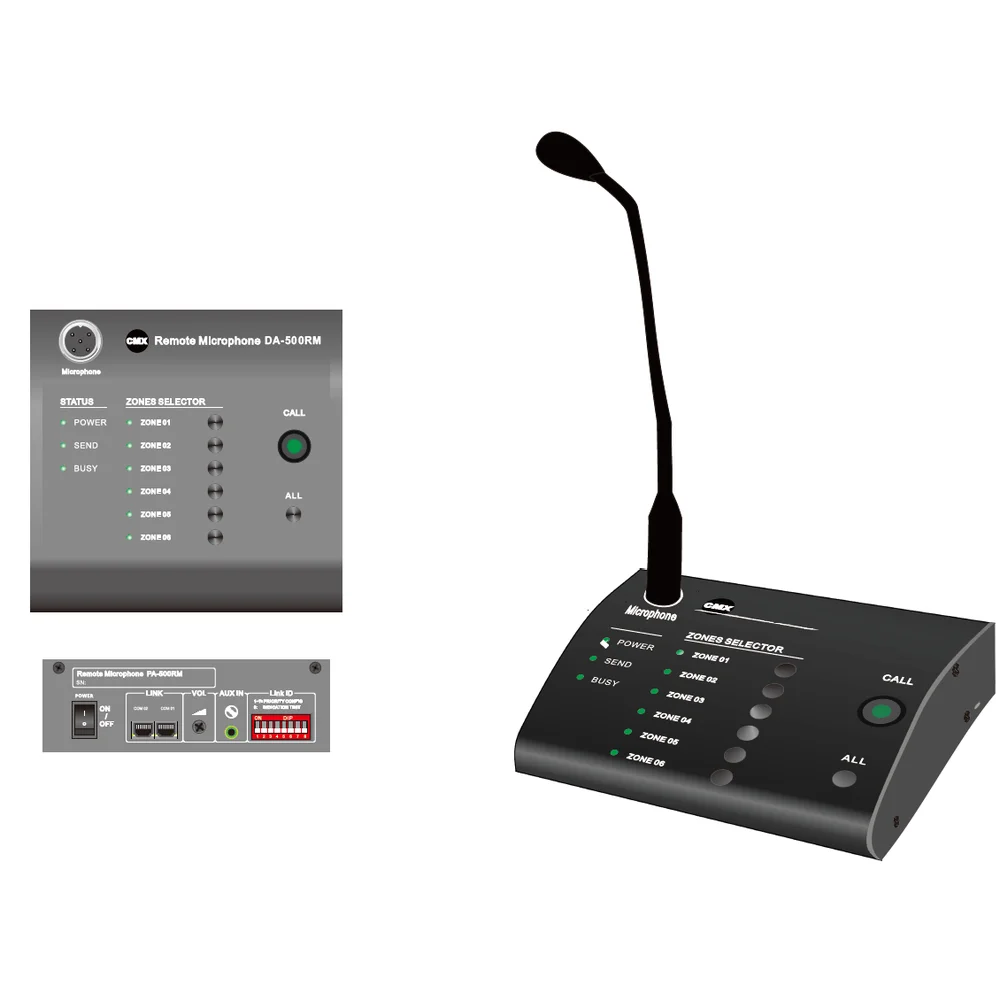

Multi-Zone Remote Paging Integration
Integrates an RJ45 communication port supporting up to 6 remote paging microphones (DA-500RM) cascaded over standard CAT6 cabling at distances up to 300 meters for individual, group, or all-call paging.
Emergency EMC & Dual Power Architecture
Includes a secondary-priority rear EMC input for automated emergency announcements and fire alarm overrides, with dual 230V AC mains and 24V DC battery backup power support.
Enterprise Protection & 19″ 2U Form Factor
Built in a rugged 19-inch 2U rack-mountable metal chassis featuring comprehensive protection against overheating, output short circuits, clipping, and overloads with visual status LED meters.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | DA-500MT |
| Brand | CMX Audio |
| Product Type | 6-Zone Commercial Mixer Power Amplifier |
| Rated Power Output | 500W RMS |
| Zone Outputs | 6 Zones of 100V with independent volume control |
| Speaker Outputs | 6-Zone 100V, Single-Zone 100V, 70V, 4-16Ω |
| Microphone Inputs | Mic 1: 6.35mm jack (2.5mV, VOX priority); Mic 2-4: Balanced XLR (2.5mV / +48V phantom power) |
| Line Inputs | Line 1-2: 250mV RCA; EMC Input: 250mV RCA |
| Frequency Response | 80Hz – 16kHz (±3dB) |
| Total Harmonic Distortion (THD) | < 0.1% at 1kHz, 1/3 rated power |
| Signal-to-Noise (S/N) Ratio | > 70dB |
| Tone Controls | Bass: ±10dB at 100Hz; Treble: ±10dB at 10kHz |
| Remote Paging Port | RJ45 (Supports up to 6 × DA-500RM paging mics up to 300m) |
| Built-in Audio Sources | MP3 Player (USB/SD), FM Tuner, Bluetooth receiver |
| Protection Circuits | High temperature, short circuit, clip limiter, and overload protection |
| Power Supply | AC 230V, 50-60Hz & DC 24V backup input |
| Power Consumption | 650W |
| Dimensions (W × D × H) | 484 × 405 × 88 mm (19-inch 2U rack mount) |
| Net Weight | 10.4 kg |
Frequently Asked Questions
What is the total rated power output of the CMX DA-500MT?
The CMX DA-500MT delivers 500 Watts RMS rated power output, making it capable of driving extensive distributed 100V ceiling speakers, wall-mount speakers, and column speakers across large commercial installations.
Can I control the volume of each of the 6 speaker zones independently?
Yes. The DA-500MT features 6 independent 100V zone speaker outputs on the rear terminal block, each regulated by its own dedicated zone volume control on the front panel.
Does the amplifier support remote paging microphones?
Yes, the amplifier includes a dedicated RJ45 communication port that connects up to 6 optional DA-500RM remote paging microphones via standard CAT6 cable at distances up to 300 meters, allowing individual zone, group zone, or all-zone paging.
What audio playback sources are integrated built-in?
The DA-500MT includes an integrated digital media module featuring MP3 playback from USB and SD card slots, a digital FM radio tuner, and a wireless Bluetooth receiver for convenient audio streaming.
Does the amplifier support emergency priority broadcasts and battery backup?
Yes. It features a high-priority 6.35mm VOX Mic 1 input, a dedicated rear EMC line input for fire alarms and emergency audio overrides, and dual-power compatibility with standard 230V AC mains and 24V DC battery backup systems.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
