CMX WSK-523SW – 5.25″ 2-Way Wall Mount Speaker
► Dual-Cone Acoustic Driver: 5.25-inch paper dual-cone driver delivers 30W RMS of clear vocal announcements and background music.
► 100V/70V Multi-Tap Transformer: Rear rotary switch selects 30W, 15W, 7.5W, 3.75W, or 8Ω bypass for flexible system integration.
► Wide Frequency Coverage: Broad 60Hz to 20kHz response provides balanced audio with articulate speech and pleasing sound reproduction.
► High Acoustic Sensitivity: Efficient 91±3dB SPL (@1W/1m) output ensures uniform commercial sound distribution with low amplifier power.
► 360° Rotatable Aluminum Bracket: Supplied mounting bracket enables 360-degree pan and tilt rotation for rapid, targeted acoustic alignment.
► Weatherproof ABS Housing: Impact-resistant ABS body with rustproof white metal grille withstands demanding indoor and sheltered outdoor environments.
► Versatile Commercial Deployment: Ideal surface loudspeaker for schools, hotels, retail stores, corporate offices, restaurants, and transport hubs.
► Clean Architectural Finish: Sleek aesthetic in neutral white blends unobtrusively into modern walls and contemporary commercial interiors.

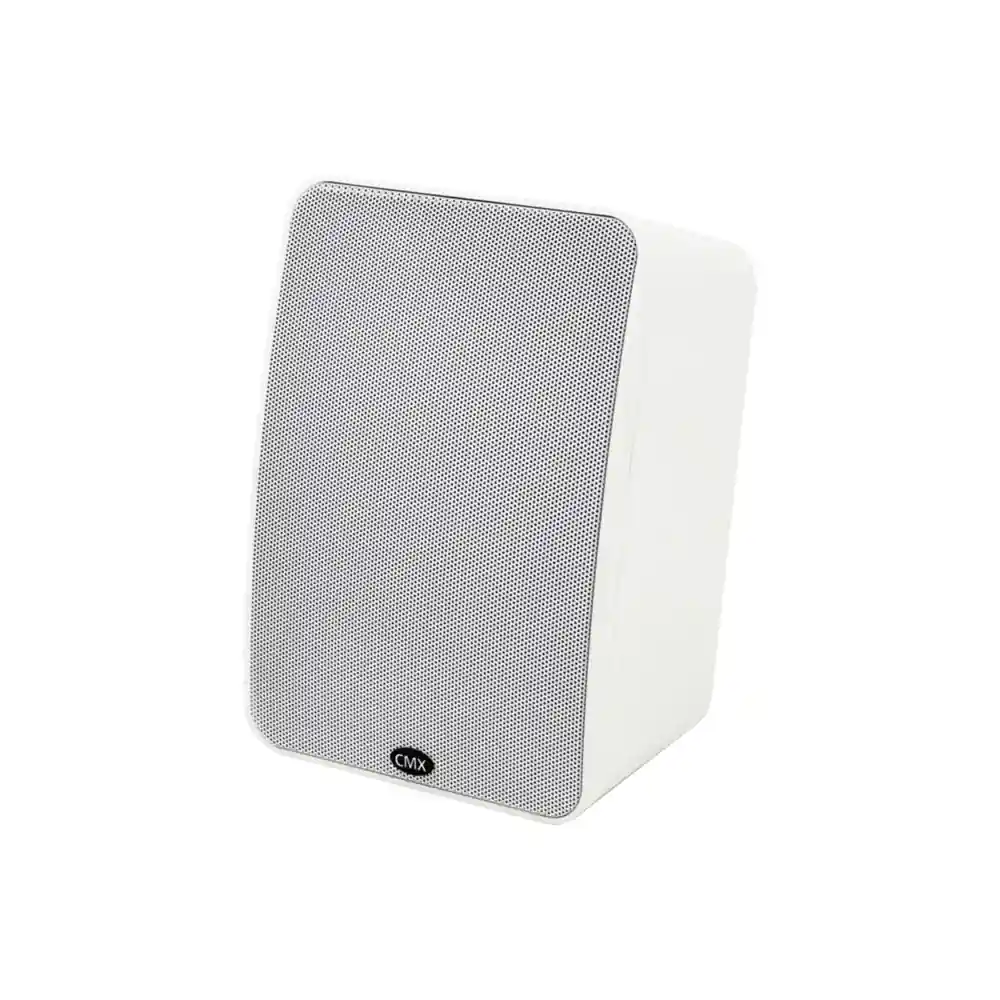

CMX WSK-523SW 5.25″ 2-Way Wall Mount Speaker
Commercial 30W Surface-Mount 2-Way Loudspeaker with 100V/70V Multi-Tap Transformer, 8Ω Bypass & 360° Rotatable Aluminum Mounting Bracket
The CMX WSK-523SW is an architectural 5.25-inch 2-way commercial wall mount speaker engineered for crystal-clear voice paging and high-fidelity background music. Featuring selectable 100V/70V power taps (30W-15W-7.5W-3.75W) and an 8Ω low-impedance bypass, this IP-rated weatherproof speaker includes a 360-degree rotatable aluminum mounting bracket for seamless indoor and covered outdoor audio installations across India.
Ideal For
Core Engineering Features
5.25″ Paper Dual-Cone Transducer
High-efficiency 5.25-inch paper dual-cone driver delivers articulate vocal projection, balanced mid frequencies, and rich background music fidelity across commercial listening zones.
100V/70V Multi-Tap & 8Ω Bypass

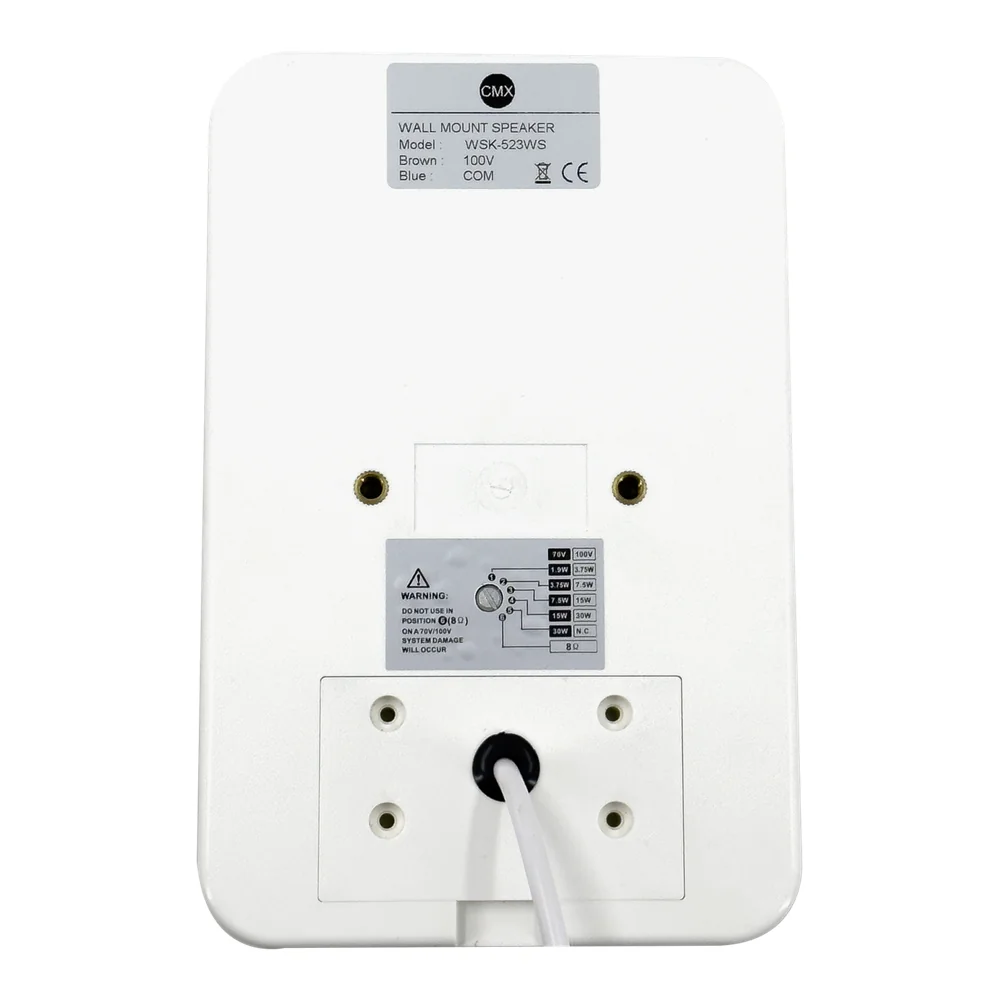

Rear-mounted rotary switch provides selectable taps (30W, 15W, 7.5W, 3.75W at 100V/70V) and direct 8-ohm bypass mode for effortless integration with commercial or low-impedance amplifiers.
360° Rotatable Aluminum Bracket
Heavy-duty aluminum multi-angle bracket facilitates fast wall or ceiling mounting with full 360-degree horizontal rotation and vertical tilt alignment for targeted acoustic coverage.
Weatherproof ABS Housing & Metal Grille
Durable UV-resistant ABS enclosure paired with a rustproof powder-coated white metal grille ensures rugged acoustic reliability in classrooms, corridors, and sheltered outdoor verandas.
High Sensitivity (91±3 dB SPL)
Optimized electroacoustic design produces a commanding 91±3dB sensitivity (@1W/1m), maximizing sound coverage and acoustic efficiency while reducing amplifier wattage load.
Discreet Architectural White Aesthetic
Contemporary streamlined profile finished in neutral architectural white blends harmoniously into corporate offices, luxury hotel lobbies, and upscale boutique interiors.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | WSK-523SW |
| Brand | CMX Audio |
| Product Type | 5.25″ 2-Way Commercial Wall Mount Loudspeaker |
| Rated Power Output | 30 Watts RMS Continuous |
| Power Tappings (@100V / 70V) | 30W, 15W, 7.5W, 3.75W & 8Ω Bypass |
| Line Input Voltage | 100V or 70V Constant Voltage Line |
| Frequency Response | 60 Hz – 20 kHz |
| Sensitivity / SPL (@1W/1m) | 91 ± 3 dB |
| Transducer / Driver Unit | 5.25″ Paper Dual-Cone Speaker Unit |
| Cabinet Material | High-Grade Impact-Resistant ABS Enclosure |
| Grille Construction | Waterproof Finish Rust-Resistant Metal Grille in White |
| Mounting Mechanism | Supplied 360° Rotatable Aluminum Mounting Bracket |
| Dimensions (H × W × D) | 230 mm × 160 mm × 135 mm |
| Net Weight | 2.5 kg |
| Available Color Variants | WSK-523SW (White) / WSK-523 (Black) / WSK-523L (8Ω Only) |
Frequently Asked Questions
What are the power tap options available on the CMX WSK-523SW?
The CMX WSK-523SW features a rear-panel rotary selector switch providing selectable taps of 30W, 15W, 7.5W, and 3.75W on standard 100V and 70V commercial lines, along with an 8-ohm bypass position for direct connection to low-impedance stereo amplifiers.
Can the WSK-523SW speaker be mounted horizontally or tilted at an angle?
Yes. The speaker includes a sturdy 360-degree rotatable aluminum mounting bracket that allows audio integrators to mount the speaker vertically or horizontally, with full horizontal rotation and tilt adjustment for precise sound targeting.
Is the CMX WSK-523SW suitable for sheltered outdoor installations?
Yes. Constructed with an impact-resistant ABS enclosure and a rustproof powder-coated metal grille, the WSK-523SW is designed for dependable performance in demanding indoor environments as well as sheltered outdoor spaces like covered verandas, corridors, and airport walkways.
Which amplifiers are compatible with the CMX WSK-523SW?
The WSK-523SW is fully compatible with all standard 70V and 100V commercial mixer amplifiers, including the CMX EA-30, EA-60, EA-120, EA-240A, and PA-6120MX matrix amplifier, as well as conventional 8-ohm audio amplifiers.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Rated Power Output | 30W RMS |
|---|---|
| Line Input | 100V, 70V, 8 Ohm |
| Power Tappings | 30W, 15W, 7.5W, 3.75W, 8 Ohm |
| Frequency Response | 60Hz – 20kHz |
| Sensitivity (1W/1m) | 91 ± 3 dB |
| Speaker Unit | 5.25" Paper Dual Cone |
| Mounting | 360° Rotatable Aluminum Bracket |
| Color | White |
