CMX WSK-640H 6.5″ 2-Way Outdoor Wall Mount Speaker (40W)
► 2-Way Driver System: 6.5-inch woofer and 1.5-inch silk tweeter deliver pristine hi-fi audio.
► High 40W Output: Delivers 40W RMS clean power for background music and clear announcements.
► Multi-Tap Transformer: 100V and 70V taps at 40W, 20W, 10W, and 5W.
► 8Ω Direct Bypass: Dedicated low-impedance setting allows direct connection to standard stereo amplifiers.
► Weather-Resistant Housing: Durable ABS enclosure with metal grille withstands harsh indoor and outdoor environments.
► High 90dB Sensitivity: Generates up to 106dB max SPL for extensive commercial coverage.
► Stainless Mounting Bracket: Includes multi-angle bracket for quick, flexible horizontal or vertical wall installation.
► Versatile Architecture: Ideal for commercial retail, hospitality, campuses, and outdoor covered walkways.
CMX Audio Solutions

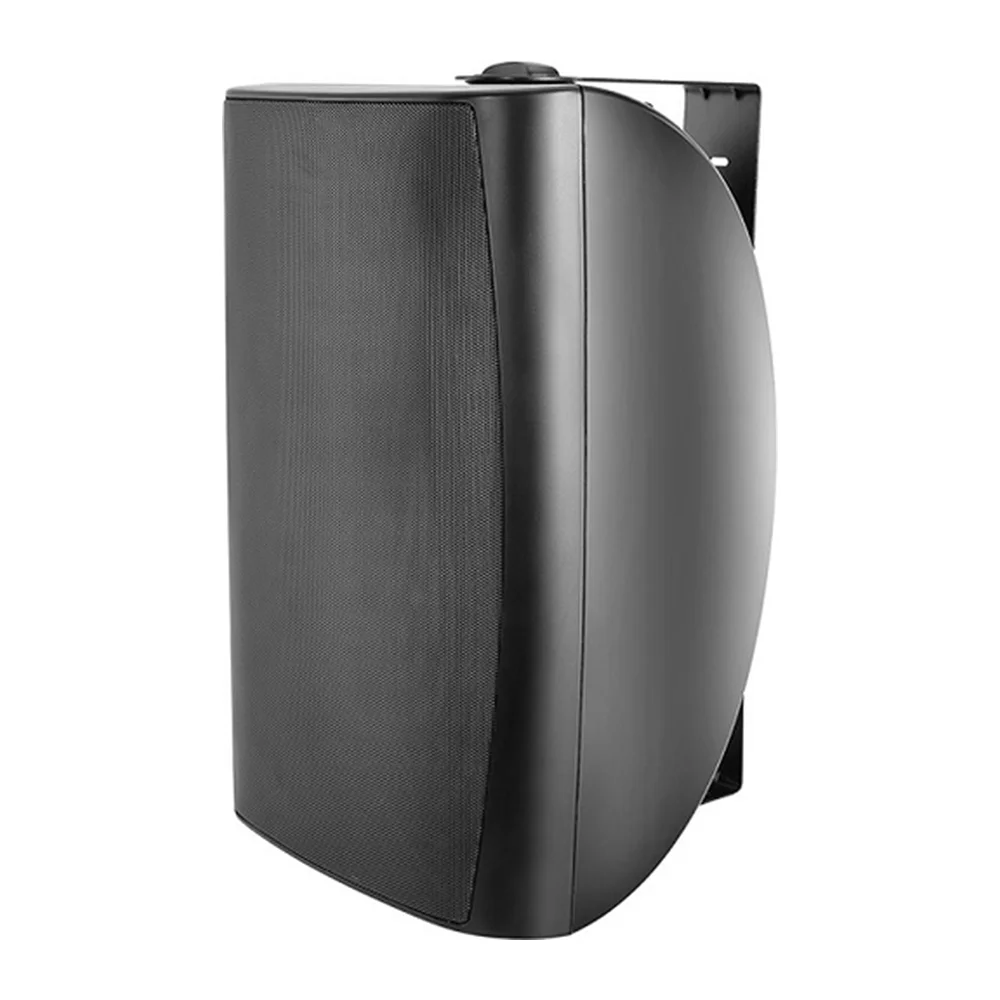

CMX WSK-640H 6.5″ 2-Way Outdoor Wall Mount Speaker (40W)
40W Commercial 2-Way Wall Mount Loudspeaker with 6.5″ Woofer, 1.5″ Silk Tweeter, 100V/70V Multi-Taps, 8Ω Bypass, and Stainless Steel Multi-Angle Bracket
The CMX WSK-640H is a premium 6.5-inch 2-way commercial wall-mount speaker delivering 40W RMS of articulate, wide-dispersion audio across commercial public address and foreground music environments. Built with a rugged weather-resistant ABS cabinet, metal grille, and stainless steel multi-angle mounting bracket, it features selectable 100V/70V transformer taps (40W, 20W, 10W, 5W) alongside an 8Ω low-impedance bypass mode for maximum system flexibility.
Ideal For
Core Engineering Features
High-Fidelity 2-Way Coaxial Acoustic Architecture
Combines a 6.5-inch long-throw polypropylene cone woofer with a 1.5-inch silk dome tweeter to reproduce rich bass response, warm mids, and crystalline vocal clarity across a broad 100Hz–20kHz frequency spectrum.
Universal 100V, 70V & 8Ω Multi-Tap Versatility
Built-in low-insertion-loss transformer supports multi-wattage taps (40W, 20W, 10W, 5W on 100V; down to 2.5W on 70V) with a direct 8-Ohm bypass position for seamless integration into distributed 100V lines or low-impedance hi-fi systems.
Heavy-Duty Weather-Resistant ABS Enclosure
Constructed from high-density, UV-resistant ABS resin finished in matte black with a rust-resistant perforated metal grille, ensuring dependable acoustic performance in covered outdoor and high-humidity indoor locations.
Wide Acoustic Dispersion & High SPL Efficiency
Engineered for 90dB (±3dB) sensitivity and a maximum SPL of 106dB with wide 120° horizontal by 90° vertical dispersion, minimizing speaker count while achieving uniform, intelligible sound coverage.

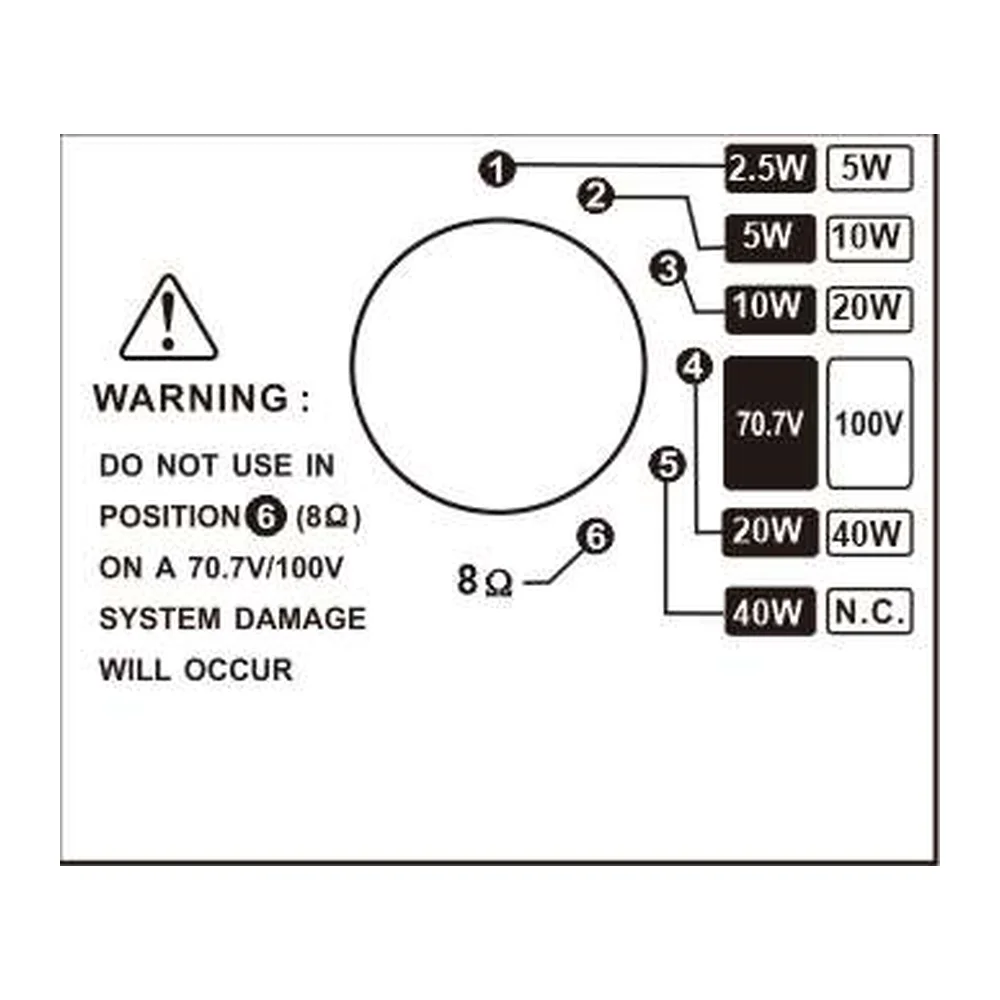

Precision Rotary Rear Tap Selector
Features an external rotary dial on the rear panel protected by a weather barrier, allowing installers to swiftly calibrate individual speaker loudness without disassembling or unmounting the cabinet.
Stainless Steel Multi-Angle Mounting Hardware
Supplied with an industrial-grade stainless steel U-bracket supporting vertical or horizontal wall and ceiling positioning with smooth tilt and swivel adjustment for targeted acoustic aiming.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX WSK-640H |
| Description | 6.5″ 2-Way Commercial Wall Mount Speaker |
| Rated Power Output | 40W RMS |
| Power Taps (100V Line) | 40W, 20W, 10W, 5W |
| Power Taps (70.7V Line) | 40W, 20W, 10W, 5W, 2.5W |
| Low-Impedance Mode | 8Ω Direct Bypass |
| Line Input Voltage | 100V, 70V & 8Ω |
| Low-Frequency Driver | 6.5″ Polypropylene Cone Woofer |
| High-Frequency Driver | 1.5″ Silk Soft-Dome Tweeter |
| Frequency Response | 100Hz – 20kHz |
| Sensitivity (1W/1m) | 90dB (±3dB) |
| Maximum Sound Pressure Level (SPL) | 106dB |
| Sound Dispersion Angle | 120° (Horizontal) × 90° (Vertical) |
| Enclosure Material | High-impact, UV-resistant ABS resin |
| Grille Material | Rust-proof powder-coated perforated metal grille |
| Color / Finish | Matte Black (WSK-640H) / Matte White optional (WSK-640HW) |
| Mounting Mechanism | Supplied heavy-duty stainless steel adjustable U-bracket |
| Mounting Orientation | Horizontal or Vertical surface mount |

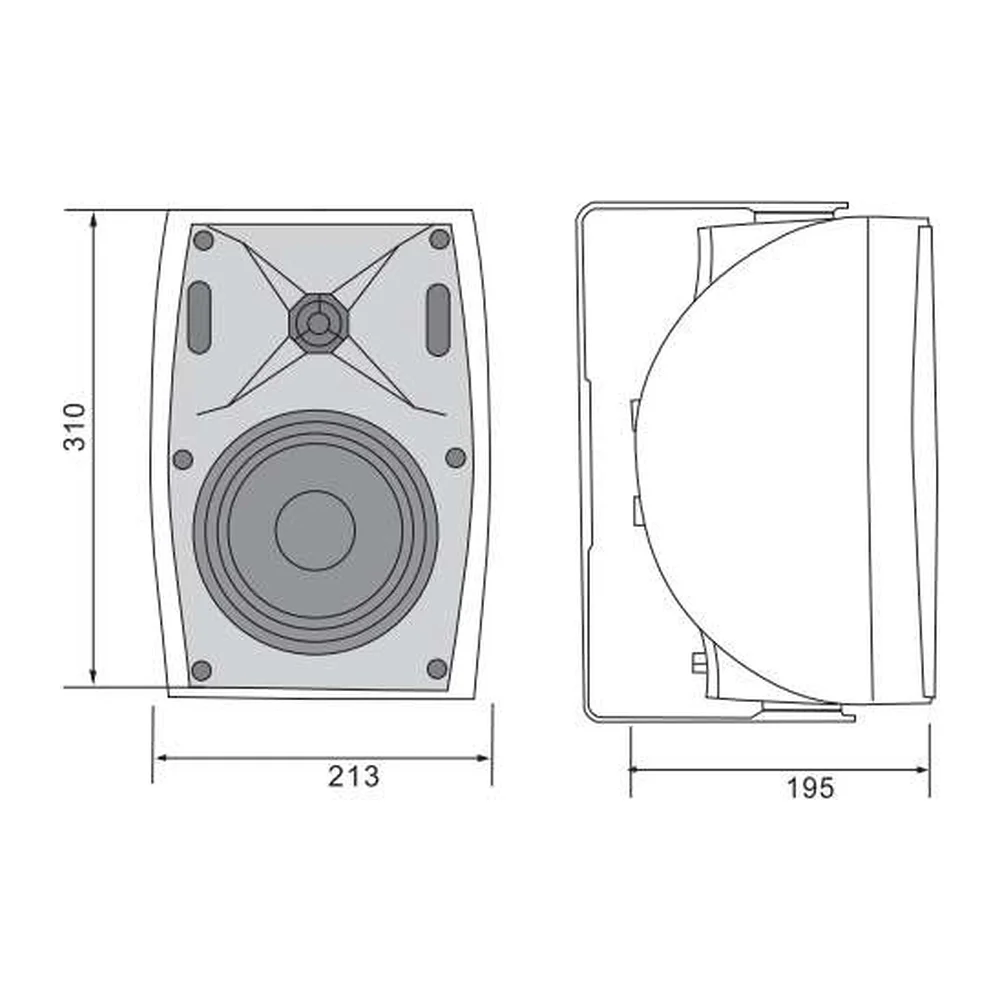

| Dimensions (H × W × D) | 310 × 213 × 195 mm |
| Net Weight | 3.7 kg |
Frequently Asked Questions
Can the CMX WSK-640H be installed in outdoor environments?
Yes. The WSK-640H is built with a rugged, UV-resistant ABS cabinet and a powder-coated rust-proof metal grille. It is engineered specifically for covered outdoor environments such as restaurant patios, perimeter walkways, building facades, and open-air transit corridors as well as indoor commercial spaces.
What is the benefit of the 8-Ohm bypass setting on the WSK-640H?
The 8-Ohm bypass setting bypasses the internal line-matching transformer, allowing direct connection to low-impedance commercial or residential stereo amplifiers. This delivers superior transient response and full dynamic range for high-fidelity foreground music playback.
How do I adjust the speaker power tap on a 100V or 70V commercial system?
A rotary power tap switch is located conveniently on the rear panel. Installers can easily switch between 40W, 20W, 10W, and 5W on 100V lines (or down to 2.5W on 70V lines) to balance volume levels across different architectural zones without taking down the speaker.
What mounting hardware is included with the CMX WSK-640H?
The speaker comes with a factory-supplied heavy-duty stainless steel U-bracket. The bracket supports both vertical and horizontal wall or ceiling mounting with full rotational tilt adjustment for precise sound targeting.
Which amplifiers are recommended to drive the CMX WSK-640H?
For 100V distributed lines, the WSK-640H seamlessly pairs with CMX commercial mixer and power amplifiers including the CMX PA-2120MX (2×120W), CMX PA-2240MX (2×240W), CMX DA-240 (240W), and CMX EA-500A (500W). Maintain a 20% safety margin when calculating total connected wattage.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Weight | 3.7 kg |
|---|---|
| Dimensions | 31.0 × 21.3 × 19.5 in |
| Brand | CMX Audio |
| Model | WSK-640H |
| Speaker Type | 2-Way Outdoor / Indoor Wall Mount Speaker |
| Rated Power Output | 40W RMS |
| 100V Power Tappings | 40W, 20W, 10W, 5W |
| 70V Power Tappings | 40W, 20W, 10W, 5W, 2.5W |
| Low-Impedance Setting | 8Ω Direct Bypass |
| Speaker Driver Units | 6.5" Polypropylene Woofer & 1.5" Silk Tweeter |
| Frequency Response | 100Hz – 20kHz |
| Sensitivity (1W/1m) | 90dB (±3dB) |
| Maximum SPL | 106dB |
| Enclosure Material | High-Impact UV-Resistant ABS Resin |
| Grille Material | Rust-Proof Perforated Metal Grille |
| Color | Black |
| Mounting Bracket | Adjustable Stainless Steel Bracket (Included) |
| Dimensions (H × W × D) | 310 × 213 × 195 mm |
| Net Weight | 3.7 kg |
