CMX AWS530W – Active Speaker
► High-Efficiency 2 × 30W RMS Power: Integrated stereo Class-D amplifier drives the active master and paired slave speaker with pristine clarity.
► 2-Way Audiophile Acoustic Architecture: 5.25″ long-throw polypropylene woofer and 1.5″ silk dome tweeter deliver wide-frequency vocal and music reproduction.
► Versatile Triple Audio Inputs: Stereo RCA line input, dedicated 6.35mm dynamic microphone jack, and 100V commercial PA line terminal for central paging override.
► Onboard Master, Mic & 2-Band EQ Controls: Rotary knobs for Master Volume, Mic Volume, Treble (±10dB), and Bass (±10dB) enable precise acoustic tailoring.
► Stereo RCA Loop Output: Daisy-chain multiple active speaker pairs across large conference rooms, classrooms, and retail spaces with zero signal degradation.
► Enterprise Commercial Protection: Advanced circuitry guards against short circuits, thermal overheating, input overloading, and clipping distortion.
► Architectural White ABS Enclosure: Heavy-duty, UV-stabilized white ABS housing with powder-coated rustproof steel grille blends into modern interiors.
► Heavy-Duty Multi-Angle Mounting Brackets: Flexible U-bracket hardware allows horizontal or vertical wall and ceiling mounting with 180° rotation.

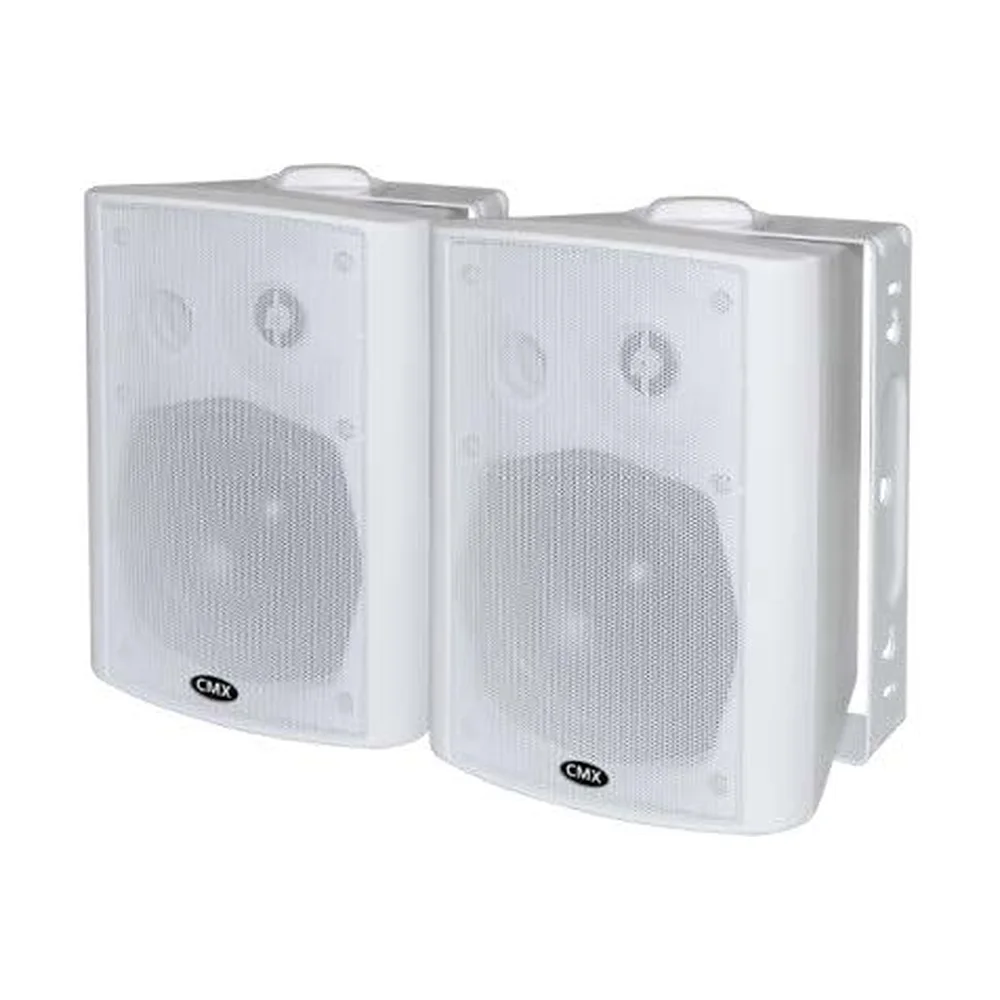

CMX AWS530W 5.25″ Active Wall-Mount Speaker System (White)
Commercial 2-Way Active Wall Speaker Set (2 × 30W RMS) with 5.25″ Woofer, 1.5″ Tweeter, Stereo RCA, Mic Input, 100V PA Line-In & Mounting Brackets in Architectural White
The CMX AWS530W is an all-in-one commercial 5.25-inch 2-way active wall-mount speaker system supplied as an active master and passive slave pair. Engineered for corporate meeting rooms, smart classrooms, lecture halls, and commercial venues, the AWS530W features an internal 2 × 30W RMS stereo Class-D amplifier driving a 5.25″ polypropylene woofer and 1.5″ silk dome tweeter. With stereo RCA line inputs, a 6.35mm dynamic microphone jack with dedicated gain, a high-voltage 100V line-in terminal for building-wide PA broadcast integration, active 2-band EQ controls, and heavy-duty adjustable mounting brackets, the AWS530W delivers studio-grade intelligibility with effortless installation.
Ideal For
✓ Corporate Boardrooms & Conference Facilities
✓ Interactive Display & IFP Classroom Audio Reinforcement
✓ Hotel Training Rooms & Executive Meeting Suites
✓ Retail Boutiques, Showrooms & High-End Cafes
✓ Medical Simulation Centers & Hospital Auditoriums
✓ Reception Areas & Visitor Experience Centers
✓ Government Briefing Rooms & Training Academies
Core Engineering Features
Integrated Stereo Class-D Power Engine (2 × 30W RMS)
Houses an internal high-efficiency Class-D amplifier delivering 2 × 30W RMS continuous power (peak 2 × 60W), powering both the active master and the connected passive slave unit without needing an external rack amplifier.
2-Way Acoustic Driver Topology
Equipped with a precision 5.25″ long-throw polypropylene woofer for punchy bass and natural midrange, coupled with a 1.5″ silk dome tweeter and precision crossover for crisp vocal clarity and crystal-clear high frequencies.
Dual-Mode Commercial Audio Inputs
Provides dual RCA stereo line inputs for PCs, media players, and interactive flat panels, along with an independent 6.35mm dynamic microphone input with dedicated volume control for direct lecture amplification.
Central 100V PA Line Input Terminal
Unique commercial feature allows direct connection to a campus-wide 100V public address or voice alarm system via Phoenix terminal, allowing local room speakers to seamlessly broadcast emergency alerts.
Onboard 2-Band EQ & Stereo Line Loop Output
Rear panel rotary potentiometers provide independent Bass (±10dB) and Treble (±10dB) acoustic tone shaping, alongside dual RCA line outputs to daisy-chain additional active speaker pairs across larger rooms.
Architectural White ABS Housing with Multi-Angle Mounts
Constructed from robust, UV-resistant ABS in architectural white with powder-coated steel grilles, accompanied by heavy-duty 180° multi-angle U-brackets for rapid horizontal or vertical surface installation.
Acoustic Coverage & Room Dimension Guide
The CMX AWS530W produces a continuous acoustic output of 102dB SPL peak at 1 meter per speaker pair. To achieve target STI (Speech Transmission Index) speech clarity of >0.65 in typical corporate and educational acoustic environments, follow these room dimension guidelines:
| Application Environment | Recommended Room Area | Seating Capacity | Acoustic Coverage (Average SPL) |
|---|---|---|---|
| Executive Boardrooms & Meeting Rooms | 200 – 450 sq.ft (18 – 42 m²) | 10 – 20 Persons | 75 – 82 dB (Clear Conferencing) |
| Smart Classrooms & Training Halls | 400 – 800 sq.ft (37 – 74 m²) | 30 – 50 Students | 78 – 85 dB (High Speech Clarity) |
| Lecture Theatres & Large Seminar Rooms | 800 – 1,500 sq.ft (2 Pairs Daisy-Chained) | 60 – 100 Attendees | 82 – 88 dB (Uniform Distribution) |
| Retail Boutiques & Dining Lounges | 300 – 600 sq.ft (28 – 56 m²) | Background Ambiance | 68 – 74 dB (Hi-Fi Ambiance) |
Source & AV Ecosystem Compatibility
As an authorized commercial AV distributor and system integrator in India, ProjecXive engineers integrated multimedia audio ecosystems. The CMX AWS530W pairs seamlessly with:
Interactive Displays & IFPs
Direct 3.5mm-to-RCA connection from interactive touch panels, providing massive volume upgrades over weak built-in display speakers.
Wireless Microphones & Podiums
Direct 6.35mm connection for handheld, lapel, or collar wireless microphone receivers for teacher and presenter voice amplification.
Central 100V Public Address Lines
Connects directly into building-wide commercial 100V PA networks for general announcements, bell timers, and voice alarm broadcasts.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX AWS530W |
| Description | 5.25″ Active Wall-Mount Commercial Speaker System (Pair: Active Master + Passive Slave) |
| Rated Power Output | 2 × 30W RMS (Max 2 × 60W @ 8Ω) |
| Low-Frequency Transducer | 5.25″ Long-Throw Polypropylene Woofer with Rubber Surround |
| High-Frequency Transducer | 1.5″ Silk Dome Tweeter |
| Frequency Response | 80Hz – 20,000Hz (±3dB) |
| Sensitivity (1W/1m) | 89 dB ± 2 dB |
| Maximum Sound Pressure Level (SPL) | 102 dB Peak |
| Audio Inputs | AUX Line In: Stereo RCA (500mV, 10kΩ); MIC In: 6.35mm (1/4″) Jack; 100V Commercial PA Line Terminal |
| Audio Outputs | Stereo RCA Line Out (Loop Through); 8Ω Phoenix Euroblock Terminal to Slave Speaker |
| Tone & Volume Controls | Master Volume, AUX Volume, Mic Volume, Treble (±10dB @ 10kHz), Bass (±10dB @ 100Hz) |
| Amplifier Topology | High-Efficiency Stereo Class-D Internal Amplifier |
| Total Harmonic Distortion (THD) | < 0.5% at 1kHz rated output |
| Signal-to-Noise Ratio (S/N) | Line In ≥ 85 dB; Mic In ≥ 72 dB |
| Protection Circuitry | Thermal cutoff, short circuit, DC overload, and dynamic clip limiter |
| Enclosure Material | High-Impact ABS Resin with Powder-Coated Rustproof Steel Grille |
| Finish & Color | Architectural White (RAL 9016) |
| Mounting Hardware | Dual 180° Multi-Angle Heavy-Duty U-Mounting Steel Brackets (Included) |
| Operating Power Supply | Universal AC 110V – 240V, 50/60 Hz |
| Power Consumption | 80W Maximum |
| Dimensions per Speaker (W × D × H) | 185 × 190 × 310 mm |
| Net Weight (Pair Set) | 4.7 kg (Active Master: 2.8 kg; Passive Slave: 1.9 kg) |
Frequently Asked Questions
What is included in the CMX AWS530W active speaker package?
The CMX AWS530W system is supplied as a complete stereo pair set. It includes 1 × Active Master Speaker containing the built-in 2 × 30W stereo amplifier and rear control panel, 1 × Passive Slave Speaker, 2 × heavy-duty multi-angle U-mounting wall brackets with fixing hardware, an AC power cable, and an inter-speaker link cable.
How does the 100V PA line input operate alongside local audio sources?
The AWS530W features a dedicated 100V commercial input terminal on its rear panel. This allows the active speaker pair to be integrated directly into a building-wide 100V public address or emergency announcement network. When a high-voltage broadcast is triggered from the central amplifier, the AWS530W faithfully reproduces the emergency paging announcement across the room.
Can I connect a wireless microphone directly into the speaker without a mixer?
Yes. The active master speaker has a dedicated 6.35mm (1/4″) dynamic microphone input with its own independent volume control knob. You can directly plug in a handheld dynamic microphone or the audio output receiver of a wireless lapel/collar mic system, eliminating the need for an external audio mixing console.
How do I daisy-chain multiple AWS530W pairs for a large classroom or hall?
The master speaker is equipped with dual RCA stereo Line Outputs (Loop Through). By running a shielded stereo RCA audio cable from the Line Out of the first master speaker to the Line In of a second AWS530W master speaker, you can cleanly link 2, 3, or more pairs across large venues without signal loss.
What is the difference between CMX AWS530 and CMX AWS530W?
The ‘W’ suffix designates the Architectural White finish (AWS530W), specifically requested by architects and interior consultants for bright conference rooms, classrooms, and clinical spaces. The standard AWS530 model features an industrial Matte Black enclosure. Both models share identical acoustic performance, drivers, and amplification specs.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Model | CMX AWS530W |
|---|---|
| Color | Architectural White |
| System Type | 5.25" 2-Way Active Wall-Mount Speaker System Pair (Active Master + Passive Slave) |
| Rated Power Output | 2 × 30W RMS (Max 2 × 60W @ 8Ω) |
| Woofer | 5.25" Long-Throw Polypropylene Woofer with Rubber Surround |
| Tweeter | 1.5" Silk Dome Tweeter |
| Frequency Response | 80Hz – 20,000Hz (±3dB) |
| Sensitivity | 89 dB ± 2 dB (1W/1m) |
| Max SPL | 102 dB Peak |
| Audio Inputs | Stereo RCA Line In, 6.35mm (1/4") Dynamic Mic In, 100V Commercial PA Line In |
| Audio Outputs | Stereo RCA Line Out (Loop Through), 8Ω Phoenix Euroblock Output to Slave Speaker |
| Controls | Master Volume, AUX Volume, Mic Volume, Treble (±10dB), Bass (±10dB), Power Switch |
| Protection | Thermal Cutoff, Overload, Short-Circuit, Clip Limiter |
| Enclosure | Heavy-Duty Impact-Resistant ABS Resin with Powder-Coated Steel Grille |
| Mounting Hardware | 180° Multi-Angle U-Brackets (Included) |
| Power Supply | Universal AC 110V – 240V, 50/60Hz |
| Dimensions | 185 × 190 × 310 mm per speaker |
| Net Weight | 4.7 kg (Pair Set) |
