CMX WSK-610C – 6 inch Wall Mount Speaker
► 10W RMS Power: Dual 6W and 10W power taps for distributed background music and paging.
► 6-Inch Full-Range Driver: Paper cone unit delivers natural vocal reproduction and clear acoustic dispersion.
► Multi-Voltage Line Input: Integrated transformer supports 100V and 70V commercial public address systems.
► High 92 dB Sensitivity: Produces high sound output with minimal amplifier wattage for energy efficiency.
► Robust ABS Housing: Durable white ABS resin enclosure with matching protective metal front grille.
► Quick Keyhole Mounting: Rear screw hanging hole enables swift, secure wall and pillar installation.
► Clean Architectural Profile: Sleek box profile blends seamlessly into educational, corporate, and healthcare interiors.
► Commercial PA Applications: Ideal for classrooms, office corridors, retail shops, hotels, and airport terminals.
CMX Commercial Audio

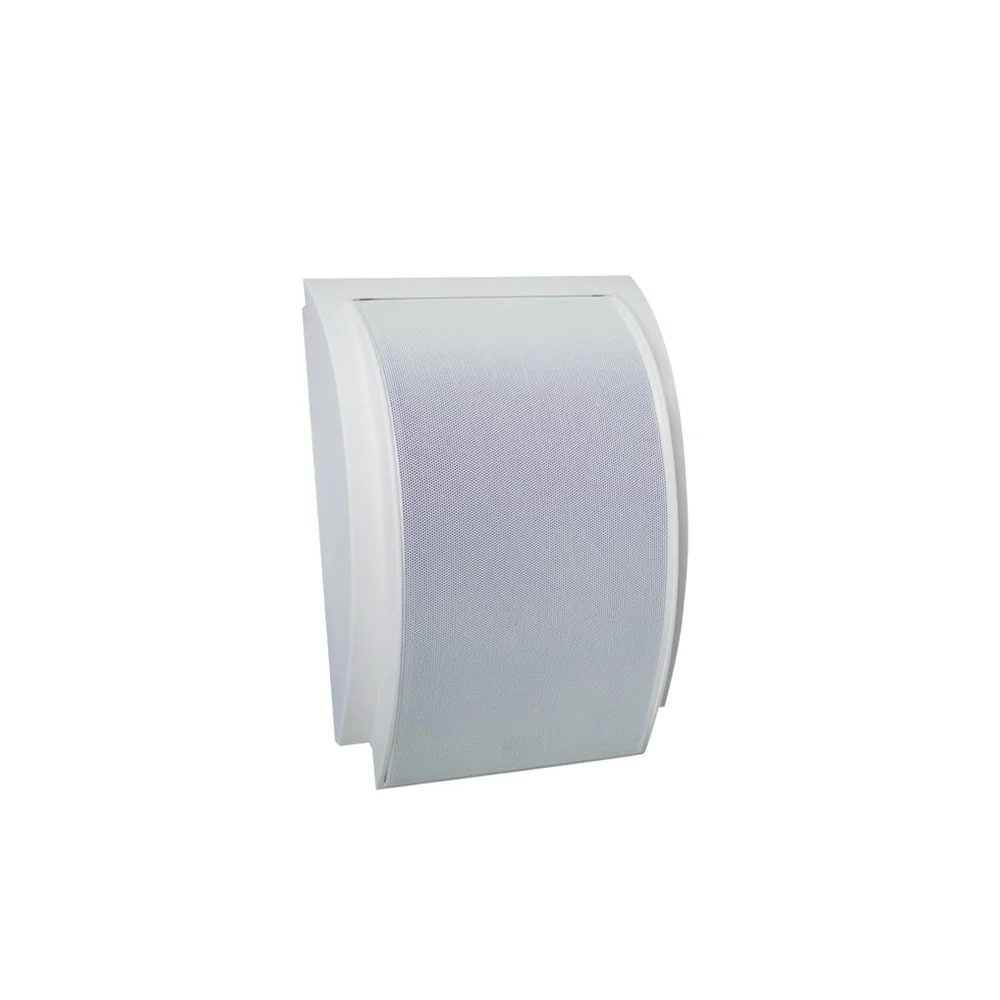

CMX WSK-610C – 6 inch Wall Mount Speaker
6″ Full-Range Commercial Surface Wall Mount Speaker 10W with Built-in 100V/70V Transformer (6W-10W Taps), High 92 dB Sensitivity, White ABS Enclosure, Steel Grille, and Keyhole Mounting
The CMX WSK-610C is a high-efficiency 6-inch commercial wall mount box speaker engineered for public address paging, voice evacuation messaging, and background music (BGM) in educational, commercial, and hospitality venues. Featuring a precision 6-inch full-range paper cone transducer with an impressive 92 dB acoustic sensitivity, the WSK-610C reproduces articulate vocal announcements and smooth ambient music while drawing minimal amplifier power. Equipped with an internal 100V/70V line transformer offering selectable 6W and 10W taps, a clean white ABS impact-resistant cabinet, a powder-coated steel front grille, and an integrated rear keyhole hanging slot for quick surface mounting.
Ideal For
✓ Corporate Office Corridors & Administrative Rooms
✓ Hospital Patient Wards, Clinics & Waiting Areas
✓ Hotel Corridors, Back-of-House Areas & Lobbies
✓ Retail Boutiques, Grocery Stores & Supermarkets
✓ Airport Concourses, Bus Terminals & Railway Stations
Core Engineering Features
6-Inch Full-Range Transducer
Precision-engineered 6″ paper cone speaker delivers balanced acoustic response from 150 Hz to 15 kHz, maximizing speech clarity for vital public address announcements.
High 92 dB Sound Output Sensitivity
A high acoustic sensitivity rating of 92 dB (1W/1m) allows the speaker to produce high sound pressure levels with minimal wattage draw, reducing commercial amplifier loading.
Dual 100V & 70V Power Taps
Internal multi-tap line transformer provides selectable 6W and 10W connections, allowing system engineers to optimize zone acoustic volume across distributed commercial audio lines.
Impact-Resistant ABS Enclosure
Molded in heavy-duty commercial ABS resin in architectural white, offering structural rigidity, resonance dampening, and long-term durability in high-traffic commercial hallways.
Powder-Coated Steel Protective Grille
Perforated steel mesh grille finished with anti-rust powder coating shields internal cone elements against accidental physical impacts, vandalism, and airborne dust particles.
Quick Keyhole Surface Mounting
Features an integrated rear keyhole screw slot allowing rapid, flush surface mounting on brick, concrete, drywall, or wooden columns without cumbersome bracket assemblies.
Acoustic Coverage & 100V Line Tap Planning Matrix
To maintain crystal-clear vocal paging and pleasant background music levels without amplifier distortion, commercial audio engineers configure the WSK-610C using standard spacing metrics:
| Installation Environment | Selected 100V Tap | Recommended Spacing | Average Sound Level (SPL) |
|---|---|---|---|
| Hospital Wards & Quiet Office Corridors | 6W Tap | 8 to 10 Meters Apart | 82 dB (Soft BGM & Clear Chime) |
| Classrooms, Training Rooms & Clinics | 6W Tap | 1 to 2 Units per 500 sq.ft | 85 dB (High Speech Clarity) |
| Retail Stores, Supermarkets & Hotel Halls | 10W Tap (Full Power) | 6 to 8 Meters Apart | 88 dB (Dynamic Background Audio) |
| Airport Waiting Lounges & Train Platforms | 10W Tap (Full Power) | 5 to 7 Meters Apart | 92 dB (Authoritative Voice Evac) |
Amplifier Matching & System Compatibility
As an authorized commercial AV distributor in India, ProjecXive engineers fully matched end-to-end commercial audio systems paired seamlessly with the CMX WSK-610C:
Wi-Fi Streaming Mixer Amplifiers
Power up to 8 units on 6W taps with smart LinkPlay mobile app, Spotify, and Bluetooth streaming.
Dual-Zone Commercial Amplifiers
Partition audio and paging independently across office halls and classroom zones.
High-Power 120W Streaming Systems
Drive up to 16 WSK-610C speakers continuously with 24V DC emergency failover support.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CMX WSK-610C |
| Description | 6″ Commercial Full-Range Wall Mount Box Speaker |
| Rated Power Output | 6W – 10W RMS |
| Power Taps | 6W and 10W @ 100V |
| Line Input Voltage | 100V or 70V commercial line |
| Transducer Configuration | 6″ Full-Range Treated Paper Driver Unit |
| Frequency Response | 150 Hz – 15 kHz |
| Sensitivity (SPL @ 1W/1m) | 92 dB (High Efficiency) |
| Enclosure Material | Heavy-Duty Flame-Retardant ABS Enclosure (White) |
| Front Grille | Perforated Powder-Coated Metal Mesh Grille in White |
| Mounting Mechanism | Rear Keyhole Screw Hanging Slot for Flush Wall Mounting |

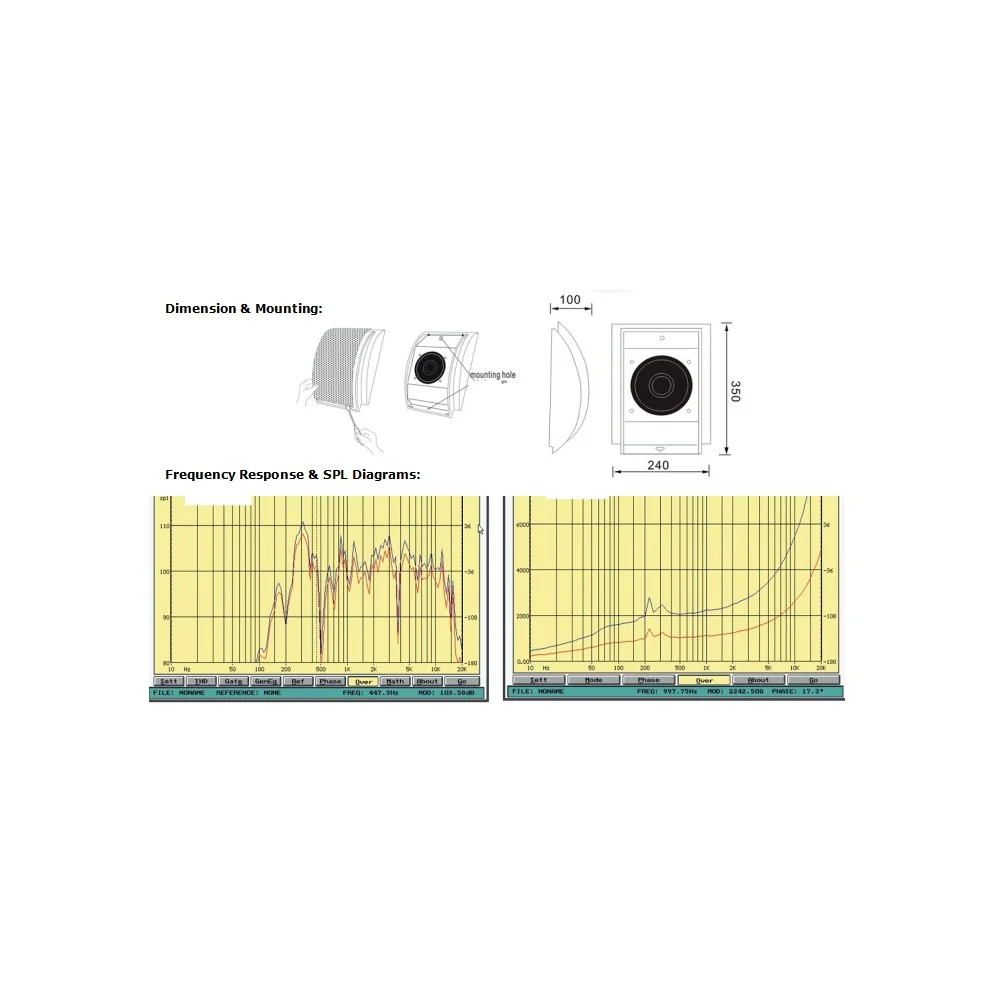

| Dimensions (H × W × D) | 350 × 240 × 100 mm |
| Net Weight | 1.7 kg |
| Standard Finish | Architectural Neutral White |
| Certifications | CE, RoHS Certified Commercial Audio Equipment |
Frequently Asked Questions
How is the CMX WSK-610C mounted on a wall or pillar?
The CMX WSK-610C features an integrated rear keyhole hanging slot. You simply drive a single wall anchor screw into the target surface (leaving the screw head slightly proud) and slide the keyhole slot directly over the screw head for an effortless, sturdy, and flush architectural mount.
Can the WSK-610C connect to standard 100V line amplifiers?
Yes. The speaker features an internal high-efficiency commercial line matching transformer designed for both 100V and 70V distributed sound lines. Taps at 6W and 10W allow system designers to daisy-chain numerous speakers across large commercial building facilities with zero impedance mismatching.
Why is the 92 dB sensitivity rating important for large venues?
A sensitivity of 92 dB @ 1W/1m means the speaker produces significant acoustic volume even with small amplifier wattage. This allows cost-effective central mixer amplifiers (such as 60W or 120W models) to comfortably drive large networks of 10 to 20 speakers across sprawling school corridors or hospital floors.
Is the WSK-610C suitable for voice alarm and evacuation announcements?
Yes. The 6-inch paper cone transducer is specifically voiced for optimal speech transmission index (STI) between 150 Hz and 15 kHz, ensuring paging announcements and emergency voice evacuation messages remain crisp, intelligible, and easy to understand throughout noisy hallways.
What wire gauge is recommended for wiring the WSK-610C?
For standard commercial 100V line cable runs up to 100 meters, 2-core 1.0 sq.mm to 1.5 sq.mm oxygen-free copper speaker wire is recommended. The high voltage ensures minimal line loss over long indoor distances.
Engineer Your Perfect Commercial Audio & Visual Environment
Contact our AV specialists for professional product selection, system integration, and turnkey installation support.
| Brand | CMX Audio |
|---|---|
| Model | CMX WSK-610C |
| Product Type | 6-Inch Commercial Surface Wall Mount Speaker |
| Rated Power Output | 6W – 10W RMS |
| Power Taps | 6W, 10W @ 100V |
| Line Input Voltage | 100V or 70V Constant-Voltage |
| Transducer Configuration | 6-inch Full-Range Treated Paper Driver Unit |
| Frequency Response | 150 Hz – 15 kHz |
| Sensitivity (SPL @ 1W/1m) | 92 dB (High Efficiency) |
| Enclosure Material | Impact-Resistant ABS Engineering Plastic |
| Grille Material | Perforated Powder-Coated Metal Mesh Grille |
| Mounting Mechanism | Rear Keyhole Screw Hanging Slot for Flush Surface Mounting |
| Installation Type | Wall Mount / Pillar Mount / Column Mount |
| Dimensions (H x W x D) | 350 x 240 x 100 mm |
| Net Weight | 1.7 kg |
| Color | White (Neutral Commercial Architectural Finish) |
| Application Environment | Indoor Public Address, Background Music, Schools, Offices, Hospitals, Airports |
| Connection Type | Screw Terminal / Lead Wire with 100V Transformer |
| Compliance & Certifications | CE, RoHS Certified Commercial Audio Equipment |
| Mounting Orientation | Vertical Surface Mount |
